2574-5B1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2574-5B1

2574-5B1: Description5 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP; CategoryThe connector; File Size363KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

2574-5B1 Overview

5 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP

2574-5B1 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Total number of contacts	5
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	2574
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	SINGLE PART CARD EDGE CONN
Connector male and female	FEMALE
Installation type	CABLE
Number of load rows	1
Terminal type	CRIMP
UL flammability code	94V-2

Preview

Download Datasheet

View All

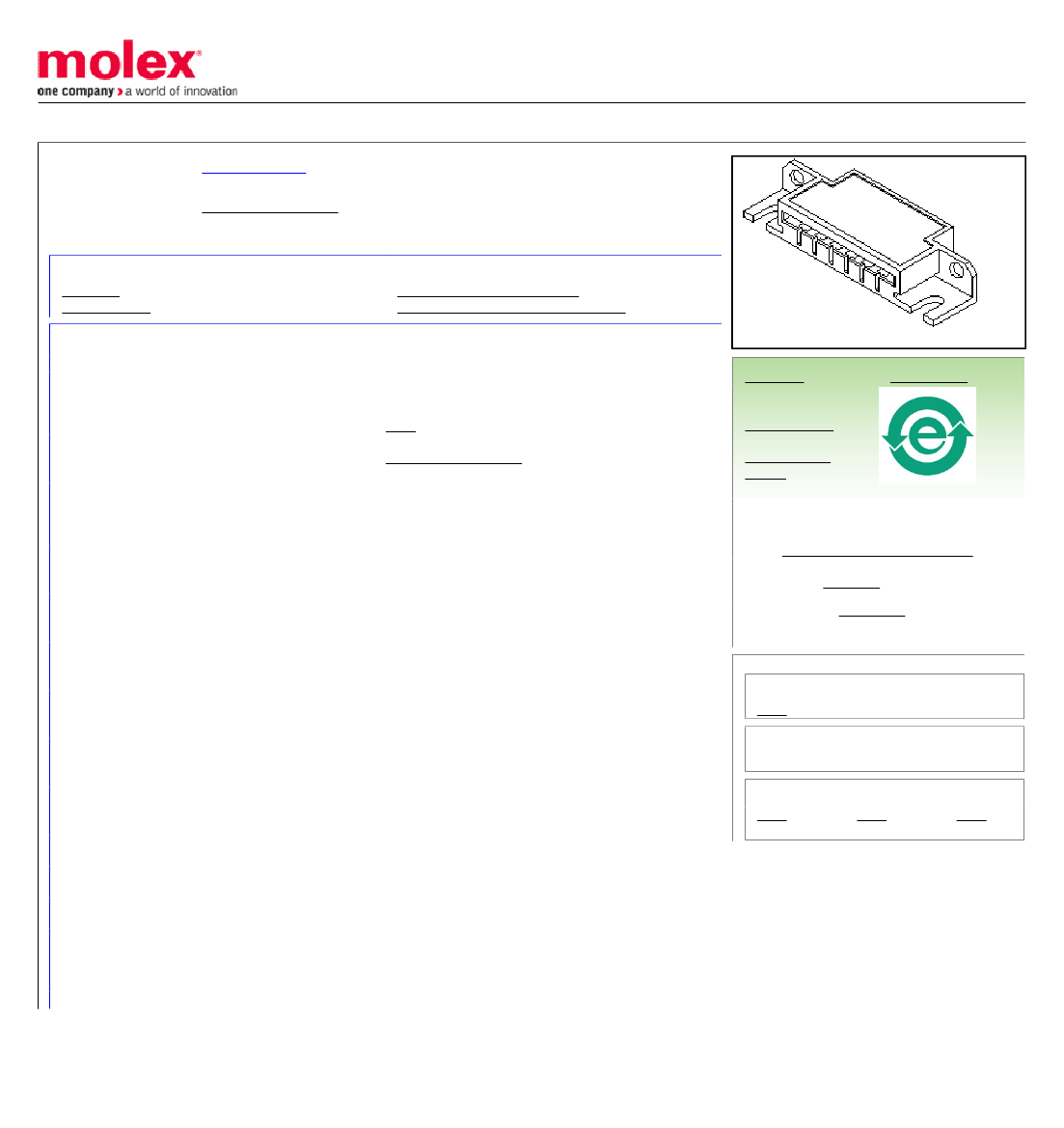

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0009017051

Active

edge_card_connectors

3.96mm (.156") Pitch KK® Crimp Housing, Edge Card Connector, Single-Sided,

Surface Mount, Polarized, With Flange, 5 Circuits

Documents:

3D Model

Drawing (PDF)

Packaging Specification (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Component Type

Overview

Product Name

Edge Card Connectors

2574

Edgecard to Wire

edge_card_connectors

Edge Card, KK®

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Keying to Mating Part

Material - Plating Mating

Material - Resin

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

All Signal

Natural

Vertical (Top Entry)

94V-2

N/A

n/a

Nylon

None

0.062 In

1.60 mm

Bag

With Flange

0.156 In

3.96 mm

Yes

0°C to +75°C

N/A

Search Parts in this Series

2574Series

Mates With

PCB, 1.6mm (0.62") max. thickness

Use With

2878 Terminals, 2478 Terminals, 2578

Terminals, Bifurcated

Electrical

Current - Maximum per Contact

Voltage - Maximum

4.25A, 4.5A, 4.75A, 4A, 5A

250V

Material Info

Old Part Number

2574-05B1

Reference - Drawing Numbers

Packaging Specification

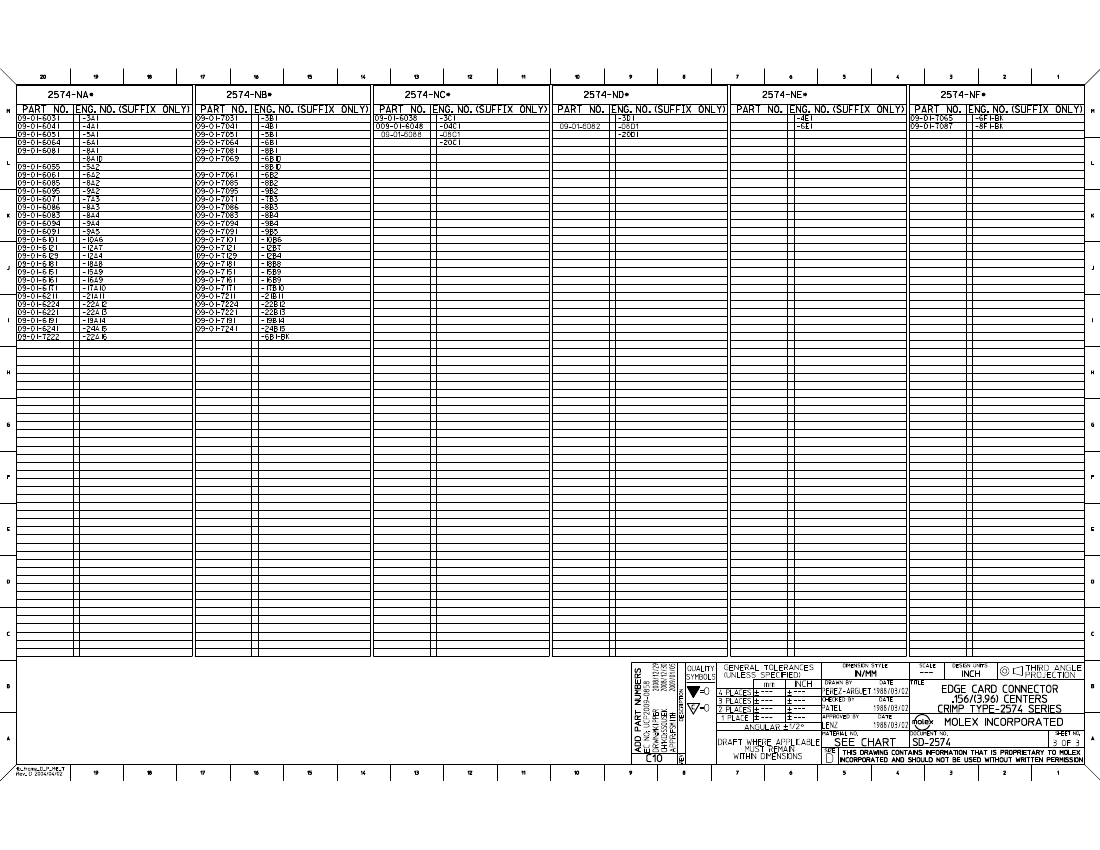

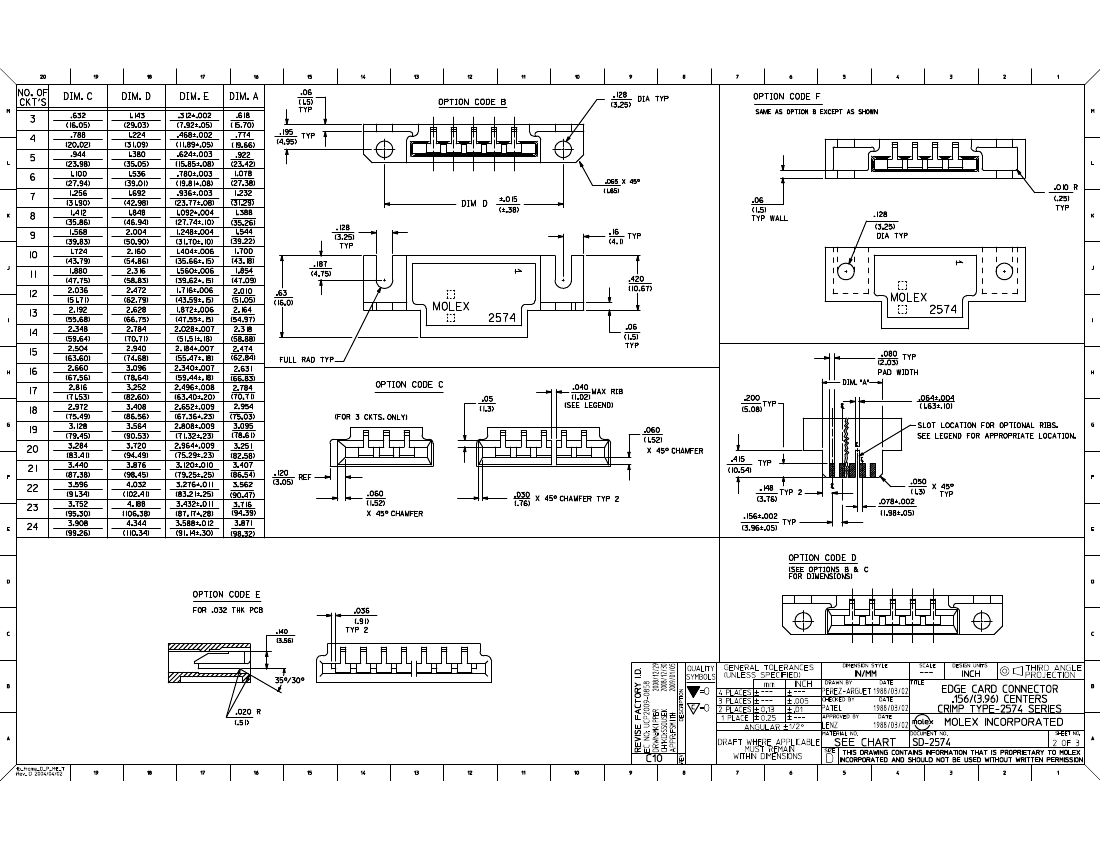

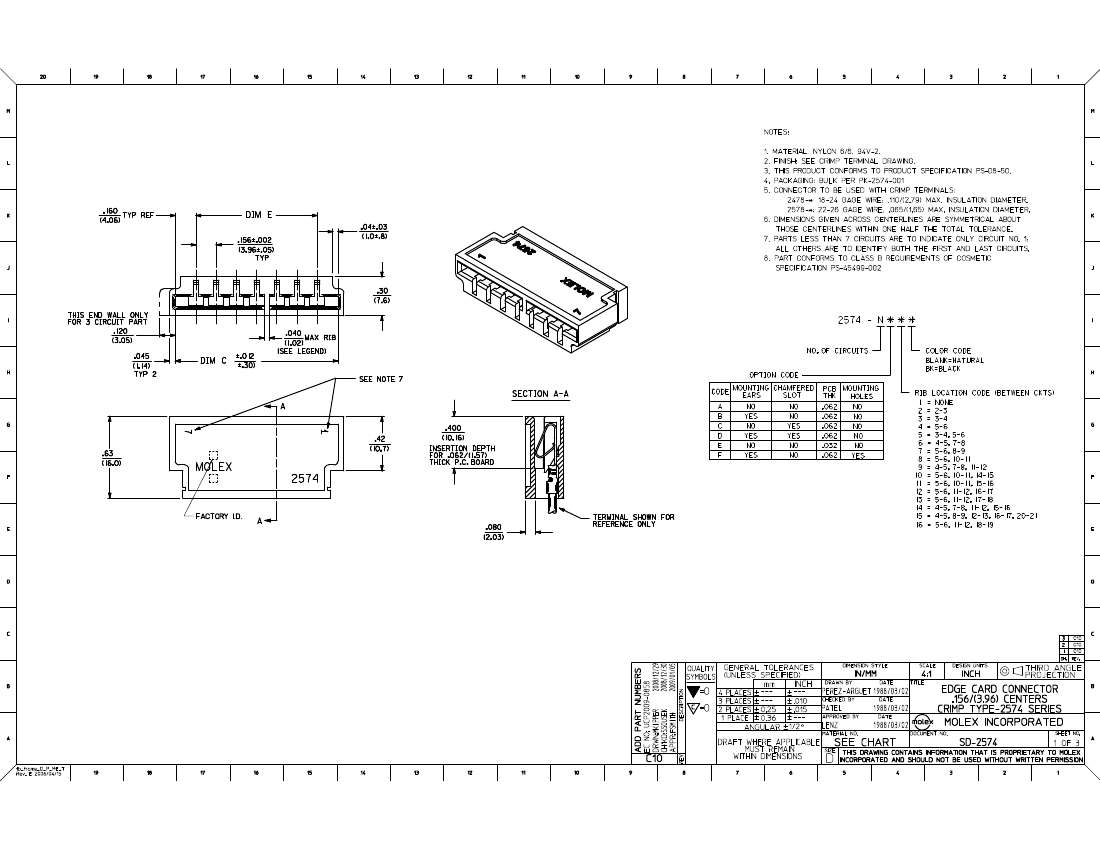

Sales Drawing

PK-2574-001

SD-2574

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
