Part Number

Search

350689822

Description
MP-Lock™ Quick Disconnect, Female, for 16-20 AWG (1.31-0.52mm²), Metal StripTab 4.75 by 0.80mm (.187 by
CategoryThe connector    terminals
File Size128KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

350689822 Overview

MP-Lock™ Quick Disconnect, Female, for 16-20 AWG (1.31-0.52mm²), Metal StripTab 4.75 by 0.80mm (.187 by

350689822 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time25 weeks 5 days
terminal genderFEMALE
Terminal and terminal strip typesPUSH-ON TERMINAL
Wire gauge16 AWG
Base Number Matches1
This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0350689822
Active
MP-Lock™ Quick Disconnect, Female, for 16-20 AWG (1.31-0.52mm²), Metal Strip,
Tab 4.75 by 0.80mm (.187 by .031"), Pre-Tin Plated
Documents:
Drawing (PDF)
Product Specification PS-35189-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E92853
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
35068
Yes
MP-Lock™
Quick Disconnect
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Open
Female
No
None
Yes
Brass
Tin
Tin
Straight
Reel
32.00
0.800
32.00
0.80
Yes
0.81mm (.032")
4.75mm (.187")
-40°C to +105°C
Crimp or Compression
3.40mm (.134") max.
16, 18, 20
0.50 - 1.30
Search Parts in this Series
35068Series
Use With
35189 , 35817 , 35961
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638014300
Applicator
Electrical
Voltage - Maximum
300V
Material Info
Reference - Drawing Numbers
Product Specification

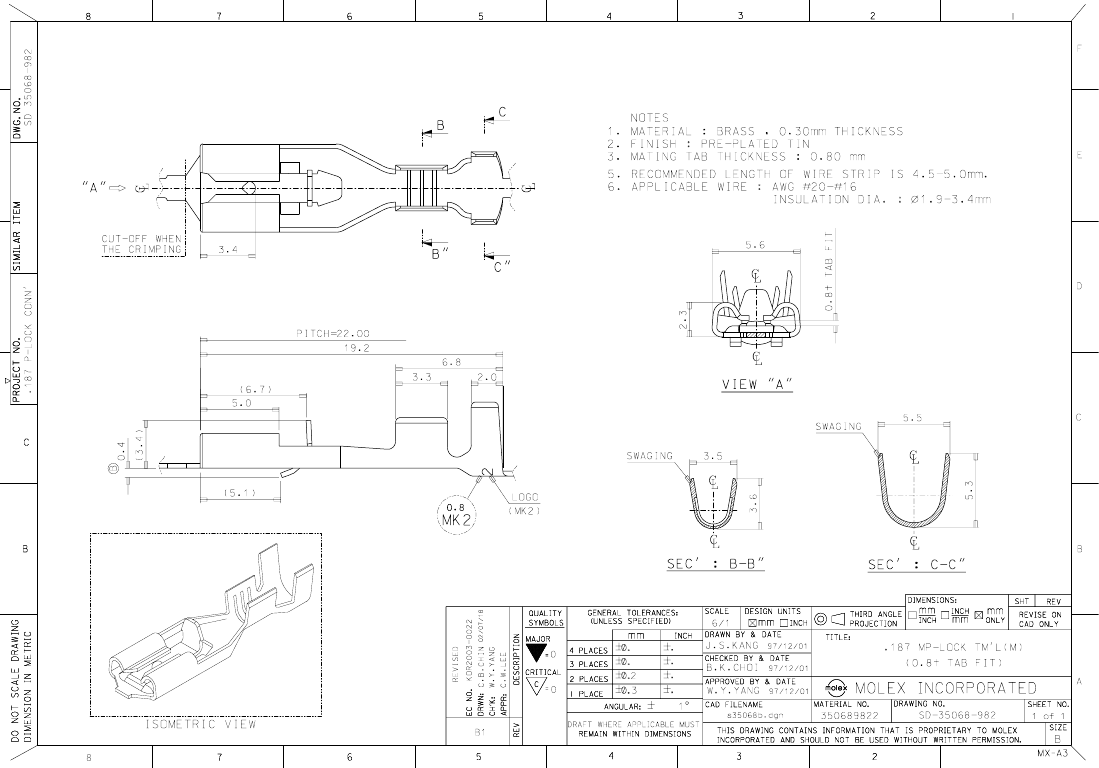

Sales Drawing
PS-35189-001
SD-35068-982
This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
