39-01-3165: Description16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size282KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-01-3165 Overview

16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE

39-01-3165 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli

Preview

Download Datasheet

View All

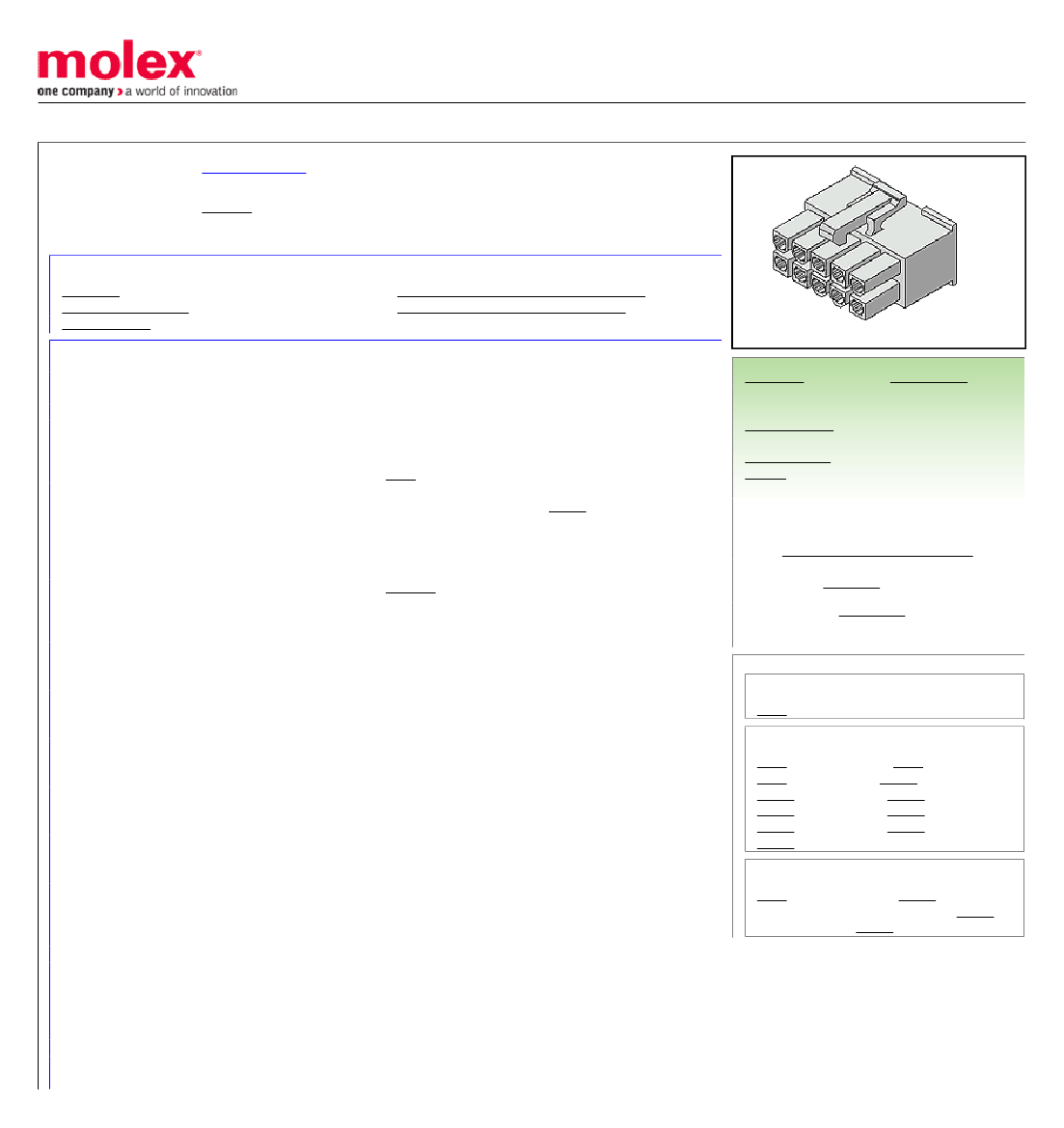

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039013165

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Receptacle Housing, PA Polyamide Nylon 6/6, Dual

Row, UL 94V-2, 16 Circuits

Documents:

3D Model

Test Summary (PDF)

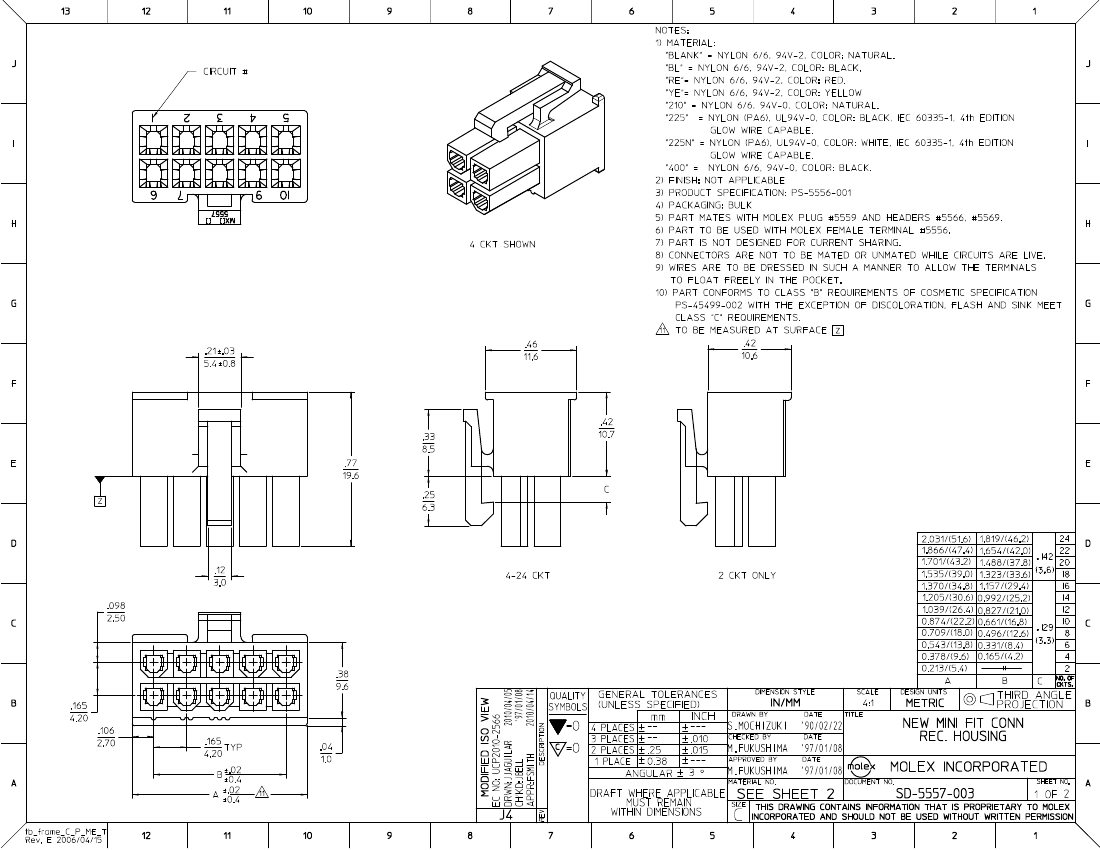

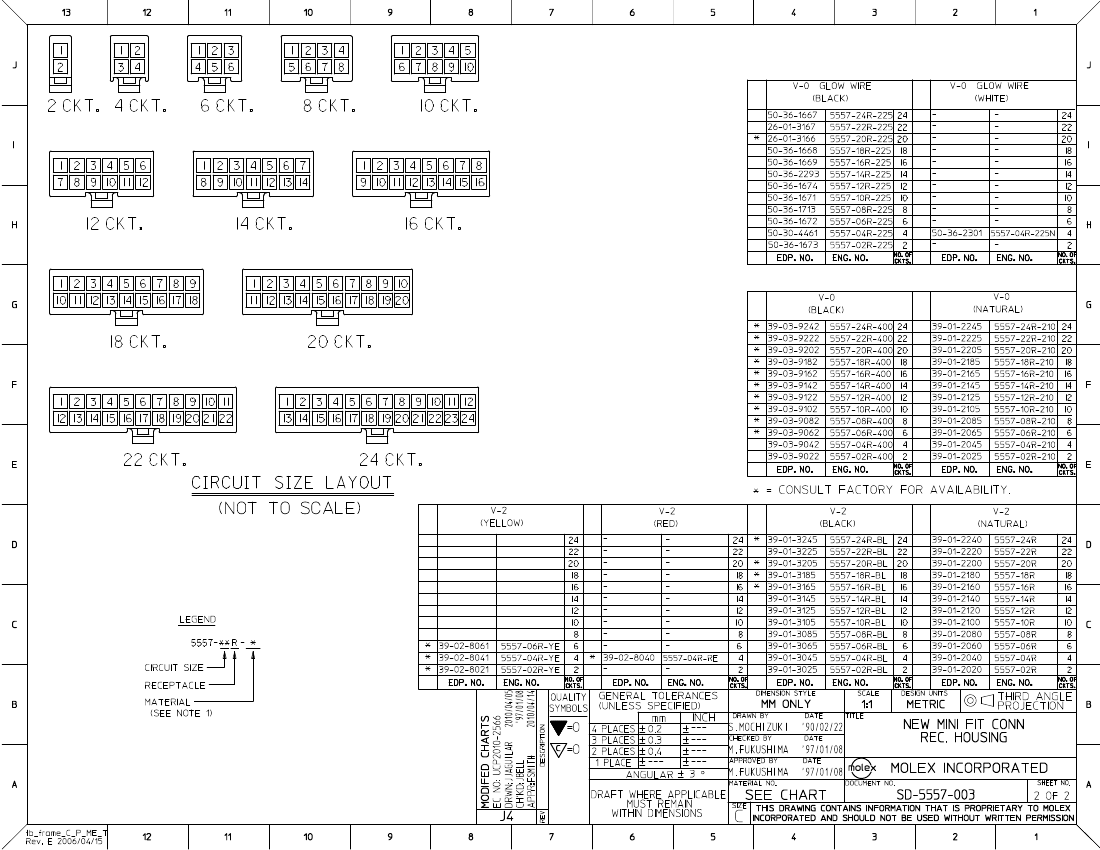

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Housings

5557

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.. See Molex product specification

PS-5556-001 for additional current de-rating information.

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Black

94V-2

Female

None

Yes

Nylon

Bag

0.165 In

4.20 mm

Yes

-40°C to +105°C

Search Parts in this Series

5557Series

Mates With

5559 Crimp Housings, 5566 PCB Headers,

5569 PCB Headers, 43810 PCB Headers,

44068 PCB Headers, 44281 PCB Headers,

44472 PCB Headers, 87427 PCB Headers,

42404 PCB Headers, 44474 PCB Headers,

42440 PCB Headers

Use With

5556 Female Terminal. 44476 Mini-Fit

HCS™ Female Crimp Terminals. 44485

Crimp Terminal. 41995 Crimp Housing

Electrical

Current - Maximum per Contact

13A

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-5557-002

PS-5556-001

SD-5557-003

TS-5556-002

39-01-3165 Related Products

	39-01-3165	5557-16R-BL	0039013165
Description	16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	4.20mm (.165") pitch mini-fit Jr.? receptacle housing, PA polyamide nylon 6/6, dual row, UL 94v-2, 16 circuits
Maker	Molex	Molex	-
Reach Compliance Code	compli	unknow	-
