Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0190690110
Active
Krimptite™ Ring Tongue Terminal for 14-16 AWG Wire
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19069
Yes
N/A
Krimptite™
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Wire Size AWG
Wire Size mm²
Closed
None
Tin
Adhesive Tape on Reel
100
2.5
100
2.5
5/16" (M8)
14, 16
1.30 - 2.00
Material Info
Old Part Number
BB-125-56T
Search Parts in this Series
19069Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
ATP Perishable
0190270068
Tool Kit used in ATP
presses that process
product on tape
Mini-Mac™
0638853900
Applicator, Air Feed
Mylar Tape
Reference - Drawing Numbers

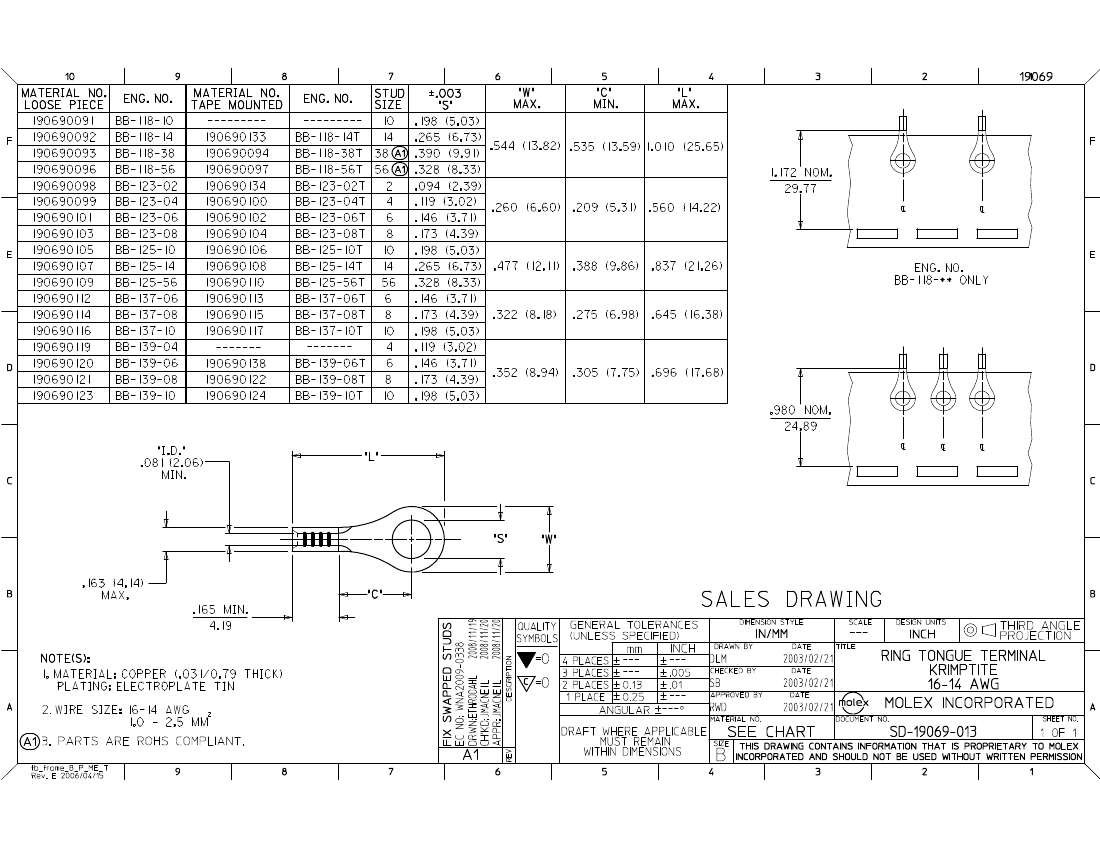

Sales Drawing
SD-19069-013
