BB-2707-05X

Description
InsulKrimp™ Snap Spade Terminal for 14-16 AWG Wire
CategoryThe connector    terminals
File Size62KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

BB-2707-05X Overview

InsulKrimp™ Snap Spade Terminal for 14-16 AWG Wire

BB-2707-05X Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesFORK TERMINAL
Conductor cross section2 mm2
Wire gauge14 AWG
Base Number Matches1

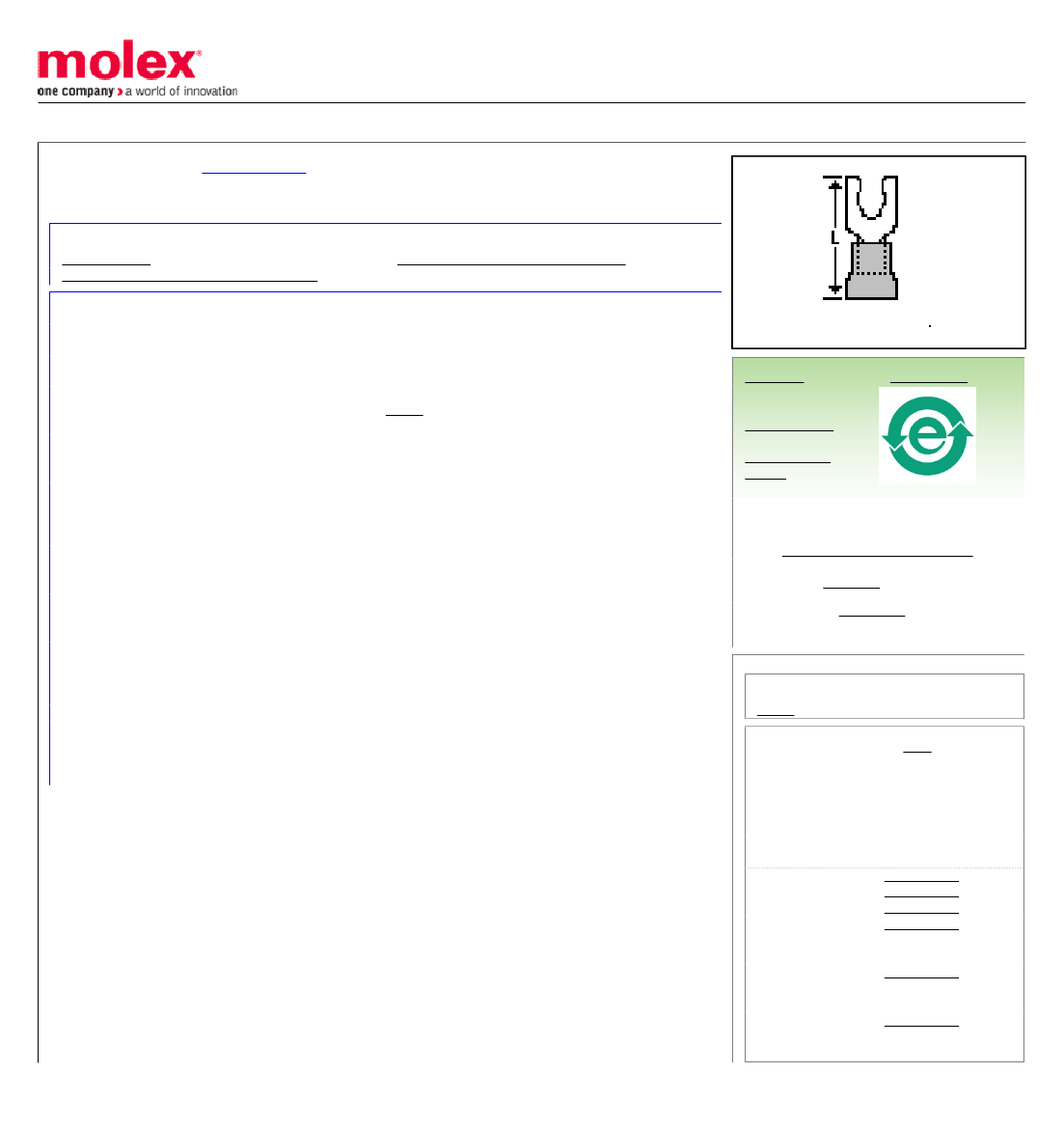

This document was generated on 03/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190990025
Active
InsulKrimp™ Snap Spade Terminal for 14-16 AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19099
Yes
N/A
InsulKrimp™
Spade Snap
Physical
Barrel Type
Color - Resin
Flammability
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-2
PVC
Tin
Bag
5 (M3)
4.40mm (.175") max.
14, 16
1.30 - 2.00
Material Info
Old Part Number
BB-2707-05X
Search Parts in this Series
19099Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640010300
Hand Crimp Tool
0640011400
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640050300
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051400
AT-200™ Pneumatic
Hand Tool
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-19902-009
BBCD20502
