Part Number:
Status:
Description:
0357111200
Active
2.79mm (.110") Slip-On Receptacle Terminal without Dimple, Quick Disconnect,
0.50mm (.020") Tab Thickness, Wire Range 20-22 AWG (0.52-0.33mm²), Unplated
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
35711
Yes
Slip-On
Quick Disconnect
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Open
Female
No
None
None
Brass
Tin
Tin
Straight
Reel
40
1
40
1
No
0.51mm (.020")
2.79mm (.110")
-40°C to +120°C
Crimp or Compression
1.50-2.00mm (.059-.079") max.
20, 22
0.33 - 0.52
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
35711Series
Electrical
Voltage - Maximum
Per Wire Specification
Material Info

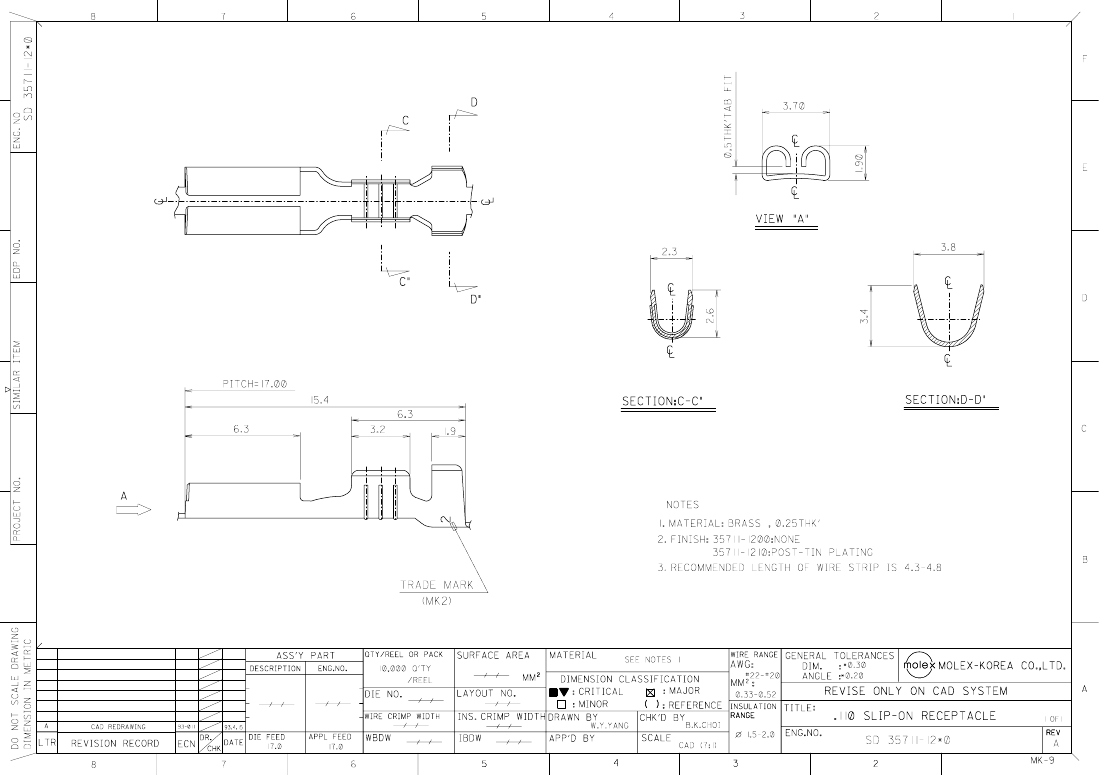

Reference - Drawing Numbers
Sales Drawing
SD-35711-12*0
