Part Number:
Status:
Overview:
Description:
0365150015
Active
din_41612
2.54mm (.100") Pitch DIN 41612 R Style Male Header with Wire-Wrap, Vertical,
Through Hole Press-Fit, 0.30µm (12µ") Selective Gold (Au) Plating, 96 Circuits, without
Mounting Clips, First-Mate-Last-Break at 1,32a;1,32b;1,32c
Documents:

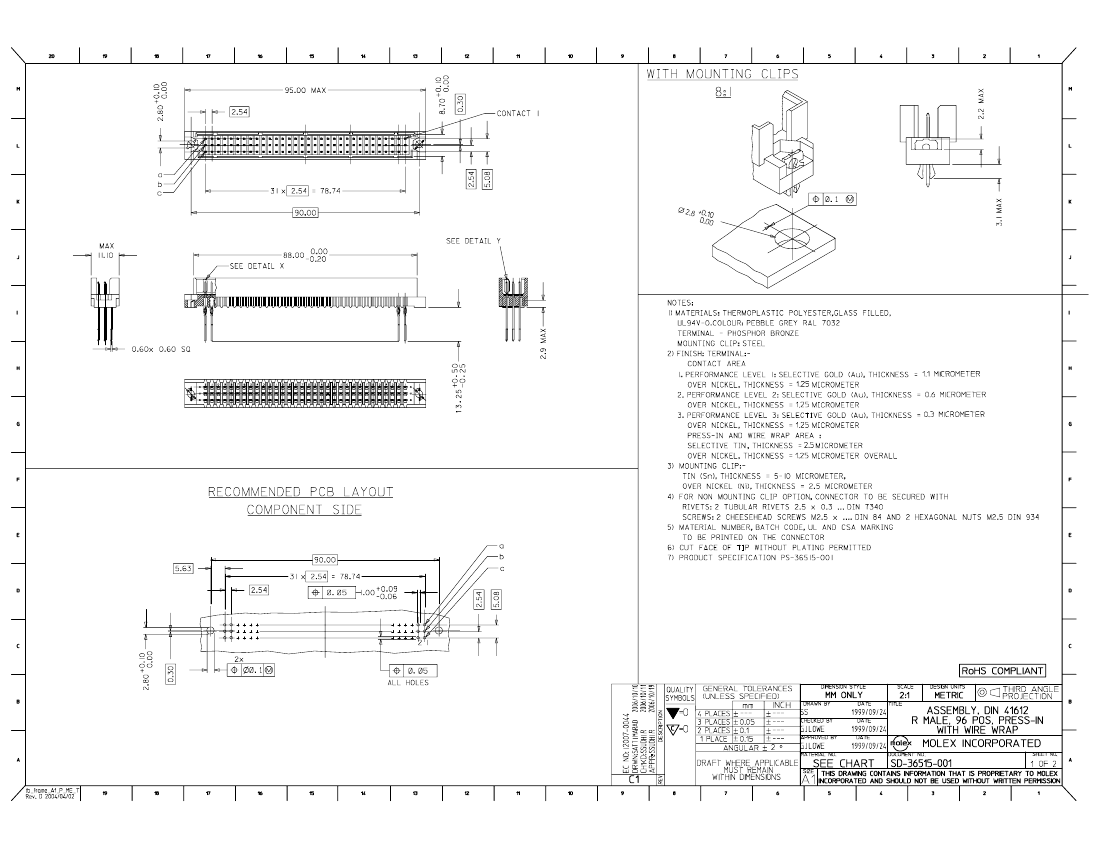

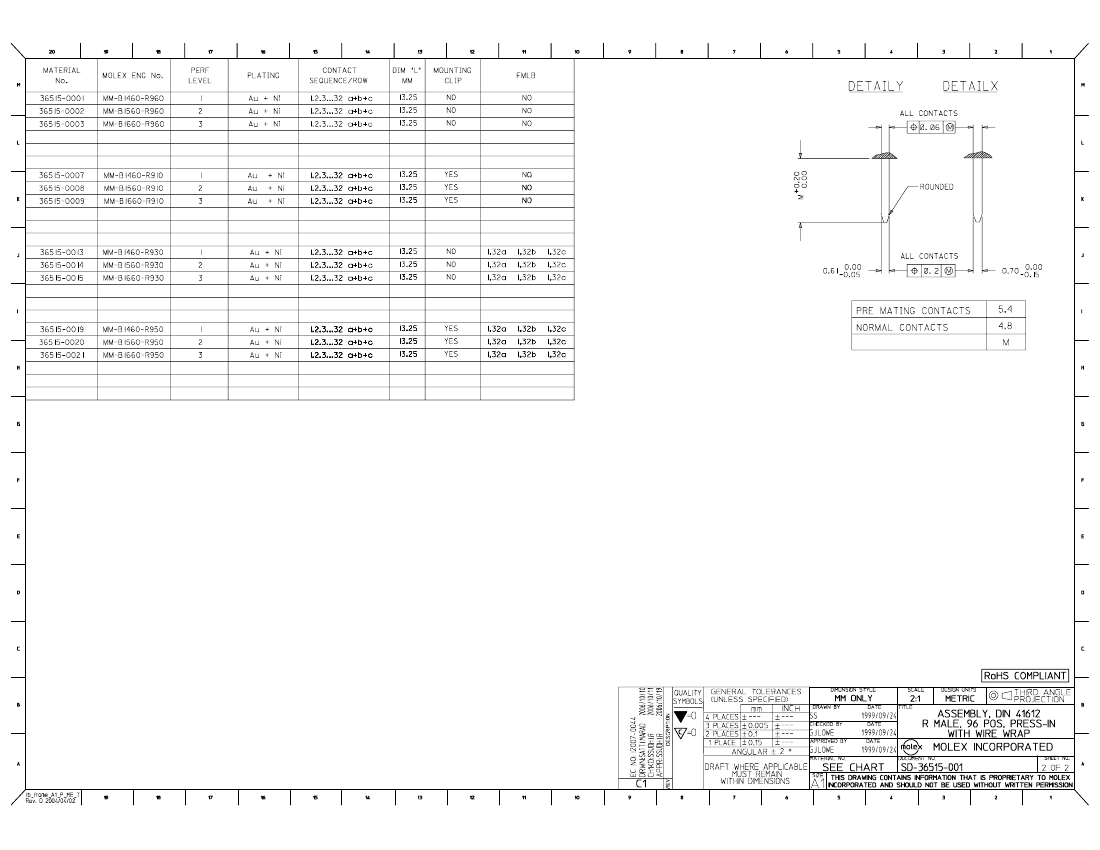

Drawing (PDF)
Product Specification PS-36515-001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Backplane Connectors
36515
Backplane
No Mounting Clips, Secured with Tubular Rivets/
Cheesehead Screws. First-Mate-Last-Break Positions
at:1,32a;1,32b;1,32c
PCB Header
din_41612
IEC 603-2/DIN 41612
R
Component Type
Overview
Product Name
Style
Search Parts in this Series
36515Series
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
96
96
1,2,3,...32; a+b+c
Gray
50
Yes
No
Yes
Phosphor Bronze
Gold
Nickel
Polyester
32
Open Pin Field
3
Vertical
0.522 In
13.25 mm
No
Yes
0.063 In
1.60 mm
Carton
0.100 In
2.54 mm
0.100 In
2.54 mm
12
0.30
98
2.5
No
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
No
-55°C to +125°C
Through Hole - Compliant Pin, Wire Wrap
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
1A
622.0 Mbps
250V AC (RMS)
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-36515-001
SD-36515-001
