399300506 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 399300506

399300506: Description3.81mm; CategoryThe connector terminals; File Size423KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

399300506 Overview

3.81mm

399300506 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	39930
Number of layers	2
Rows	2
Number of channels	6
Rated current	10 A
Rated voltage	300 V
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0399300506

Active

3.81mm (.150") Pitch Beau™ EuroMate™ Pluggable PCB Terminal Block, Dual Level,

270° Wire Entry, with Retention Screws, 6 Circuits

Documents:

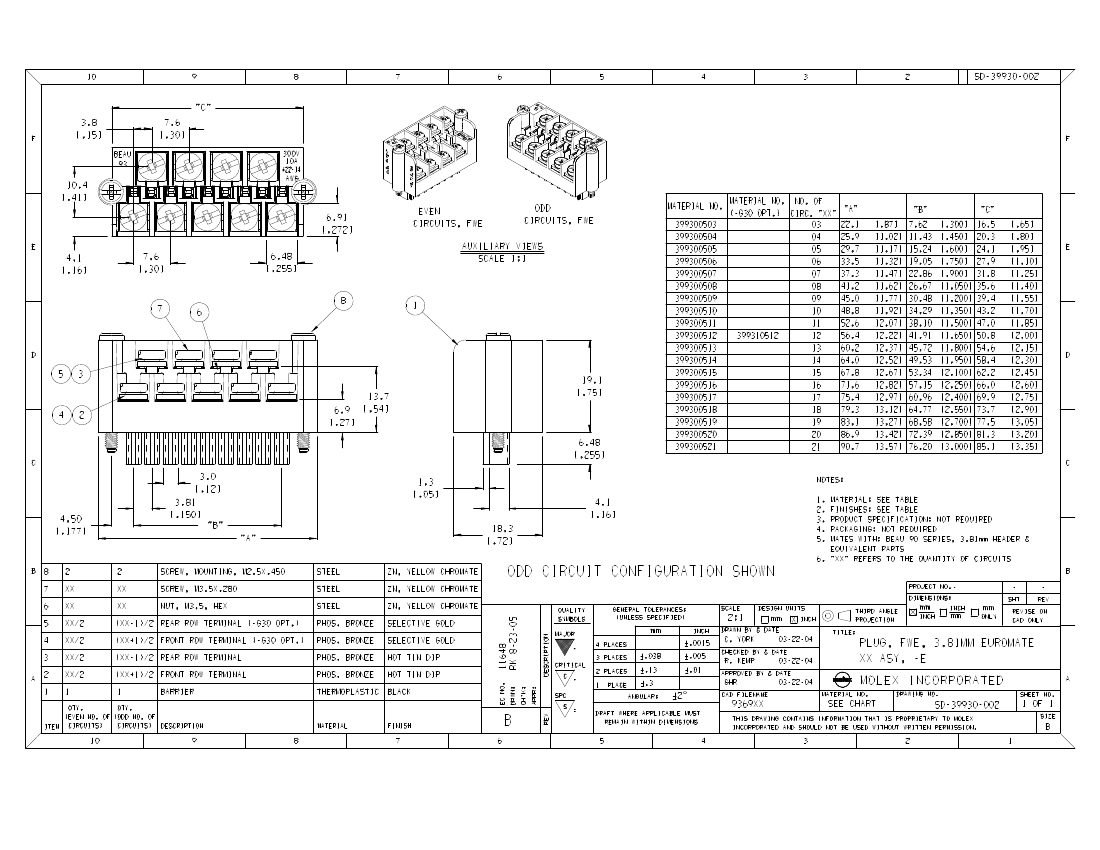

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39930

Wire-to-Board

with retention screws

Plug

USA-264

EuroMate™Pluggable

Euro Block

Physical

Circuits (Loaded)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Black

Horizontal

94V-0

Yes

Tin

Nylon

Vertical

N/A

0.150 In

3.81 mm

0.150 In

3.80 mm

Yes

Tri-Barrier

130°C

Screw or Lug

14, 16, 18, 20, 22

0.50 - 1.50

Search Parts in this Series

39930Series

Mates With

39515-1006 , 39516-1006

Electrical

Current - Maximum per Contact

Voltage - Maximum

12A

300V

Material Info

Old Part Number

936906

Reference - Drawing Numbers

Sales Drawing

SD-39930-002

399300506 Related Products

	399300506	936906
Description	3.81mm	3.81mm
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	THERMOPLASTIC	POLARIZATION AVAILABLE, NYLON 6.6, 94V-0
Fastening method	SCREW	SCREW
Manufacturer's serial number	39930	39930
Number of layers	2	1
Rows	2	2
Number of channels	6	6
Rated current	10 A	12 A
Rated voltage	300 V	300 V
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG	14 AWG
Base Number Matches	1	1
