SRZ-S-4129-06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> SRZ-S-4129-06

SRZ-S-4129-06: DescriptionOpen Barrel Star Ring , Tin-Plated Steel, for 14-18 AWG Wire Range, Stud Size 6; CategoryThe connector terminals; File Size87KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

SRZ-S-4129-06 Overview

Open Barrel Star Ring , Tin-Plated Steel, for 14-18 AWG Wire Range, Stud Size 6

SRZ-S-4129-06 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	5 weeks
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Conductor cross section	2 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

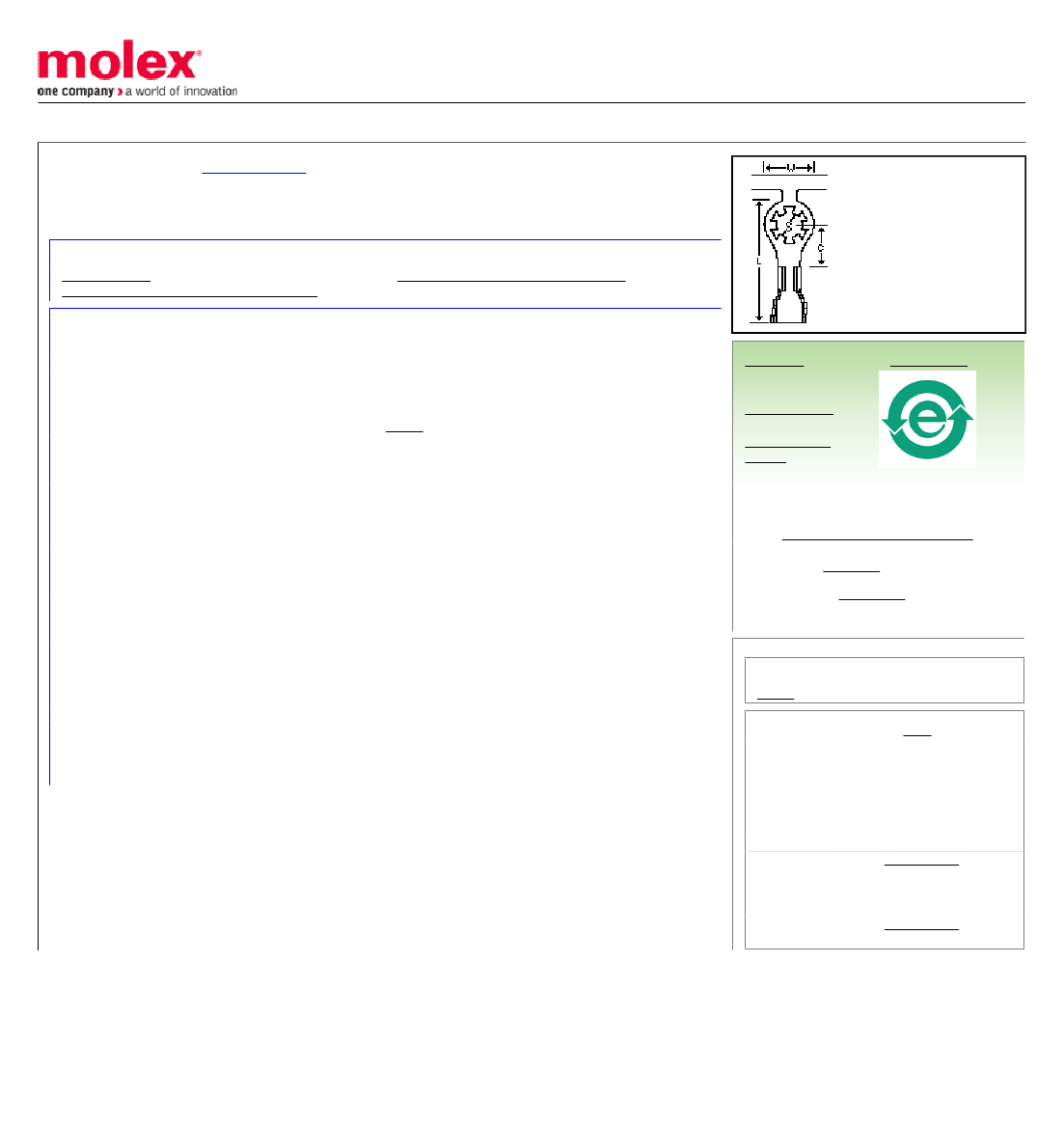

This document was generated on 03/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0190840007

Active

Open Barrel Star Ring , Tin-Plated Steel, for 14-18 AWG Wire Range, Stud Size 6

(M3.5)

Documents:

Drawing (PDF)

Product Specification PS-19902-006 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E32244

Series image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19084

Yes

N/A

Ring

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Stud Size

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Open

None

Tin

Reel

6 (M3.5)

Crimp or Compression

N/A

14, 16, 18

0.80 - 2.00

Material Info

Old Part Number

SRZ-S-4129-06

Search Parts in this Series

19084Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

ASP Perishable

0190290053

Tool Kit used in ASP

presses that process

metal strip product

Mini-Mac™

0638815600

Applicator

Reference - Drawing Numbers

Product Specification

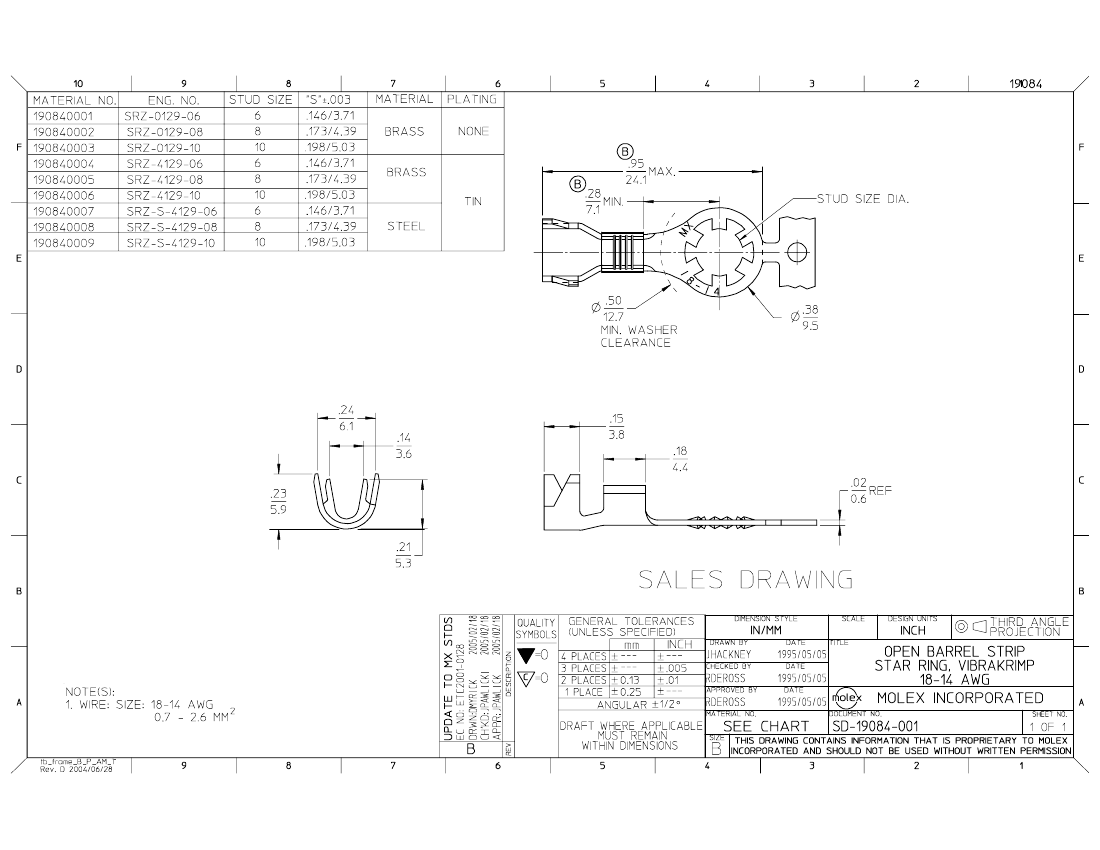

Sales Drawing

PS-19902-006

SD-19084-001

This document was generated on 03/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

SRZ-S-4129-06 Related Products

	SRZ-S-4129-06	190840007
Description	Open Barrel Star Ring , Tin-Plated Steel, for 14-18 AWG Wire Range, Stud Size 6	Open Barrel Star Ring , Tin-Plated Steel, for 14-18 AWG Wire Range, Stud Size 6
Maker	Molex	Molex
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
terminal gender	FEMALE	FEMALE
Terminal and terminal strip types	WIRE TERMINAL	RING TERMINAL
Conductor cross section	2 mm2	2 mm2
Wire gauge	14 AWG	18 AWG
Base Number Matches	1	1
