Part Number:
Status:
Description:
0353120362
Active
2.50mm (.098") Pitch Header, Vertical, Shrouded, with Positive Lock, 3 Circuits, PA
Polyamide (Nylon) 6/6, Glass-filled, Red
Documents:
3D Model
Packaging Specification (PDF)
Drawing (PDF)
Product Specification PS-35155-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
TUV
UL
LR19980
E9450420E01
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
PCB Headers
35312
Wire-to-Board
N/A
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
3
3
Natural
30
No
94V-0
No
No
None
Yes
Tin
Tin
Nylon
1
Vertical
0.134 In
3.40 mm
No
None
0.062 In
1.60 mm
Bag
0.098 In
2.50 mm
No
Partial
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
35312Series
Mates With
Wire-to-Wire and Wire-to-Board Housing
35572 Crimp Housing, 35155
Electrical
Current - Maximum per Contact
3A
Voltage - Maximum
250V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35155-002

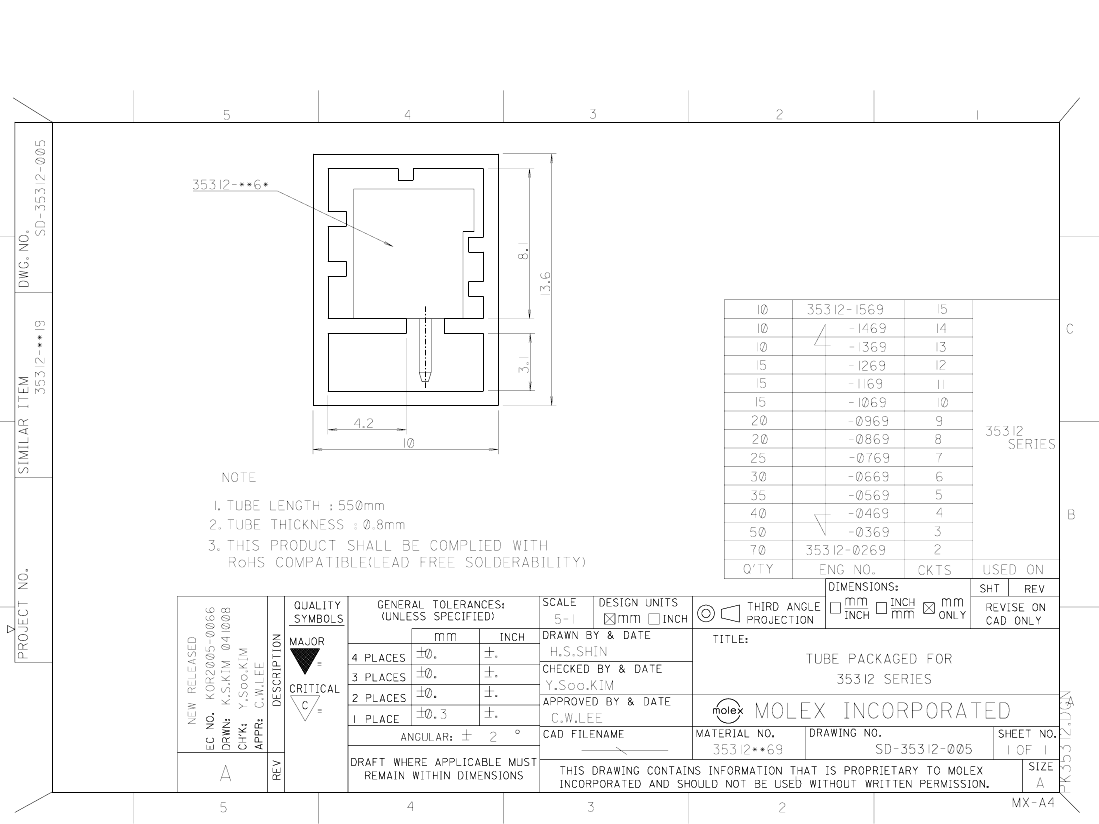

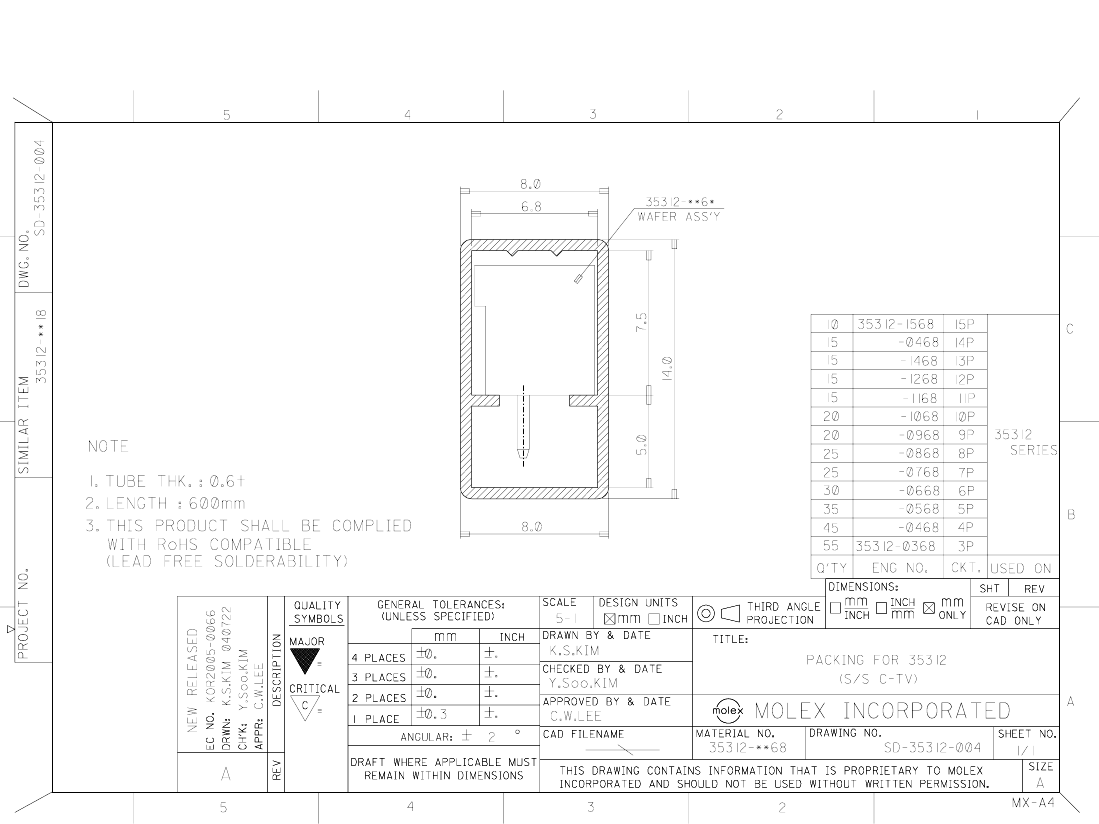

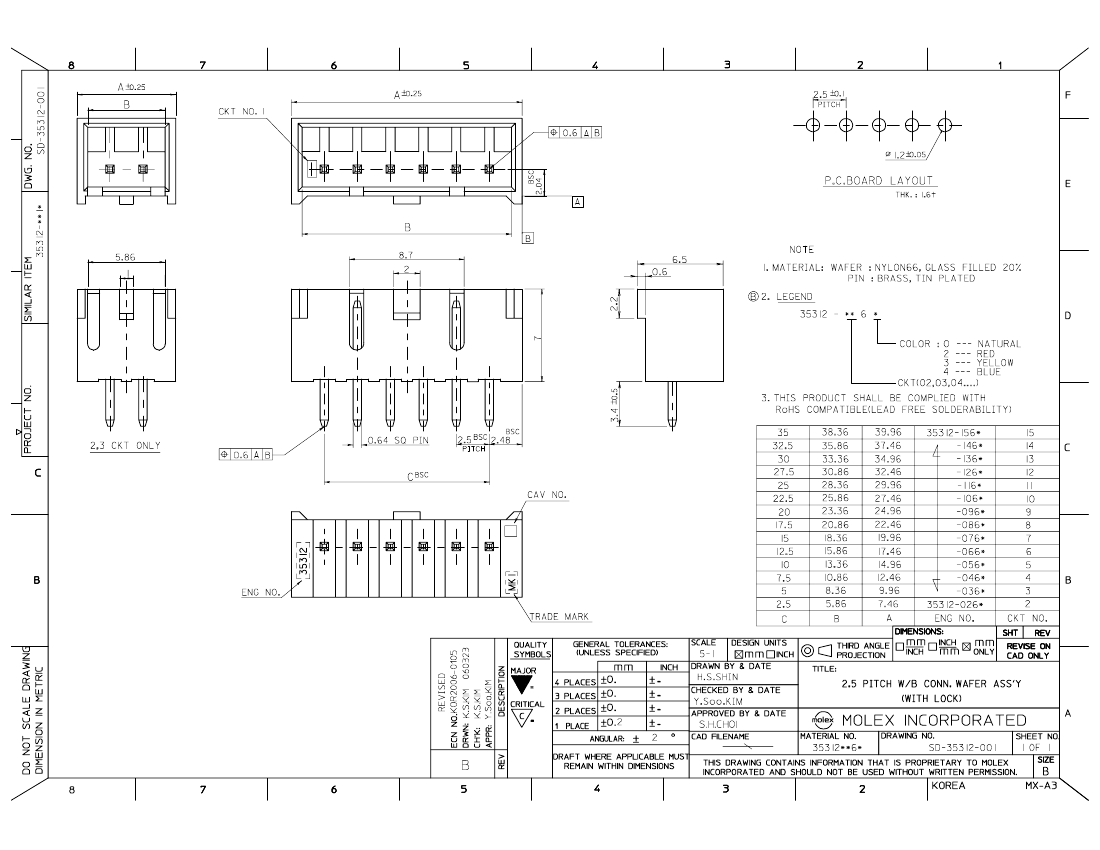

SD-35312-001, SD-35312-004, SD-35312-005
