395240008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 395240008

395240008: Description15 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector; File Size135KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395240008 Overview

15 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

395240008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	395240008
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

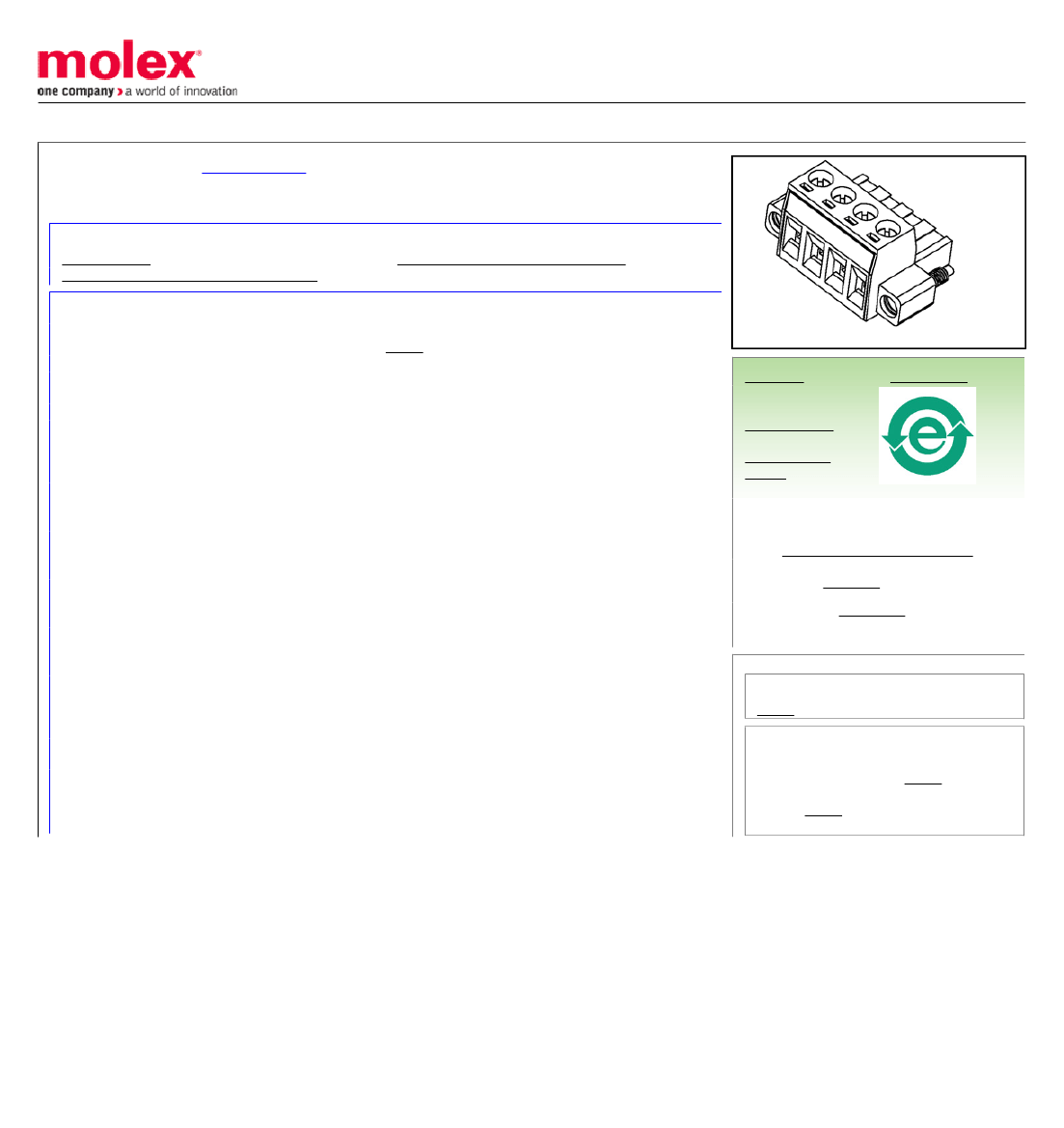

Preview

Download Datasheet

View All

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395240008

Active

5.00mm (.197") Pitch Eurostyle™ Horizontal Plug, with Retention Screws, 8 Circuits

Documents:

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39524

Wire-to-Board

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

image - Reference only

Series

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Vertical

Yes

Horizontal

0.197 In

5.00 mm

Yes

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13 - 3.31

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Search Parts in this Series

39524Series

Mates With

Most 5.00mm (.197") Pitch Industry

Standard PCB Headers, 39525 Vertical

PCB Header with Threaded Retention

Inserts, 39526 Horizontal PCB Header with

Threaded Retention Inserts

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39524-001

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
