A-42228-0040

Description
2.54mm (.100) Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 5 Circuits, 0.38μm (15μ) Gold (Au) Selective Plating
File Size313KB,8 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

A-42228-0040 Overview

2.54mm (.100) Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 5 Circuits, 0.38μm (15μ) Gold (Au) Selective Plating

This document was generated on 03/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0022281051
Active
2.54mm (.100") Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 5
Circuits, 0.38µm (15µ") Gold (Au) Selective Plating
Documents:
3D Model
Packaging Specification (PDF)

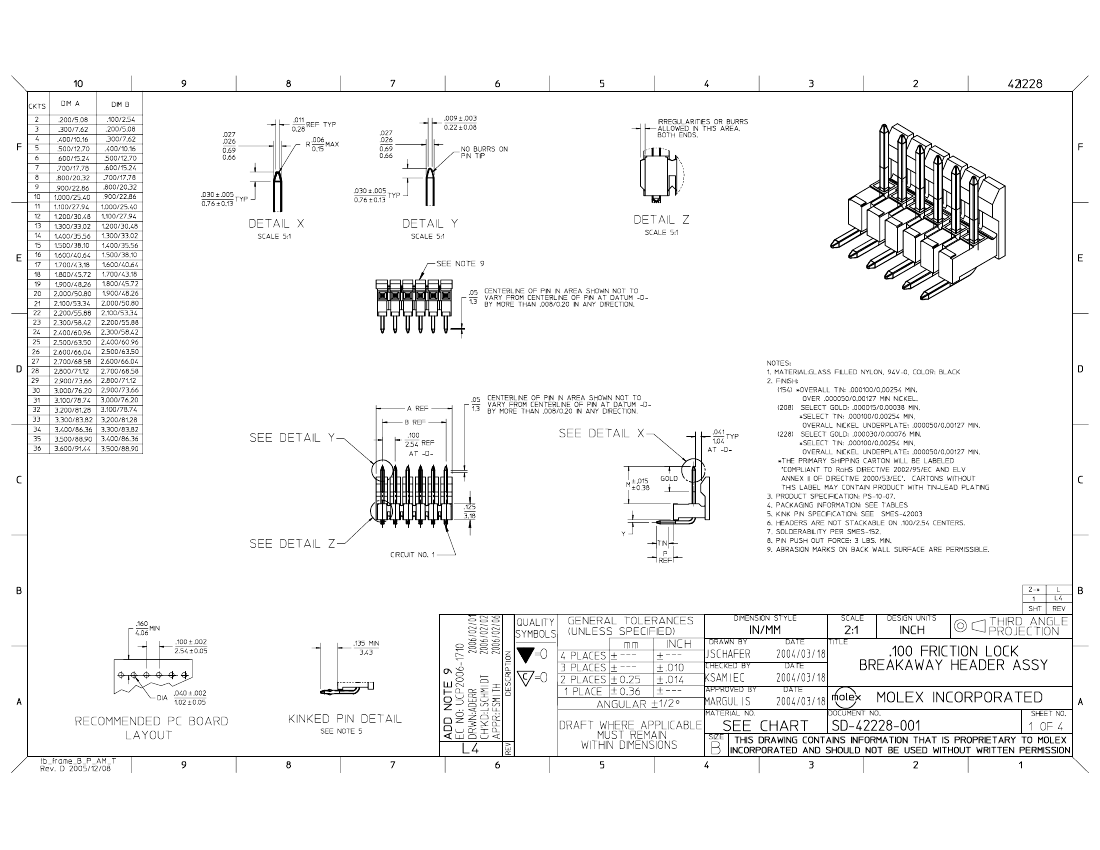

Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
42228
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
5
5
Black
100
94V-0
No
Yes
Brass
Gold
Tin
Nylon
1
Right Angle
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
15
0.375
100
2.5
Yes
No
Partial
No
0°C to +75°C
Through Hole
Search Parts in this Series
42228Series
Mates With
2695 , 6471 , 7880 , 4455 , 7720
Electrical
