3022-05B: Description5 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size106KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

3022-05B Overview

5 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

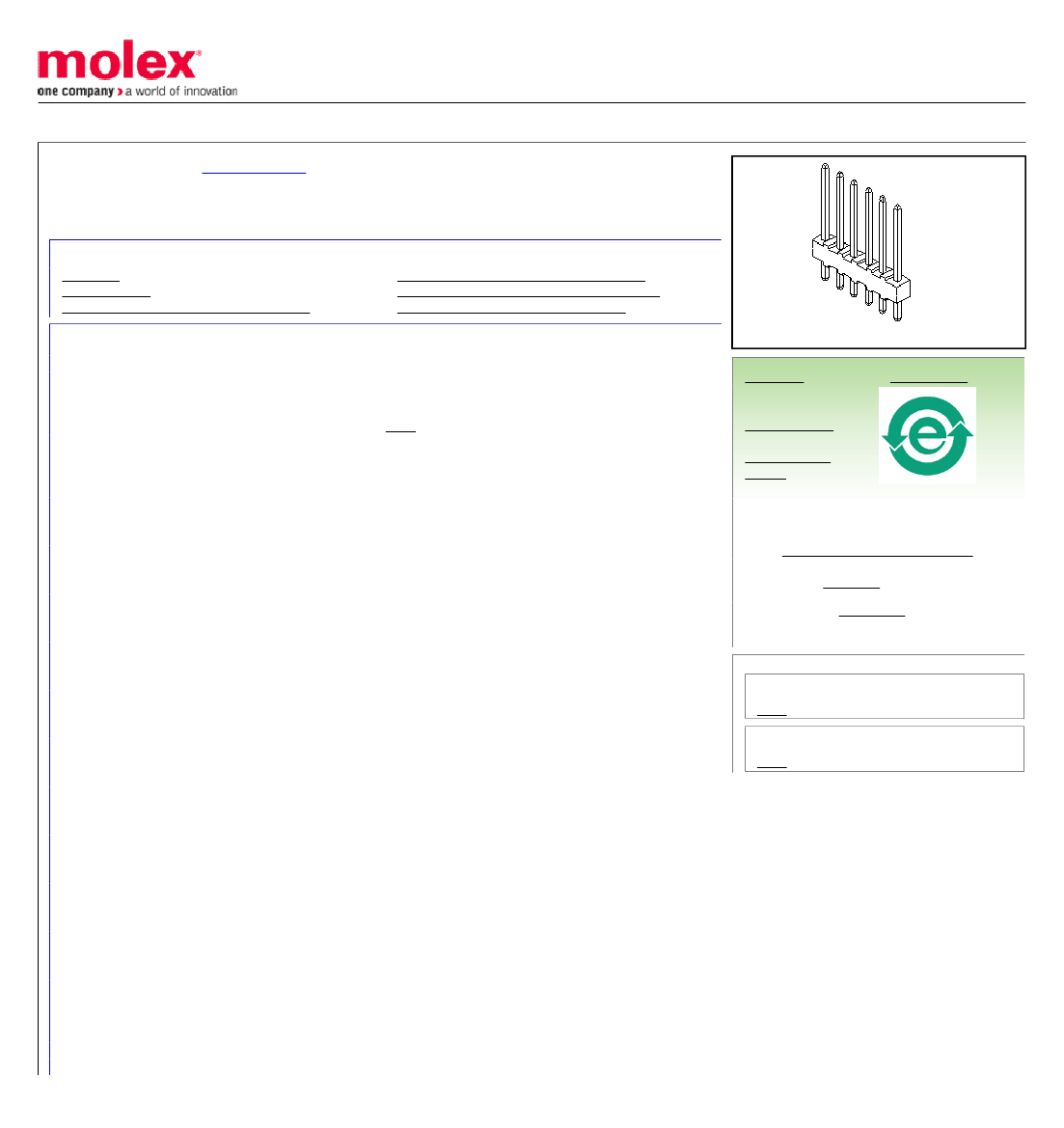

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022031052

Active

2.50mm (.098") Pitch Header, Single Row, 11.10mm (..437") Mating Pin Length, 5

Circuits

Documents:

3D Model

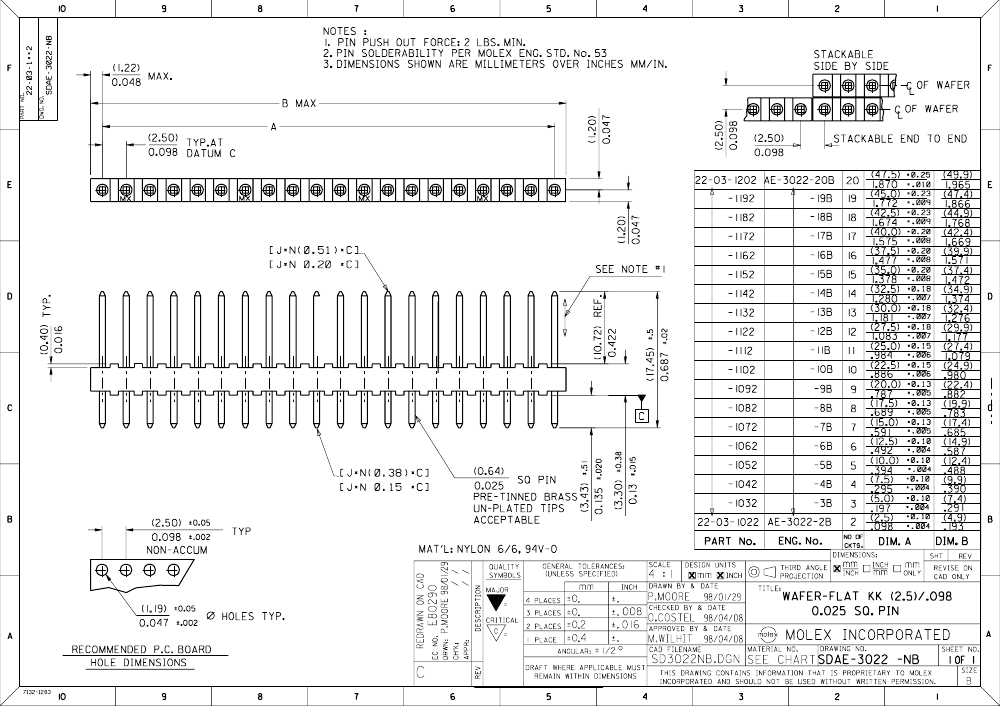

Drawing (PDF)

Product Specification PS-3022-003 (PDF)

Product Specification PS-3022-004 (PDF)

Product Specification PS-99020-0088 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

UL

General

Product Family

Series

Application

Product Name

PCB Headers

3022

Wire-to-Board

N/A

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

No

5

Natural (White)

94V-0

No

None

Brass

Tin

Nylon

1

Vertical

0.134 In

3.40 mm

No

None

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

200

5

200

5

No

-40°C to +105°C

Through Hole

Search Parts in this Series

3022Series

Mates With

5124

Electrical

Current - Maximum per Contact

Voltage - Maximum

3A

250V
