36644-008

Description
15 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE
Categorysemiconductor    Other integrated circuit (IC)
File Size332KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

36644-008 Overview

15 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0366440008
Active
mlx

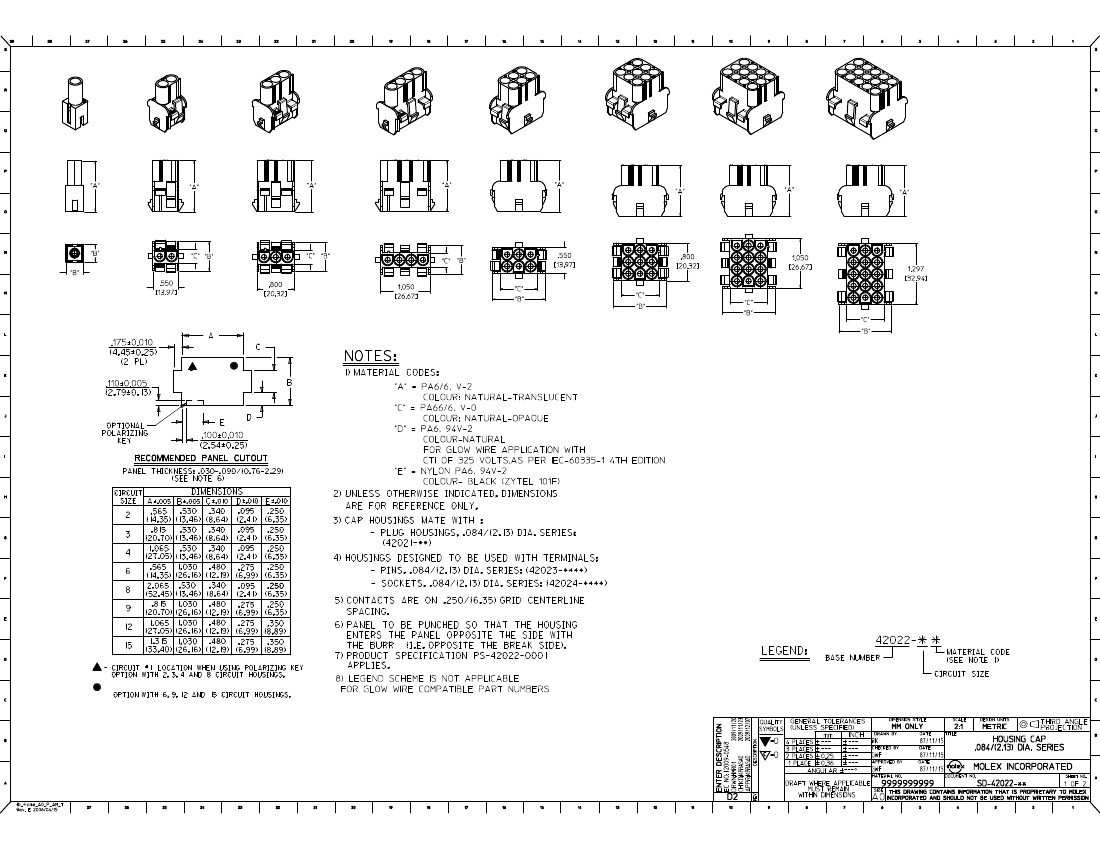

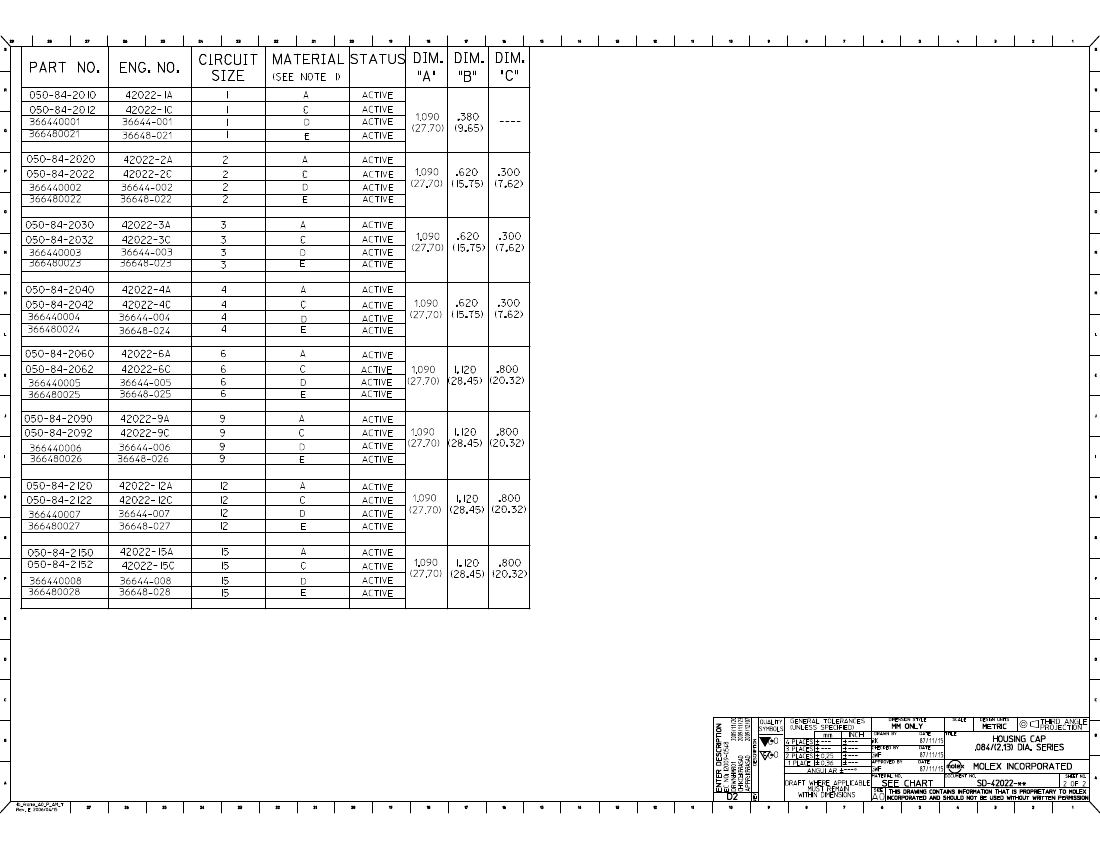

2.13mm (.084") Diameter MLX™ Pin and Socket Receptacle, 15 Circuit, PA Polyamide
Nylon 6/6 94V-2, Glow Wire Compatible
Documents:
3D Model
Drawing (PDF)
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Crimp Housings
36644
mlx
MLX™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Overview
Product Name
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
15
15
Natural
Female
Yes
None
Yes
Nylon
5
Bag
No
0.250 In
6.35 mm
0.250 In
6.35 mm
Yes
No
-55°C to +105°C
Search Parts in this Series
36644Series
Mates With
42021 MLX™ Power Crimp Housing Plug
Use With
MLX Crimp Terminal 42023 , 42024
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-42022-**
PS-42022-0001
SD-42022-**
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

36644-008 Related Products

36644-008 366440008 PS8821-1-F4
Description 15 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE 15 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE 1 Mbps ANALOG OUTPUT TYPE 8-PIN SSOP (SO-8)
raw os
I am very interested in domestic operating systems, but there is too little information and it is very difficult to learn....
电子工控95 Embedded System
Why do many warning errors occur when compiling the CE5.0 system?
Hello everyone, when compiling the CE5.0 system, why do many warning errors appear? Hundreds of them, prompting that a certain path does not exist. Why is this?...
batonsoft Embedded System
Research on Computer Control System of Automobile Variable Section Leaf Spring Rolling Mill
Abstract: This paper introduces the main hardware structure and design method of the computer control system of the two-roller automobile variable-section leaf spring rolling mill, as well as the appl...
frozenviolet Automotive Electronics
Could you please check if there is any problem with the program?
#include#include "hw_memmap.h" #include "hw_types.h" #include "gpio.h" #include "sysctl.h" int i; int main(void) { SysCtlClockSet(SYSCTL_SYSDIV_1|SYSCTL_USE_OSC|SYSCTL_XTAL_16MHZ|SYSCTL_OSC_MAIN);//16...
85639973 Microcontroller MCU
The correspondence between the dimensions of capacitors and resistors and their packaging (very useful)
0402=1.0x0.5 0603=1.6x0.8 0805=2.0x1.2 1206=3.2x1.6 1210=3.2x2.5 1812=4.5x3.2 2225=5.6x6.5 Note: The four types of packaging are A\B\C\D, and the marking form is LXSXH. The specific size of 1210 is th...
征服 Discrete Device
Question: USB bulk transfer and speed issues
Hello everyone, I recently worked on a USB host project of LPC2378+ISP1161, and encountered a few problems to ask everyone: 1. When transferring data in batches, the following situation often occurs (...
