200BXC68MCA12.5X25 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 200BXC68MCA12.5X25

200BXC68MCA12.5X25: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 68uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size210KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

200BXC68MCA12.5X25 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 68uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

200BXC68MCA12.5X25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.644 mA
length	25 mm
Manufacturer's serial number	BXC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	520 mA
series	BXC
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE

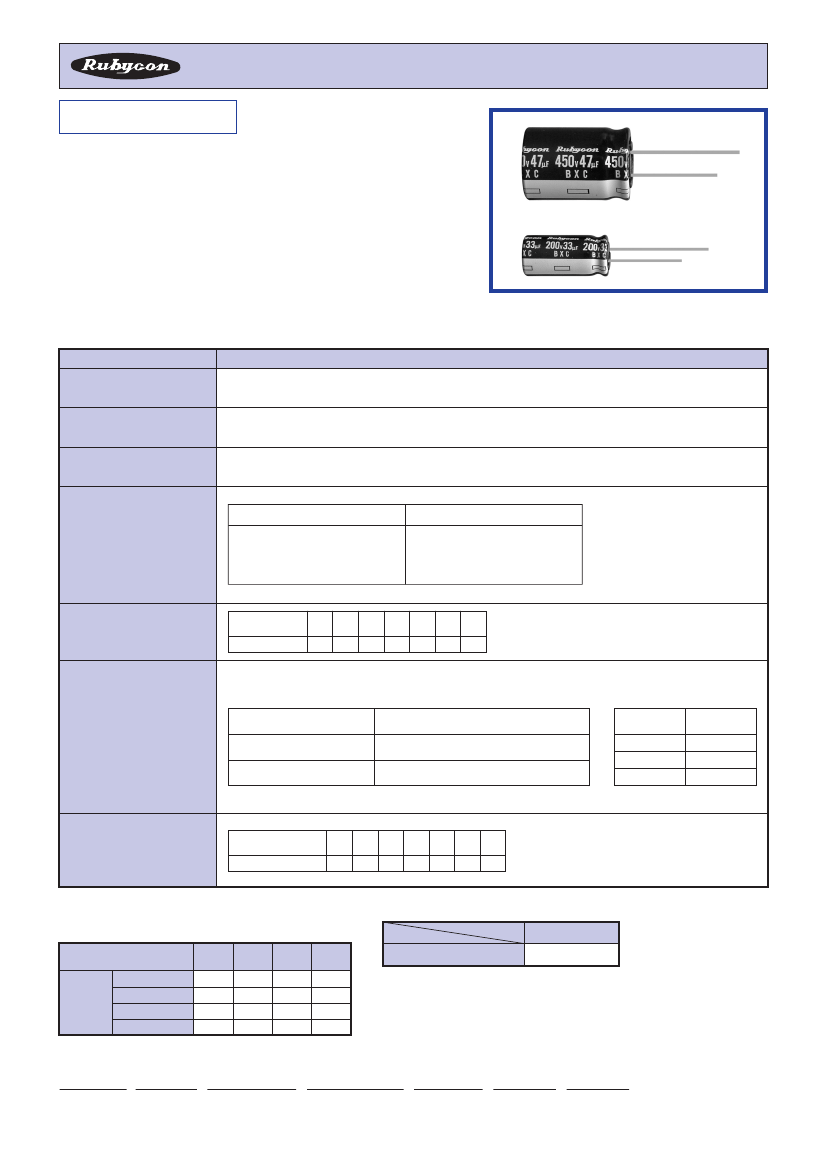

Preview

Download Datasheet

View All

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

BXC

SERIES

Load Life : 105℃ 8000∼12000 hours.

◆FEATURES

・

High Ripple Current.

・

Electronic Ballast.

For

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−25∼＋105℃

160∼500V.DC

±20％

（20℃，

120Hz）

I＝(μA)

Leakage Current

C＝(μF)

Rated Capacitance

Rated Voltage Range

Capacitance Tolerance

CV≦1000

Leakage Current(MAX)

I=0.1CV＋40

A (1minute)

I=0.03CV＋15

A (5minutes)

CV＞1000

I=0.04CV＋100

A (1minute)

I=0.02CV＋25

A (5minutes)

V＝(V)

Rated Voltage

(tanδ)

Dissipation Factor(MAX)

Rated Voltage 160 200 250 350 400 450 500

tanδ

0.15 0.15 0.15 0.20 0.20 0.20 0.24

（20℃，

120Hz）

After life test with rated ripple current at conditions stated in the table below,

the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Case

Size

8×11.5, 10×12.5

10×16, 10×20

φD≧12.5

※500WV:10000hrs

(hrs)

Life Time

8000

10000

12000

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

160 200 250 350 400 450 500

（120Hz）

（−25℃）（20℃） 3

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

◆OPTION

Code

PET Sleeve

（Hz）

120

0.4

0.6

0.7

0.75

10k 100k≦

0.8

0.9

1.0

EFC

1∼5.6μF

0.2

0.3

Coeﬃcient

6.8∼15μF

22∼82μF

0.4

100∼220μF 0.45

◆PART NUMBER

□□□

Rated Voltage

BXC

Series

□□□□□

Rated Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
