50PX100MCA8X11.5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 50PX100MCA8X11.5

50PX100MCA8X11.5: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 100uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size44KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

50PX100MCA8X11.5 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 100uF, THROUGH HOLE MOUNT, RADIAL LEADED

50PX100MCA8X11.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.05 mA
Manufacturer's serial number	PX
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	200 mA
surface mount	NO
Delta tangent	0.12
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

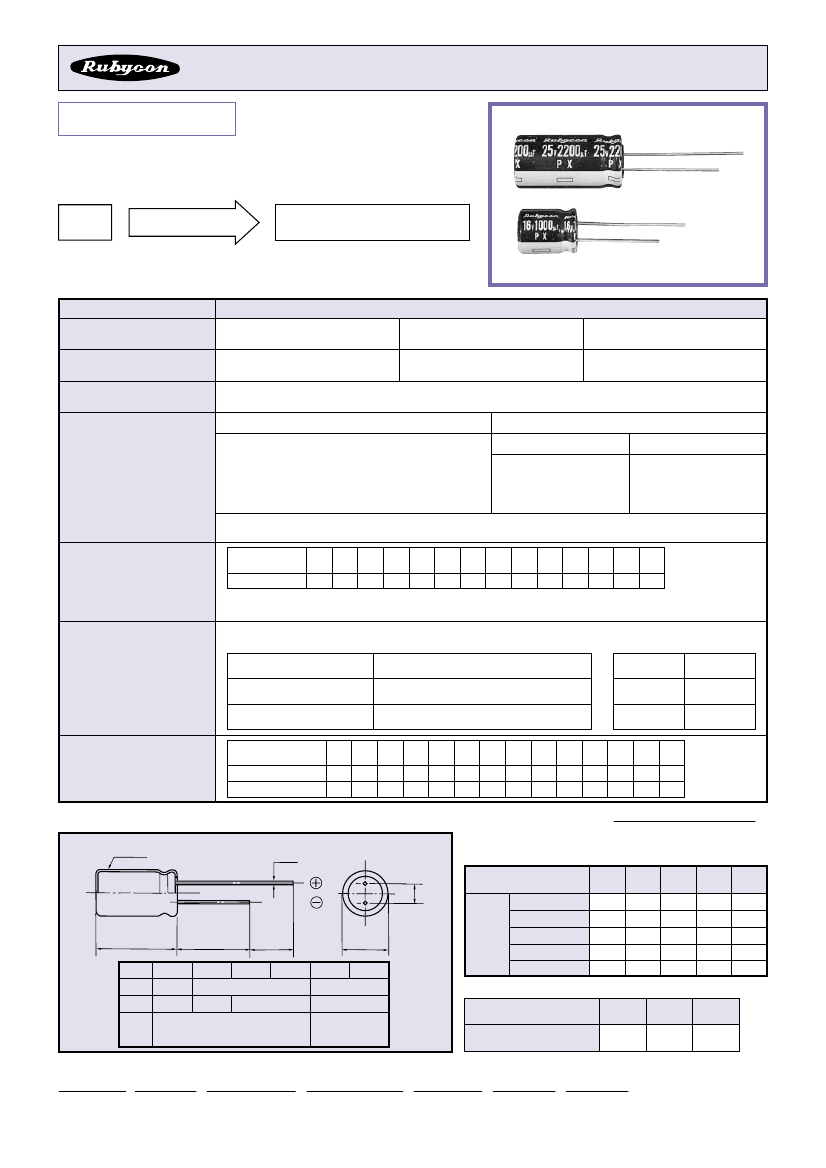

小½アルミニウム電解コンデンサ

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

シリーズ

SERIES

105℃ 小½化品

105℃ Miniaturized

½インピーダンス化

Low Impedance

YXF, YXG, ZL, ZLH

◆規格表 SPECIFICATIONS

項目

Items

カテゴリ温度範囲

Category Temperature Range

特性

Characteristics

−55∼＋105℃

6.3∼100V.DC

−40∼＋105℃

160∼400V.DC

±20%(20℃, 120Hz)

6.3∼100V.DC

I＝0.01CV又は3μAのいずれか大なる値以下

160∼450V.DC

CV≦1000

CV＞1000

I=0.1CV＋40μA以下(1分値) I=0.04CV＋100

μA以下(1分値)

I=0.1CV＋40

A (1minute)

I=0.04CV＋100

A (1minute)

I=0.03CV＋15μA以下(5分値) I=0.02CV＋25μA以下(5分値)

I=0.03CV＋15

A (5minutes)

I=0.02CV＋25

A (5minutes)

−25∼＋105℃

450V.DC

定格電圧範囲

Rated Voltage Range

静電容量許容差

Capacitance Tolerance

漏

れ

電

流

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

Leakage Current(MAX)

（定格電圧印加2分後)

I＝漏れ電流(μA)

C＝定格静電容量(μF) V＝定格電圧(V)

Leakage Current Rated Capacitance Rated Voltage

損失角の正接 (tanδ)

Dissipation Factor(MAX)

定格電圧(V)

6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

Rated Voltage

tanδ

0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.20 0.20 0.25 0.25 0.25

(20℃, 120Hz)

1000μFを越える

ものは1000μF増す毎に上表の値に0.02を加えた値とする。

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

105℃, 右表の時間定格電圧（リプル重畳）印加後、下記項目を満足すること。

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

耐

Endurance

久

性

静電容量変化率

Capacitance Change

損失角の正接

Dissipation Factor

漏

れ

電

流

Leakage Current

定格電圧(V)

Rated Voltage

Z(−25℃)/Z(20℃)

Z(−40℃)/Z(20℃)

6.3

初期値の±25％以内

Within ±25％ of the initial value.

規格値の200％以下

Not more than 200％ of the specified value.

規格値以下

Not more than the specified value.

ケース外径

Case Dia

φD≦8

φD≧10

時間(hrs)

Life Time

1000

2000

温

特

性

Low Temperature Stability

100 160 200 250 350 400 450

−

(120Hz)

（インピーダンス比）

Impedance Ratio(MAX)

◆寸法図 DIMENSIONS

スリーブ

SLEEVE

(mm)

◆リプル電流補正係数

MULTIPLIER FOR RIPPLE CURRENT

±0.5

φd

（1）

周波数係数 Frequency coefficient

周波数

（Hz）

Frequency

60 50） 120

（

0.50

0.65

0.80

1.00

500

1.20

1.10

1.05

1.30

1.15

1.10

10k≦

1.50

1.20

1.15

L＋α MAX

15MIN

4MIN

φD＋0.5MAX

φD

φd

6.3

12.5

0.5

0.6

2.5

3.5

5.0

100V以下 WV≦100:1.5

160V以上 WV≧160:2.0

0.8

7.5

2.0

1μF

2.2∼4.7μF

係数

Coefficient

10∼47μF

100∼1000μF

2200∼33000μF

周囲温度

（℃）

Coefficient

（2）

周囲温度係数 Temperature coefficient

Ambient Temperature

105

1.0

1.7

65≧

2.1

係数

◆呼称方法 PART NUMBER

□□□

定格電圧

Rated Voltage

シリーズ名

Series

□□□□□

定格静電容量

Rated Capacitance

□

静電容量許容差

Capacitance Tolerance

□□□

副記号

Option

□□

D×L

リード加工記号ケースサイズ

Lead Forming

Case Size
