395332004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395332004

395332004: Description15 A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size130KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395332004 Overview

15 A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK

395332004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	PA66
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	4
Rated current	15 A
Rated voltage	300 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

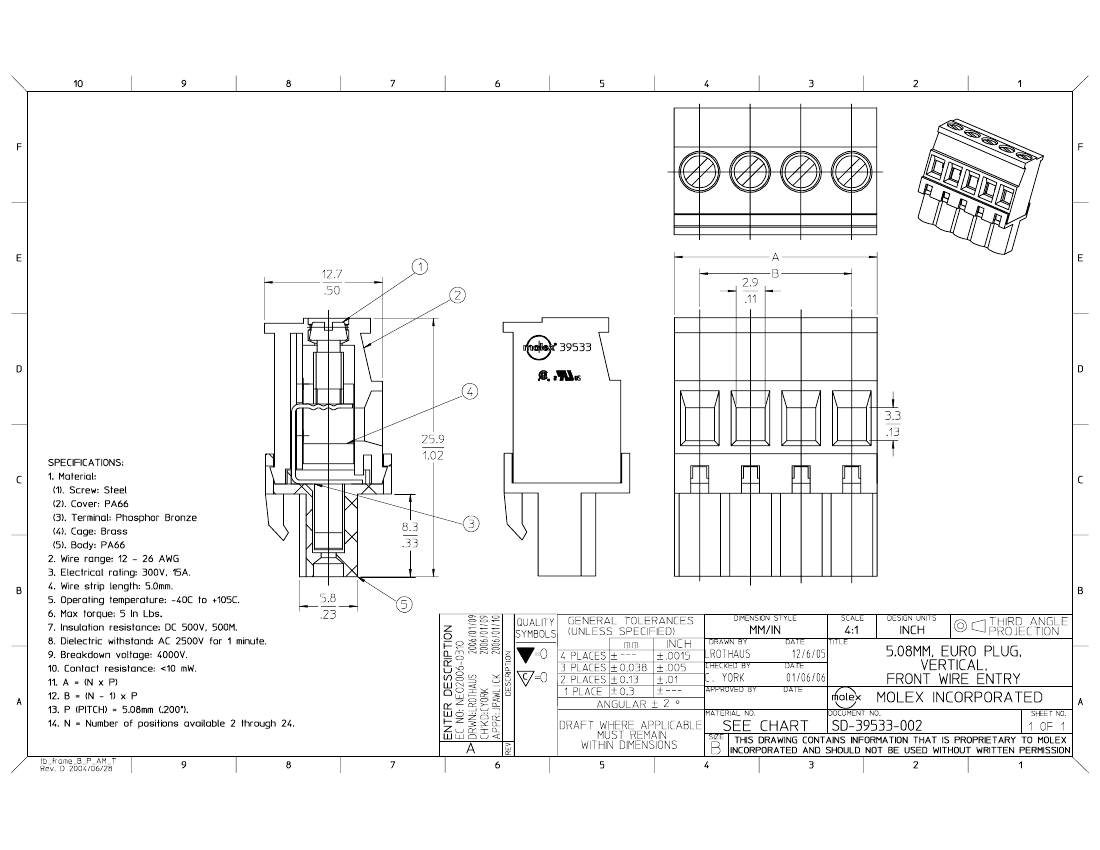

Drawing (PDF)

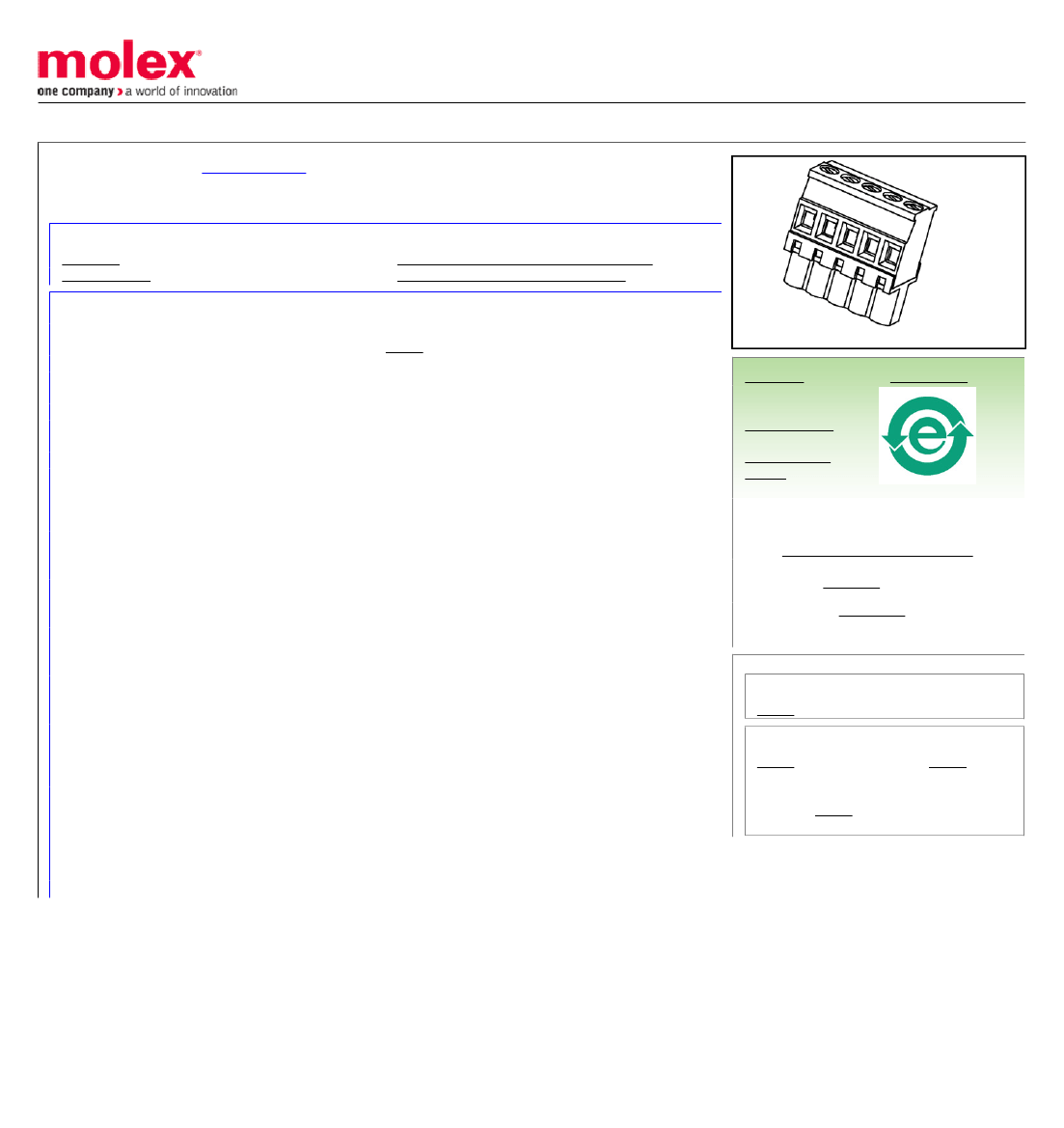

0395332004

Active

5.08mm (.200") Pitch Eurostyle™ Vertical Plug, Rear Wire Entry, 4 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Comments

Component Type

MolexKits

Product Literature Order No

Product Name

Type

Terminal Blocks

39533

Wire-to-Board

Rear Wire Entry

Plug

Yes

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

Yes

Vertical

0.200 In

5.08 mm

0.200 In

5.08 mm

Yes

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13 - 3.31

Search Parts in this Series

39533Series

Mates With

39531 Vertical PCB Header, 39532

Horizontal PCB Header, Most 5.08mm

(.200") Pitch Industry Standard PCB

Headers, 39538 Dual Level Header, Open

Ends

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39533-002

This document was generated on 06/07/2010
