Part Number

Search

399700311

Description
10.16mm
CategoryThe connector    terminals
File Size208KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

399700311 Overview

10.16mm

399700311 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresTHERMOPLASTIC
Fastening methodSCREW
Installation typeBOARD
Number of layers1
Rows1
Number of channels11
Rated current40 A
Rated voltage300 V
safety certificateUL
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Wire gauge8 AWG
Base Number Matches1
This document was generated on 05/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399700311
Active
10.16mm (.400") Beau™ Eurostyle™ Fixed Mount PCB Terminal Block, High Power
40A, 11 Circuits
Documents:
3D Model

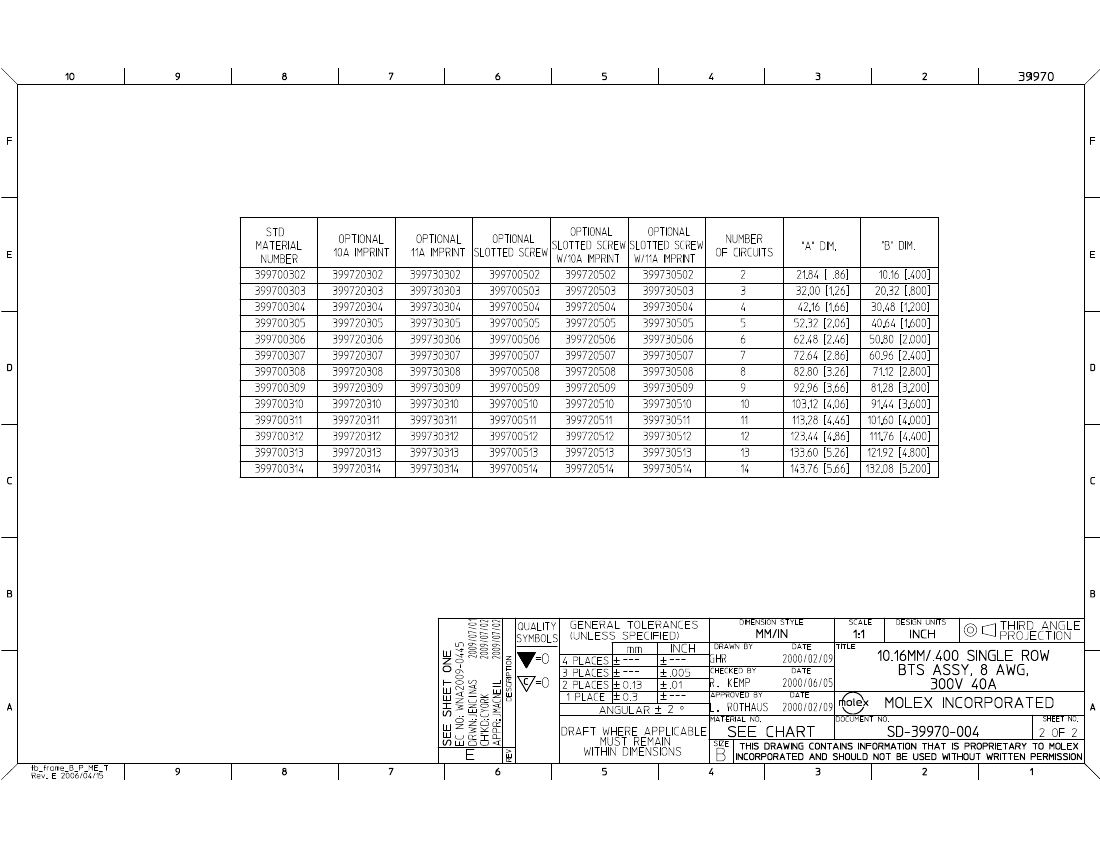

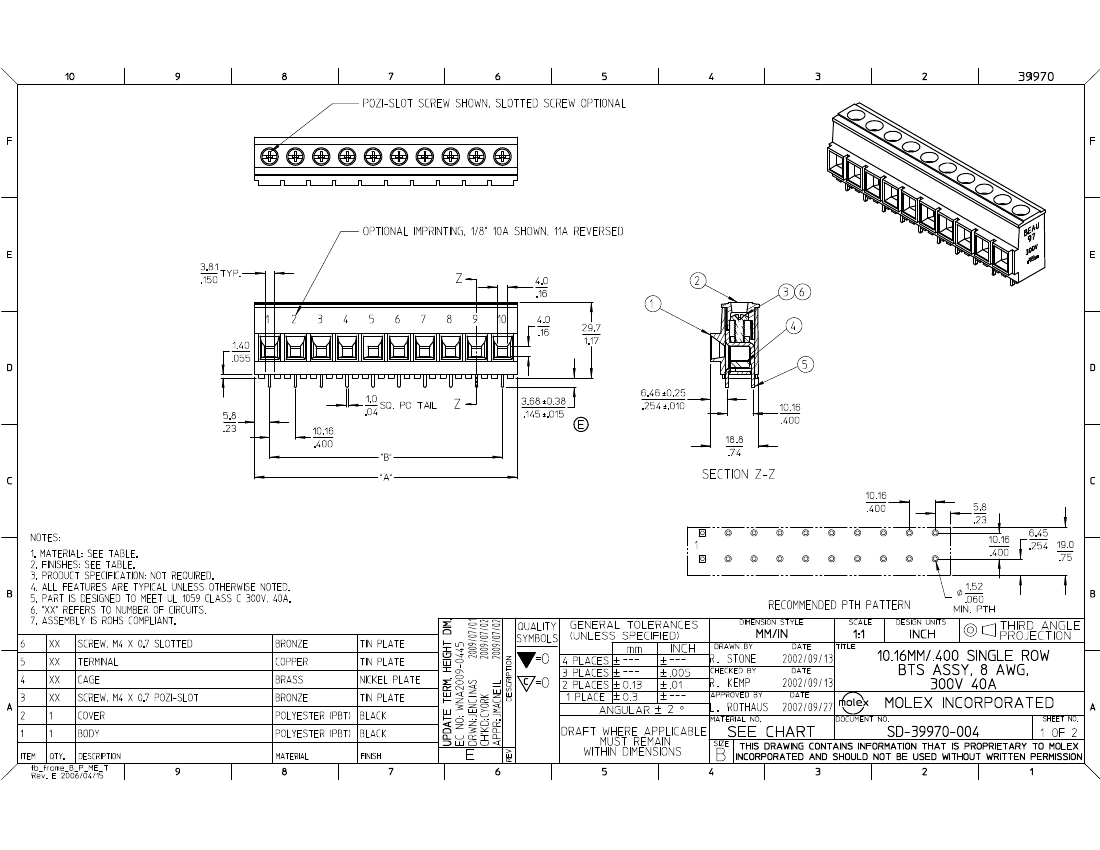

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39970
Wire-to-Board
One Piece
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
11
11
Horizontal
94V-0
None
Brass, Copper
Tin
Tin
1
Vertical
0.160 In
4.06 mm
None
No
0.400 In
10.16 mm
0.400 In
10.16 mm
150
3.8
150
3.8
N/A
Fully
No
No
130°C
Through Hole
10, 12, 14, 16, 18, 6, 8
0.75 - 6.0
Search Parts in this Series
39970Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
40A
300V
Material Info

399700311 Related Products

399700311 973511 973512
Description 10.16mm 10.16mm (.400") beau? eurostyle? fixed mount pcb terminal block, high power 40a, 11 circuits 10.16mm (.400") beau? eurostyle? fixed mount pcb terminal block, high power 40a, 12 circuits
Reach Compliance Code compli unknow unknow
ECCN code EAR99 EAR99 EAR99
Other features THERMOPLASTIC POLYAMIDE, 94V-0 POLYAMIDE, 94V-0
Fastening method SCREW SCREW SCREW
Installation type BOARD BOARD BOARD
Number of layers 1 1 1
Rows 1 1 1
Number of channels 11 11 12
Rated current 40 A 40 A 40 A
Rated voltage 300 V 300 V 300 V
safety certificate UL UL; CSA UL; CSA
Terminal and terminal strip types MODULAR TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK
Wire gauge 8 AWG 8 AWG 8 AWG
Maker - Molex Molex
Manufacturer's serial number - 39970 39970
Conductor cross section - 6 mm2 6 mm2
