357255510: DescriptionFlag Quick Disconnect, Female, for 14-16 AWG (2.08-1.31mmÂ²) Wire, Metal Strip, Tab 6.35 by 0.81mm (.250 by; File Size109KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

357255510 Overview

Flag Quick Disconnect, Female, for 14-16 AWG (2.08-1.31mmÂ²) Wire, Metal Strip, Tab 6.35 by 0.81mm (.250 by

Preview

Download Datasheet

View All

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0357255510

Active

Flag Quick Disconnect, Female, for 14-16 AWG (2.08-1.31mm²) Wire, Metal Strip, Tab

6.35 by 0.81mm (.250 by .032"), Left Angle Open Barrel, Post Tin Plating

Documents:

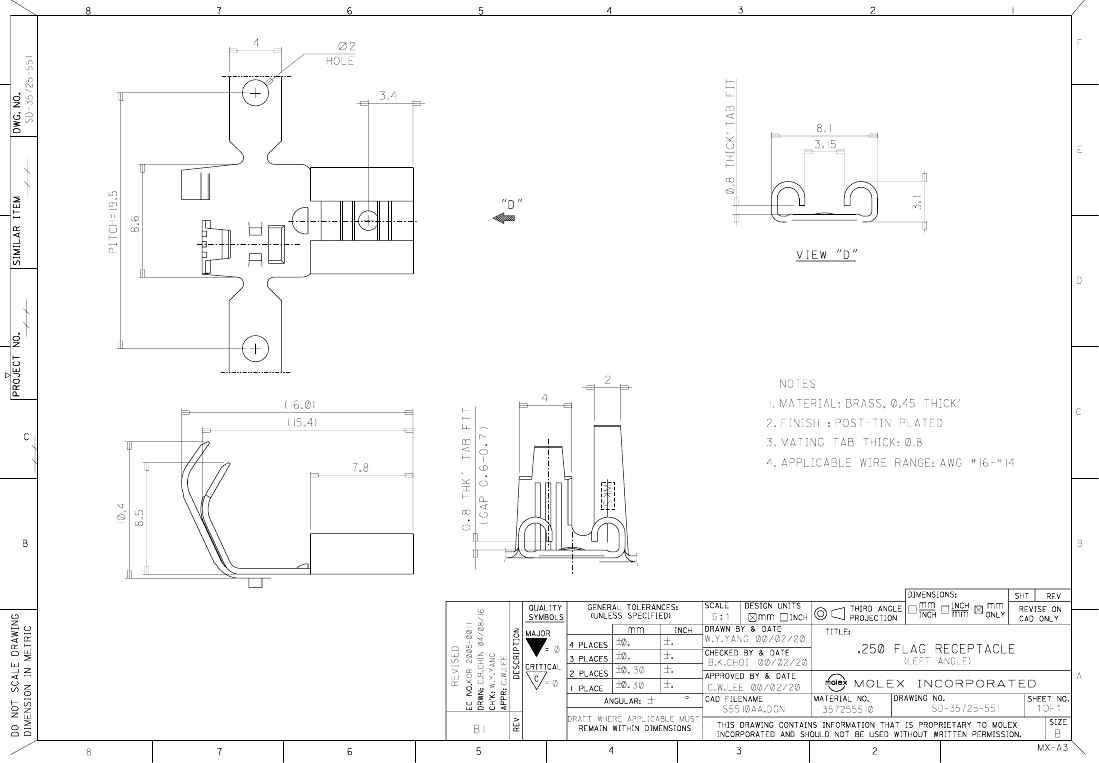

Drawing (PDF)

Product Specification PS-35725-551 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E92853

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Product Name

Type

Quick Disconnects

35725

Yes

Safelock

Quick Disconnect

Physical

Barrel Type

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Orientation

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Open

Female

None

Yes

Brass

Tin

Flag

Reel

0.8

0.81mm (.032")

6.35mm (.250")

-40°C to +105°C

Crimp or Compression

5.08mm (.200") max.

14, 16

1.30 - 2.00

Search Parts in this Series

35725Series

Use With

6.35mm (.250") Tab

Electrical

Voltage - Maximum

250V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35725-551

SD-35725-551

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
