GRF1H-08-0500-1-CA1-03SP1 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> GRF1H-08-0500-1-CA1-03SP1

GRF1H-08-0500-1-CA1-03SP1: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

GRF1H-08-0500-1-CA1-03SP1 Overview

Cable Assembly

GRF1H-08-0500-1-CA1-03SP1 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

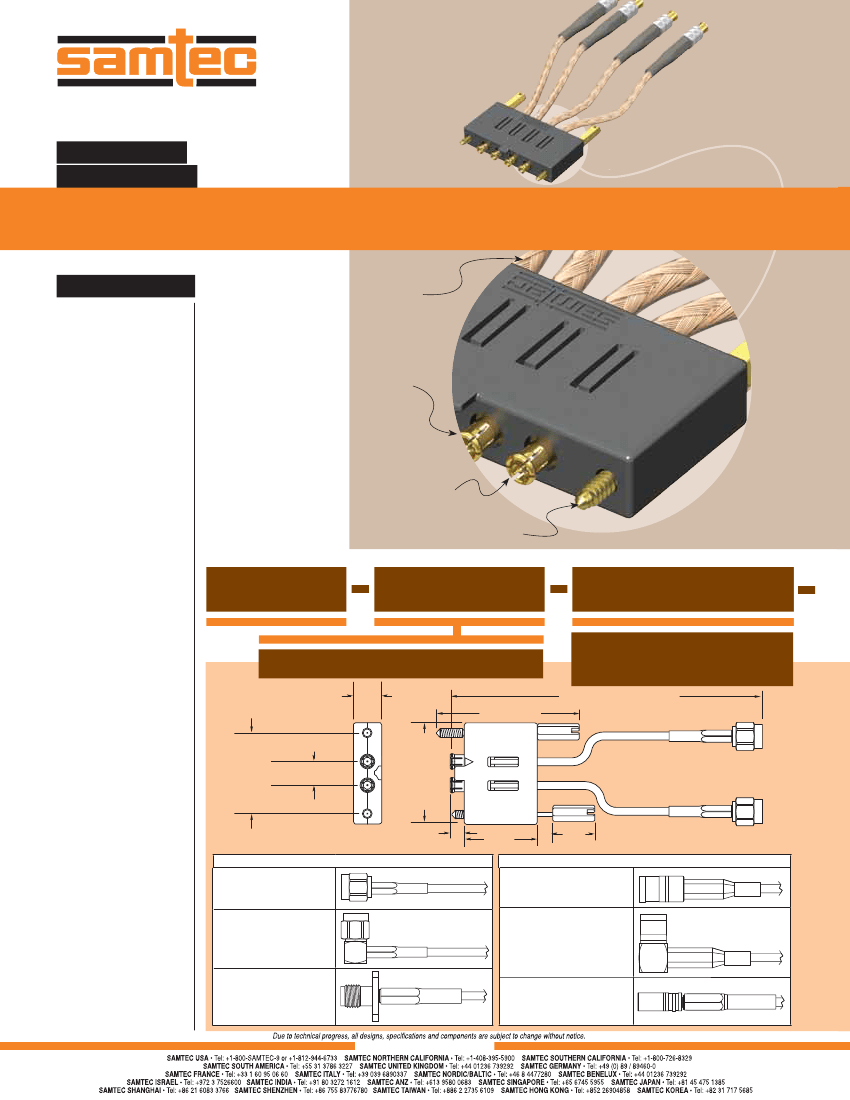

RF-13

GRF1H–04–0300–1–CA1–S–02SP1

(5,00 mm) .197"

GRF1H-C SERIES

50Ω HYBRID MICRO-MINI RF CABLE

SPECIFICATIONS

For complete speciﬁcations see

www.samtec.com?GRF1H-C

Mates with:

GRF1-J, SMA, MCX,

SMB5, MMCX, SSMB,

BNC5, TNC, NTPE

High performance

26 AWG RG 316

coax cable

RF Connector:

Shell Material:

Brass

(GRF, SMA, MCX, MMCX,

SMB, SSMB, BNC)

Insulator Material:

PTFE

Contact Material:

Brass

(GRF, SMA, MCX, MMCX,

SMB-J, BNC-P, TNC-P)

Phosphor Bronze

(SMB-P-ST, TNC-J, N Type)

BeCu

(SMB-P-RA, SSMB)

Copper Alloy

(BNC-J)

Operating Temp Range:

-40°C to +90°C

Impedance:

50Ω

RoHS Compliant:

Yes

2, 4, 6 or 8

Positions

MMCX-Scale

Connectors

Optional Captive

Panel Screws

RG 316 Cable:

Impedance:

50Ω

Capacitance:

96.432 pF/meter

Propagation Delay:

4.83 nsec/meter

Max Attenuation

(cable only):

1.25dB @ 1GHz for 1 meter

Conductor Size:

26 AWG,

(0,51 mm) .020" dia.

Conductor Material:

Silver Plated Copper

Insulator Material:

PTFE

Shield Material:

Silver Plated

Copper Clad Steel

Jacket Material:

FEP

Jacket Diameter:

(2,54 mm) .100"

Jacket Color:

Amber

RoHS Compliant:

Yes

GRF1H

NO. OF

POSITIONS

ASSEMBLED

LENGTH

–“XXXX”

–02, –04, –06, –08

(6,00)

.236

(28,58) 1.125

(No. of

Positions

(5,00) (No. of Positions -1)

x (5,00) .197

.197)

(7,20)

.283

No.

Positions

(5,00)

.197

(11,60)

.457

(2,86)

.112

(15,50)

.610

(8,89)

.350

= Assembled Length in millimeters

–0100 (0100 mm) 3.94" minimum

Assembled Length = XXXX

–01SP1 END OPTION SHOWN

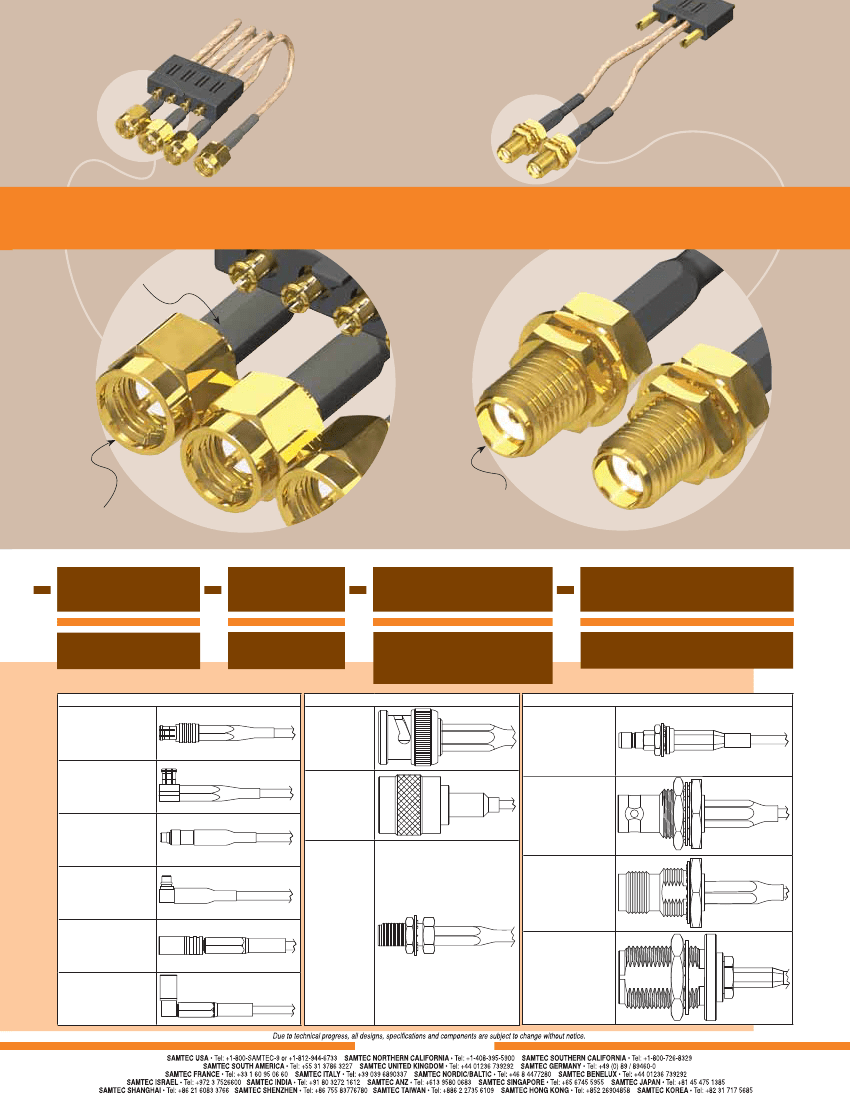

END OPTIONS

–01SP1 = SMA

Straight Plug

(30µ" (0,76 µm) Gold on Center

Contact, Gold Flash on Shell)

–01RP1 = SMA

Right Angle Plug

(30µ" (0,76 µm) Gold on Center

Contact, Gold Flash on Shell)

–07SP1 = SMB

Straight Plug

(30µ" (0,76 µm) Gold on Center

Contact, Gold Flash on Shell)

–07RP1 = SMB

Right Angle Plug

(30µ" (0,76 µm) Gold on Center

Contact, Gold Flash on Shell)

Note:

Cable lengths longer than

40.00" (1 meter) are not

supported with S.I. test data.

Note:

This Series is non-standard,

non-returnable.

–01PN1 = SMA

Straight Panel Mount Jack

(30µ" (0,76 µm) Gold on Center

Contact, Gold Flash on Shell)

–02SJ1 = MCX

Straight Jack

(30µ" (0,76 µm) Gold on Center

Contact, Gold Flash on Shell)

WWW.SAMTEC.COM
