EEWORLDEEWORLDEEWORLD

Part Number

Search

395021002

Description
8 A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
CategoryThe connector    terminals
File Size152KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

395021002 Overview

8 A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

395021002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
Is SamacsysN
Other featuresPA66
Fastening methodSOLDER
Installation typeBOARD
Number of layers1
Rows1
Number of channels2
Rated current8 A
Rated voltage300 V
safety certificateCUL; UL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1

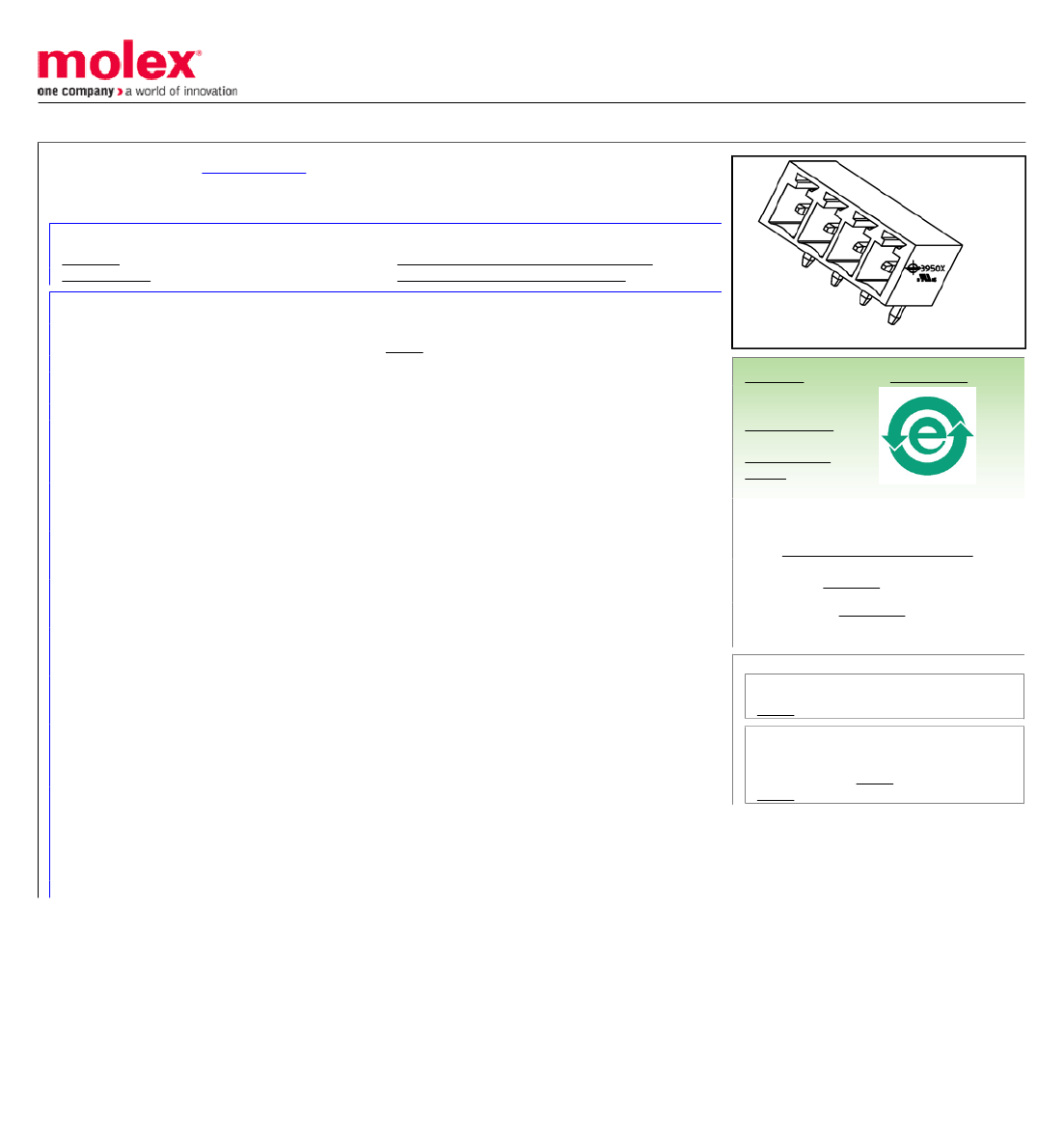

This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0395021002
Active
3.50mm (.138") Pitch Eurostyle™ Horizontal PCB Header, 2 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39502
Wire-to-Board
PCB Header
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
2
N/A
None
1
Horizontal
0.138 In
3.50 mm
0.098 In
2.50 mm
No
0.138 In
3.50 mm
Yes
Fully
No
-40°C to +105°C
N/A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39502Series
Mates With
Most 3.50mm (.138") Pitch Industry
Standard Plugs, 39500 Horizontal Plug,
39503 Vertical Plug
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Material Info

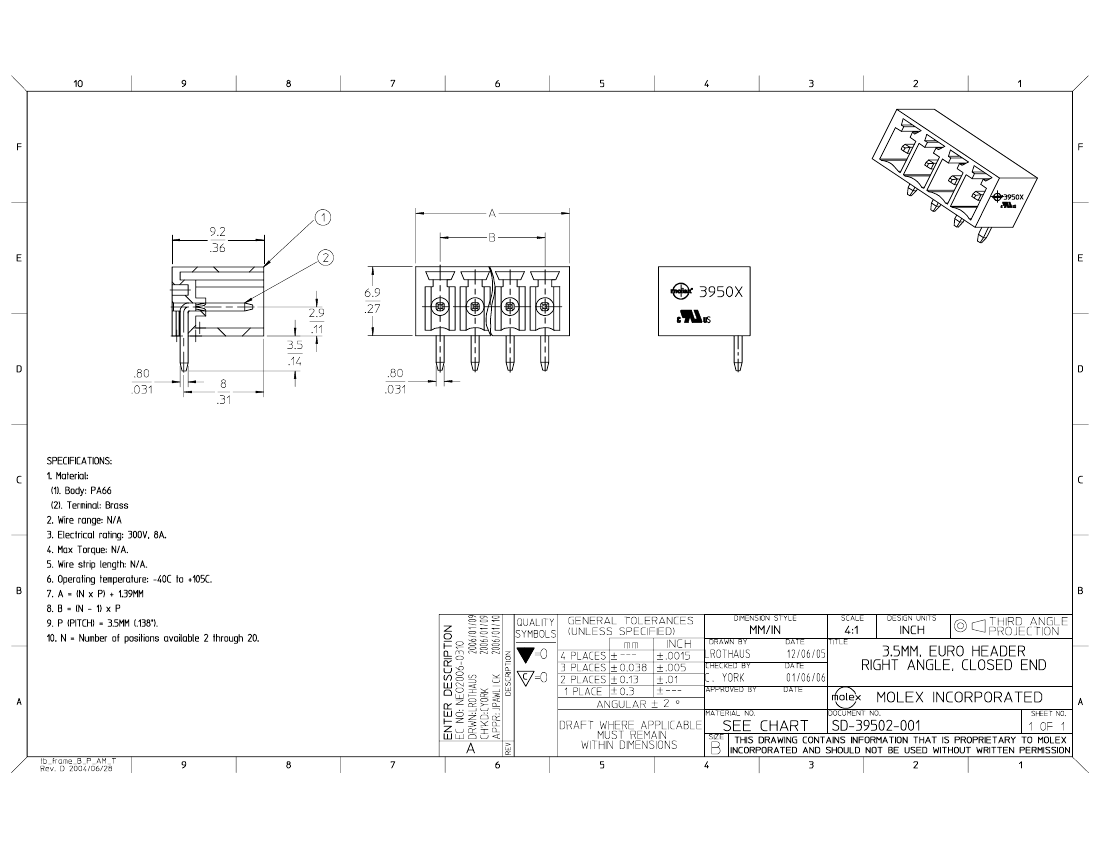

Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39501-002, SD-39502-001
This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
