395232010: Description5.00mm; CategoryThe connector terminals; File Size130KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395232010 Overview

5.00mm

395232010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395232010

Active

5.00mm (.197") Pitch Eurostyle™ Vertical Plug, Rear Wire Entry, 10 Circuits

Documents:

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39523

Wire-to-Board

Rear Wire Entry

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

Yes

Vertical

0.197 In

5.00 mm

Yes

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13 - 3.31

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Search Parts in this Series

39523Series

Mates With

39521 Vertical PCB Header, 39522

Horizontal PCB Header, Most 5.00mm

(.197") Pitch Industry Standard PCB

Headers, 39528 Dual Level PCB Header,

Open Ends

Material Info

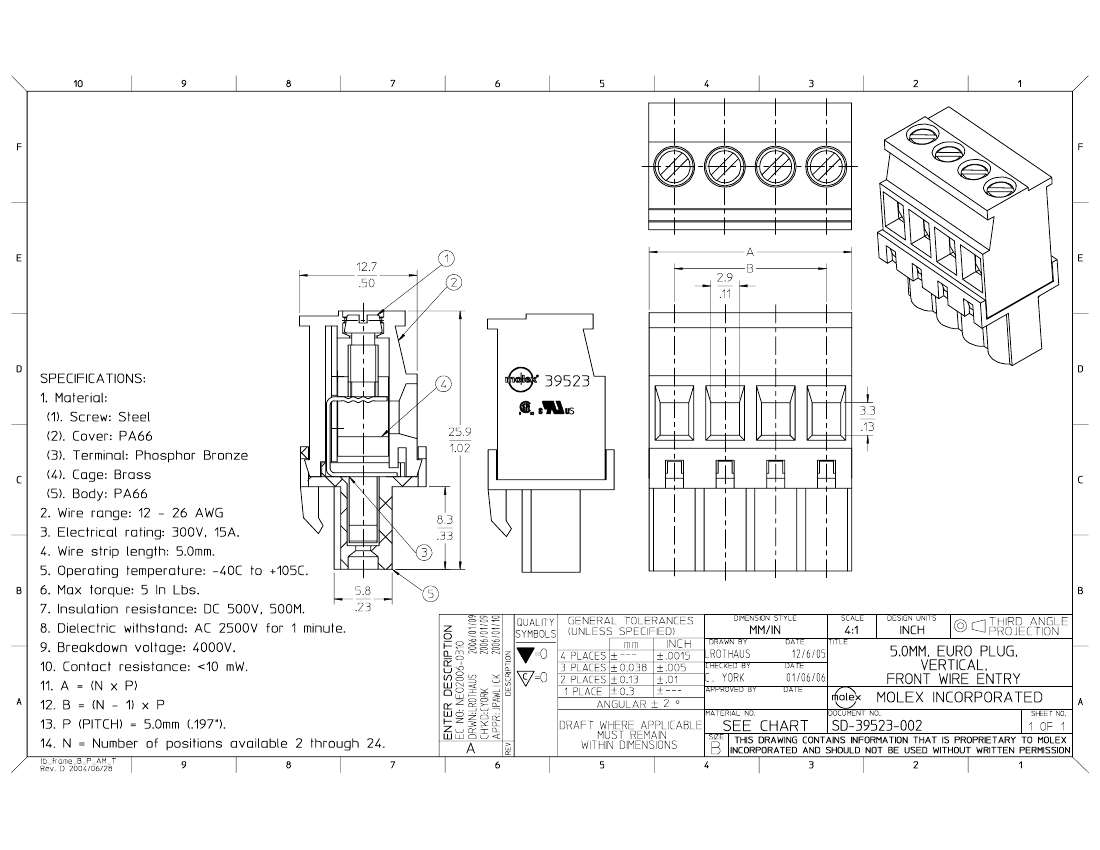

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39523-002

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
