Part Number:
Status:
Description:
0395373004
Active
5.08mm (.200") Pitch Eurostyle™ Vertical Plug, with Retention Screws, Front Wire
Entry, 4 Circuits
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39537
Wire-to-Board
Front Wire Entry
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
4
Horizontal
Yes
1
Vertical
No
0.200 In
5.08 mm
Yes
No
-40°C to +105°C
12, 14, 16, 18, 20, 22, 24, 26
0.13 - 3.31
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Search Parts in this Series
39537Series
Mates With
Most 5.08mm (.200") Pitch Industry
Standard PCB Headers, 39535 Vertical
PCB Header with Threaded Retention
Inserts, 39536 Horizontal PCB Header with
Threaded Retention Inserts
Material Info
Reference - Drawing Numbers

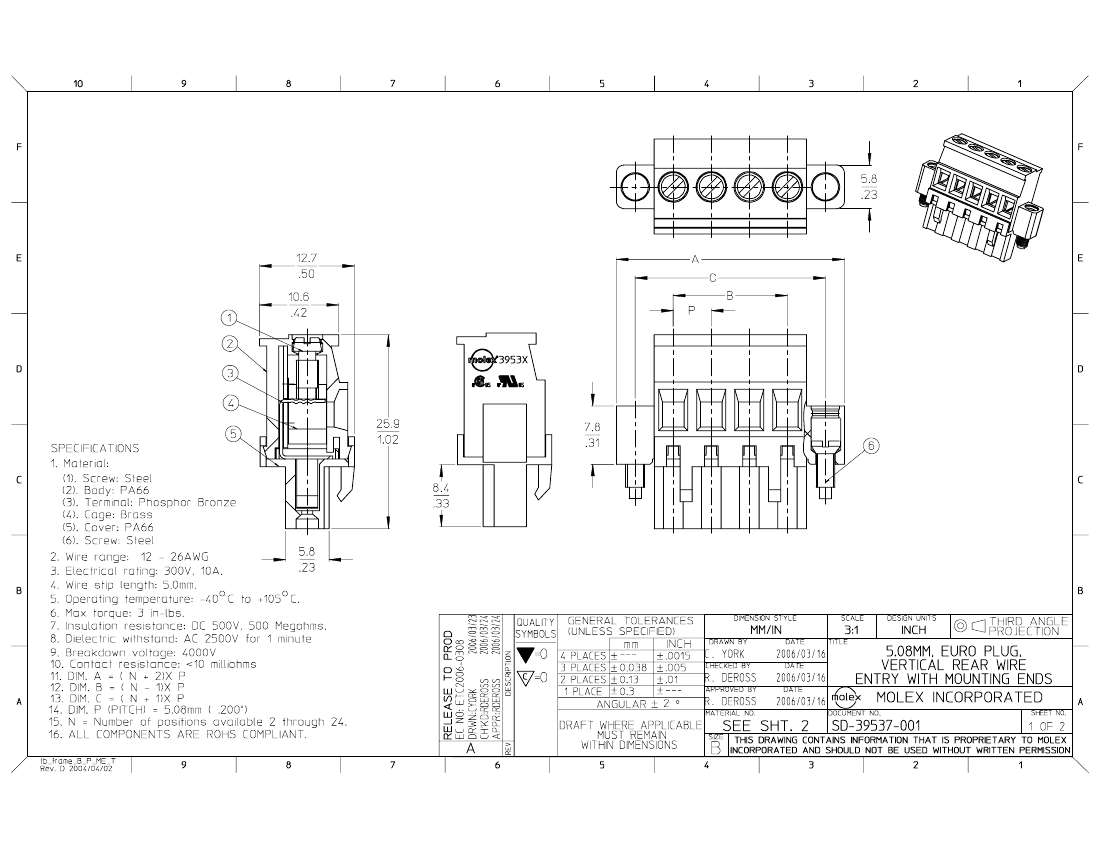

Sales Drawing
SD-39537-001
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Material Numbers
Black
100% Tin
Printing Options
Description
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
5.08mm, Euro Plug, Vertical RWE, Mounting Ends
Circuit size
None
10AV
11AV
None
30 u" Gold
Printing Options
10AV
11AV
None
100% Tin
Printing Options
10AV
11AV
None
Green
30 u" Gold
Printing Options
10AV
11AV
mm
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
66.0
71.1
76.2
81.3
86.4
91.4
96.5
101.6
106.7
111.8
116.8
121.9
127.0
132.1
Dim. A
inch
0.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
2.60
2.80
3.00
3.20
3.40
3.60
3.80
4.00
4.20
4.40
4.60
4.80
5.00
5.20
mm
5.1
10.2
15.2
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
66.0
71.1
76.2
81.3
86.4
91.4
96.5
101.6
106.7
111.8
116.8
Dimensional Information
Dim B
inch
0.20
0.40
0.60
0.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
2.60
2.80
3.00
3.20
3.40
3.60
3.80
4.00
4.20
4.40
4.60
mm
15.2
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
66.0
71.1
76.2
81.3
86.4
91.4
96.5
101.6
106.7
111.8
116.8
121.9
127.0
Dim C
inch
0.60
0.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
2.60
2.80
3.00
3.20
3.40
3.60
3.80
4.00
4.20
4.40
4.60
4.80
5.00
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
395373002 395373302 395373402 395373502 395373802 395373902 395378002 395378302 395378402 395378502 395378802 395378902
395373003 395373303 395373403 395373503 395373803 395373903 395378003 395378303 395378403 395378503 395378803 395378903
395373004 395373304 395373404 395373504 395373804 395373904 395378004 395378304 395378404 395378504 395378804 395378904
395373005 395373305 395373405 395373505 395373805 395373905 395378005 395378305 395378405 395378505 395378805 395378905
395373006 395373306 395373406 395373506 395373806 395373906 395378006 395378306 395378406 395378506 395378806 395378906
395373007 395373307 395373407 395373507 395373807 395373907 395378007 395378307 395378407 395378507 395378807 395378907
395373008 395373308 395373408 395373508 395373808 395373908 395378008 395378308 395378408 395378508 395378808 395378908
395373009 395373309 395373409 395373509 395373809 395373909 395378009 395378309 395378409 395378509 395378809 395378909
395373010 395373310 395373410 395373510 395373810 395373910 395378010 395378310 395378410 395378510 395378810 395378910
395373011 395373311 395373411 395373511 395373811 395373911 395378011 395378311 395378411 395378511 395378811 395378911
395373012 395373312 395373412 395373512 395373812 395373912 395378012 395378312 395378412 395378512 395378812 395378912
395373013 395373313 395373413 395373513 395373813 395373913 395378013 395378313 395378413 395378513 395378813 395378913
395373014 395373314 395373414 395373514 395373814 395373914 395378014 395378314 395378414 395378514 395378814 395378914
395373015 395373315 395373415 395373515 395373815 395373915 395378015 395378315 395378415 395378515 395378815 395378915
395373016 395373316 395373416 395373516 395373816 395373916 395378016 395378316 395378416 395378516 395378816 395378916
395373017 395373317 395373417 395373517 395373817 395373917 395378017 395378317 395378417 395378517 395378817 395378917
395373018 395373318 395373418 395373518 395373818 395373918 395378018 395378318 395378418 395378518 395378818 395378918
395373019 395373319 395373419 395373519 395373819 395373919 395378019 395378319 395378419 395378519 395378819 395378919
395373020 395373320 395373420 395373520 395373820 395373920 395378020 395378320 395378420 395378520 395378820 395378920
395373021 395373321 395373421 395373521 395373821 395373921 395378021 395378321 395378421 395378521 395378821 395378921
395373022 395373322 395373422 395373522 395373822 395373922 395378022 395378322 395378422 395378522 395378822 395378922
395373023 395373323 395373423 395373523 395373823 395373923 395378023 395378323 395378423 395378523 395378823 395378923
395373024 395373324 395373424 395373524 395373824 395373924 395378024 395378324 395378424 395378524 395378824 395378924
