Part Number:
Status:
Overview:
Description:
0022012125
Active
kk
2.54mm (.100") Pitch KK® Crimp Terminal Housing, Friction Ramp, 12 Circuits, Use
with 4809
Documents:
3D Model

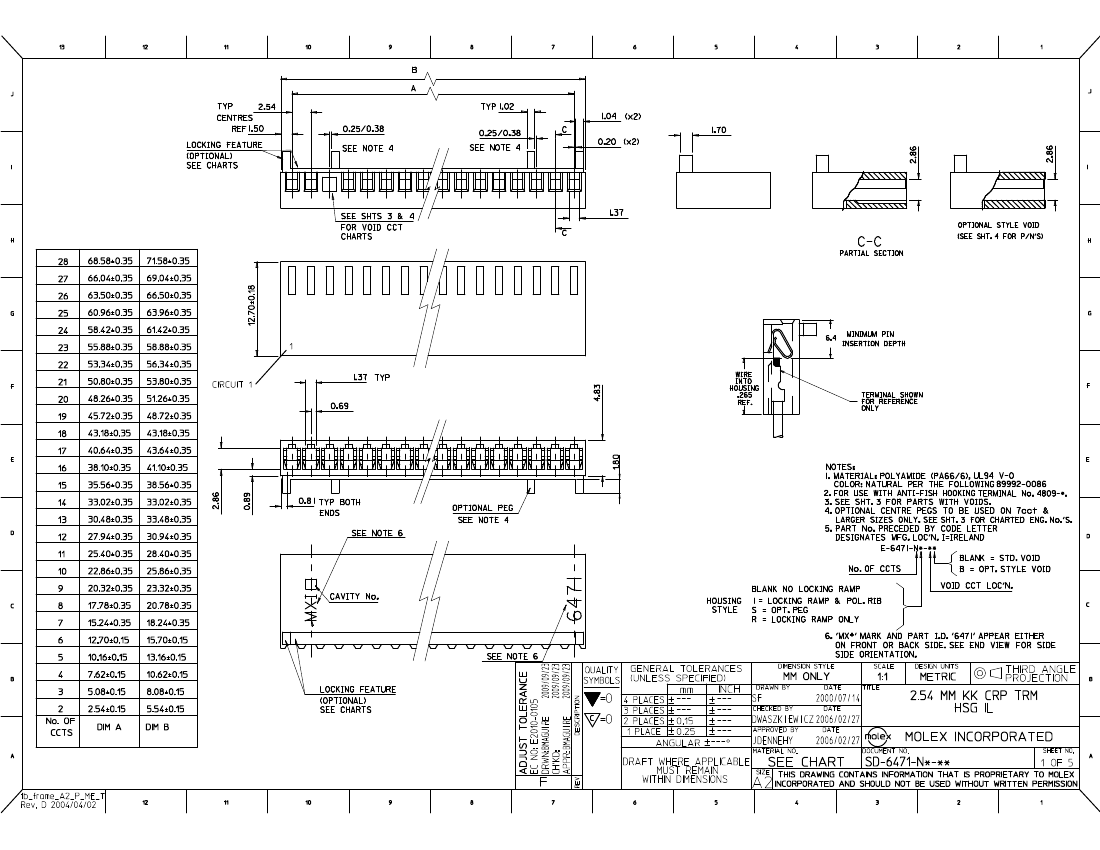

Drawing (PDF)
Product Specification PS-10-07 (PDF)
Product Specification PS-99020-0088 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19880
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Overview
Product Name
Crimp Housings
6471
kk
KK®
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
12
Natural (White)
94V-0
Female
No
Yes
Nylon
1
Bag
No
0.100 In
2.54 mm
Yes
No
0°C to +75°C
Search Parts in this Series
6471Series
Mates With
2.54mm (.100") Pitch KK ® PCB Headers
Use With
4809 KK® Crimp Terminal
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
6471-12(I)
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-10-07, PS-99020-0088

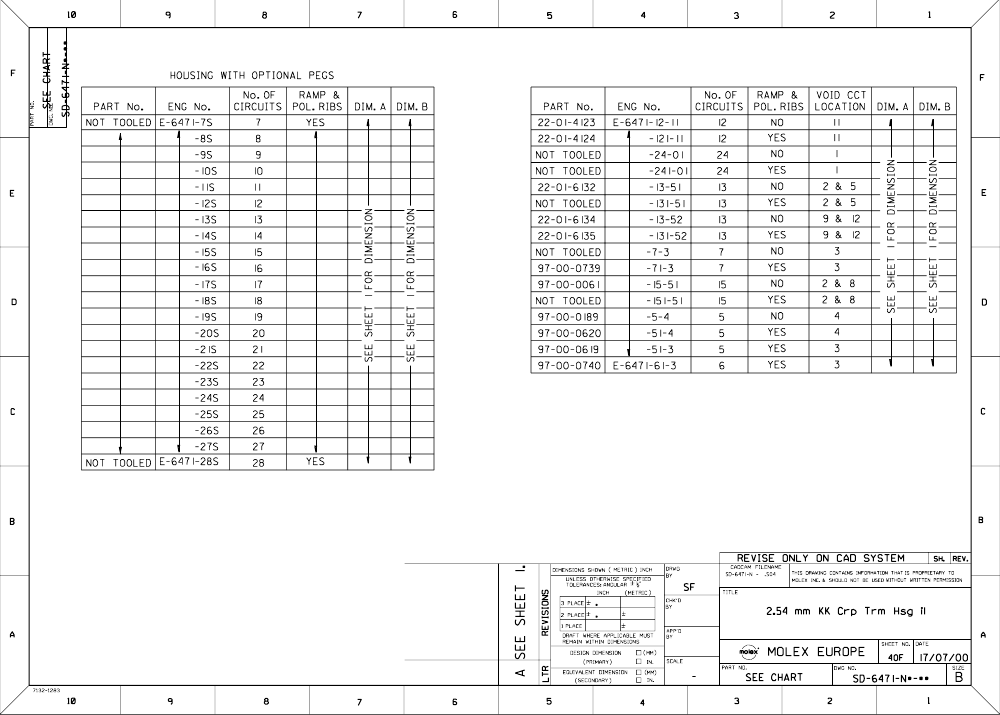

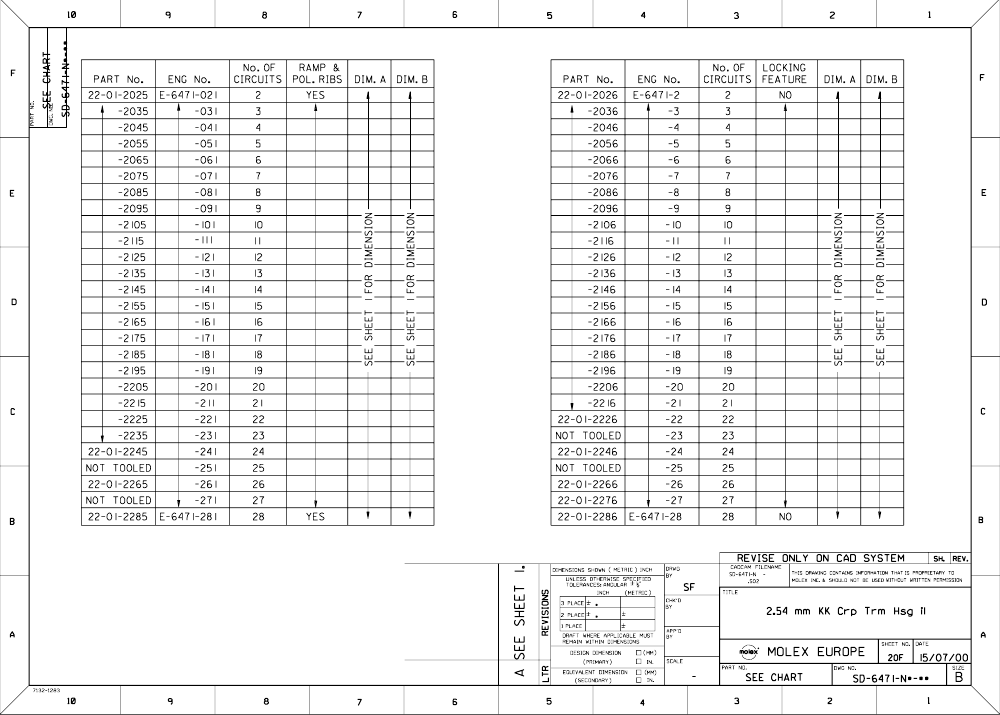

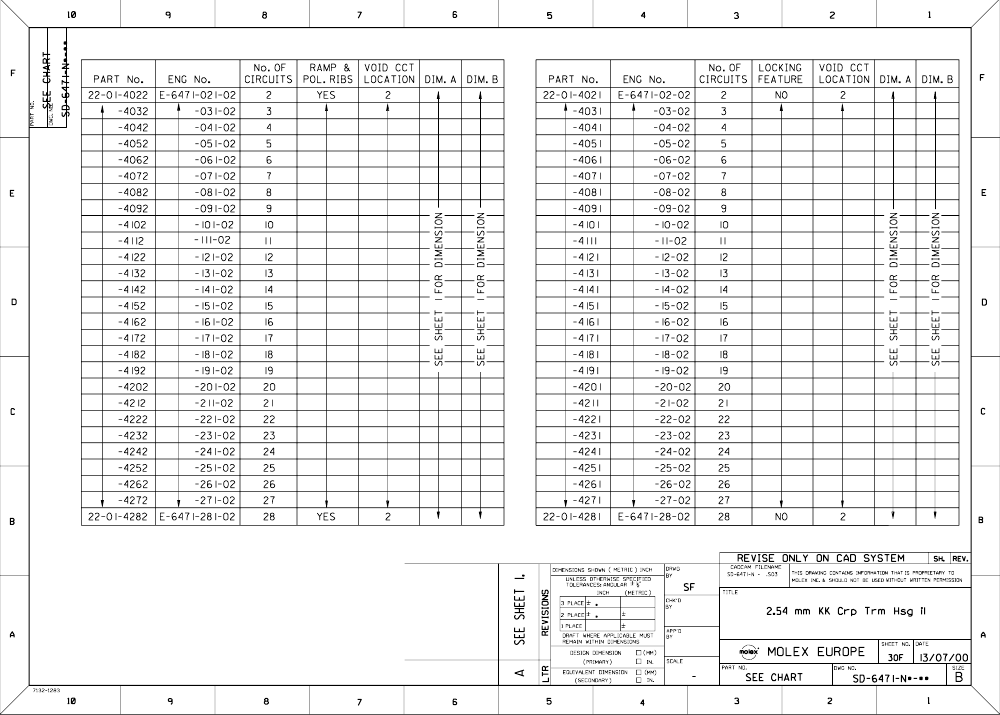

SD-6471-N*-**, SDE-6471-N*-*
