SH-1G-02 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SH-1G-02

Preview

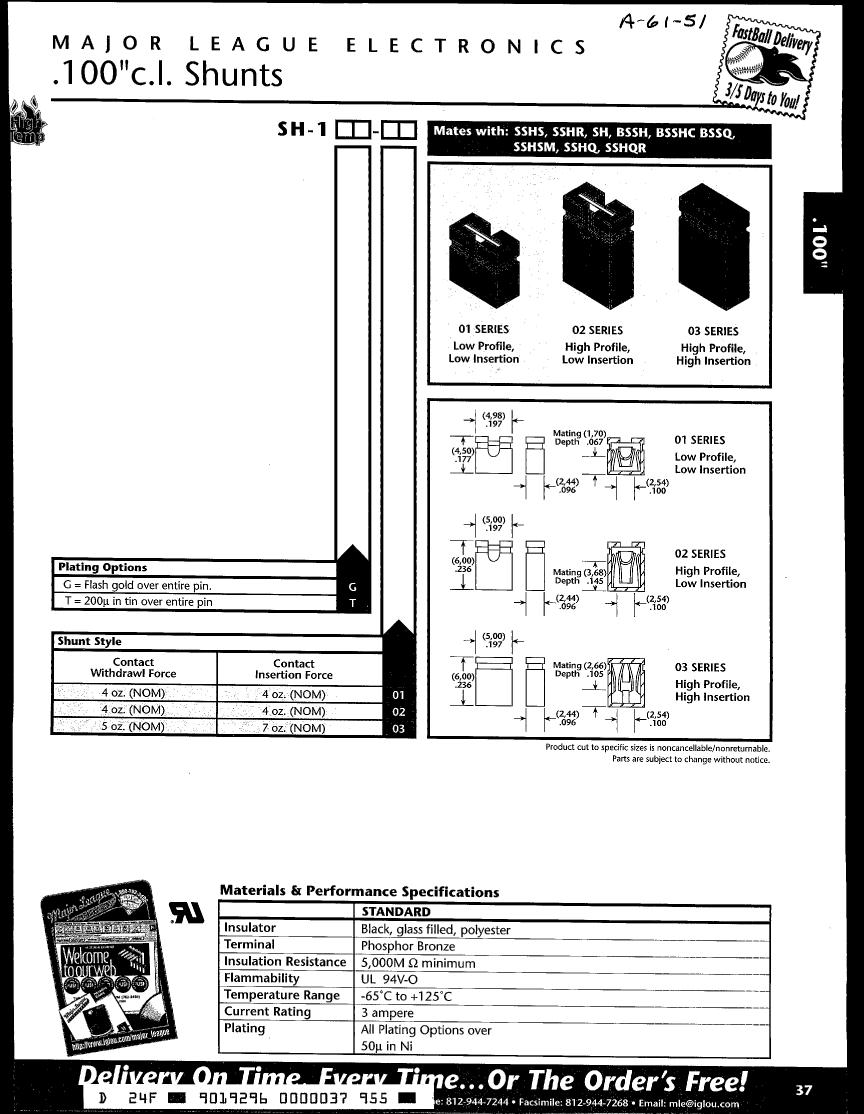

SH-1G-02: DescriptionInterconnection Device; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet Parametric Compare View All

SH-1G-02 Overview

Interconnection Device

SH-1G-02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Major League Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.096 inch
subject depth	0.236 inch
body length	0.197 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
maximum insertion force	1.112 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	SH-1
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	2
Evacuation force-minimum value	1.112 N

Preview

Download Datasheet

View All

SH-1G-02 Related Products

	SH-1G-02	SH-1G-01	SH-1G-03	SH-1T-01	SH-1T-02	SH-1T-03
Description	Interconnection Device	Interconnection Device	Interconnection Device	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Major League Electronics	Major League Electronics	Major League Electronics	Major League Electronics	Major League Electronics	Major League Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.096 inch	0.096 inch	0.096 inch	0.096 inch	0.096 inch	0.096 inch
subject depth	0.236 inch	0.177 inch	0.236 inch	0.177 inch	0.236 inch	0.236 inch
body length	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	SN ON NI	SN ON NI	SN ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
maximum insertion force	1.112 N	1.112 N	1.946 N	1.112 N	1.112 N	1.946 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	SH-1	SH-1	SH-1	SH-1	SH-1	SH-1
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	200u inch	200u inch	200u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	2	2	2	2	2	2
Evacuation force-minimum value	1.112 N	1.112 N	1.39 N	1.112 N	1.112 N	1.39 N
