TN80C196KR datasheet, PDF - EEWORLD Datasheet

TN80C196KR: DescriptionCOMMERCIAL/EXPRESS CHMOS MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，25 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

TN80C196KR Overview

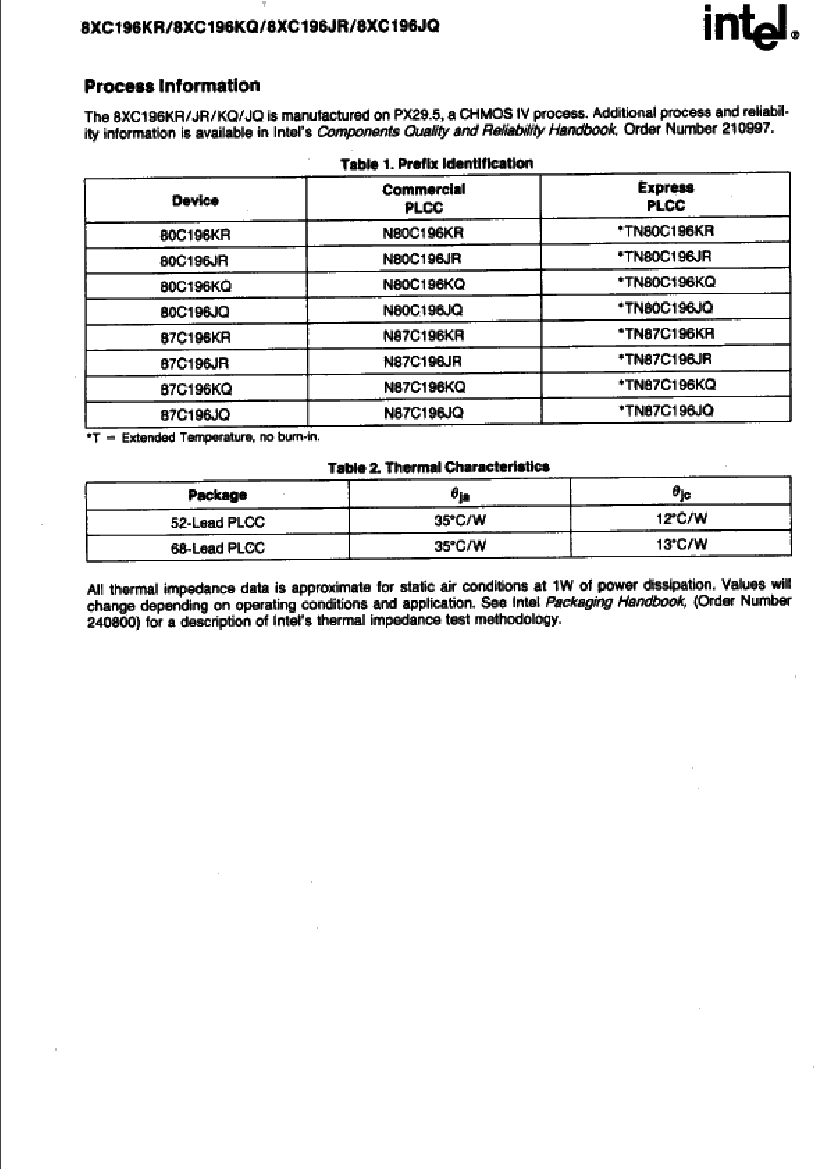

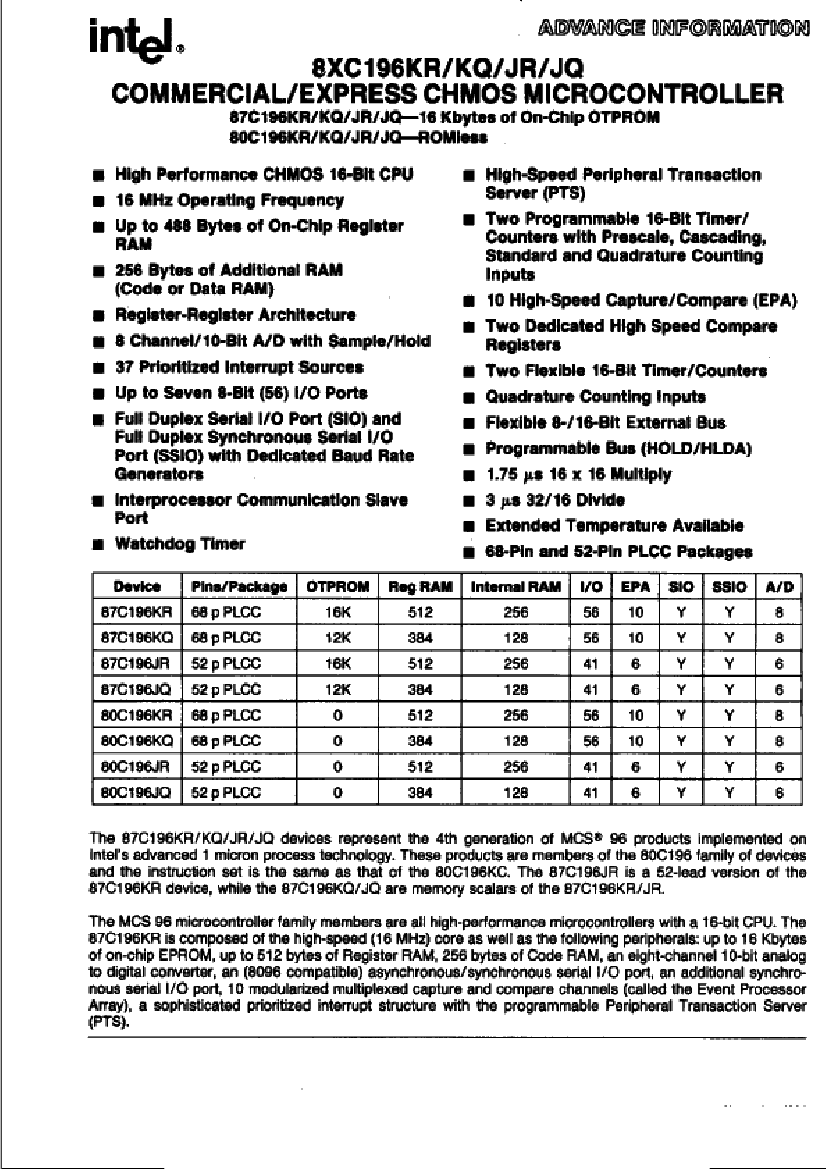

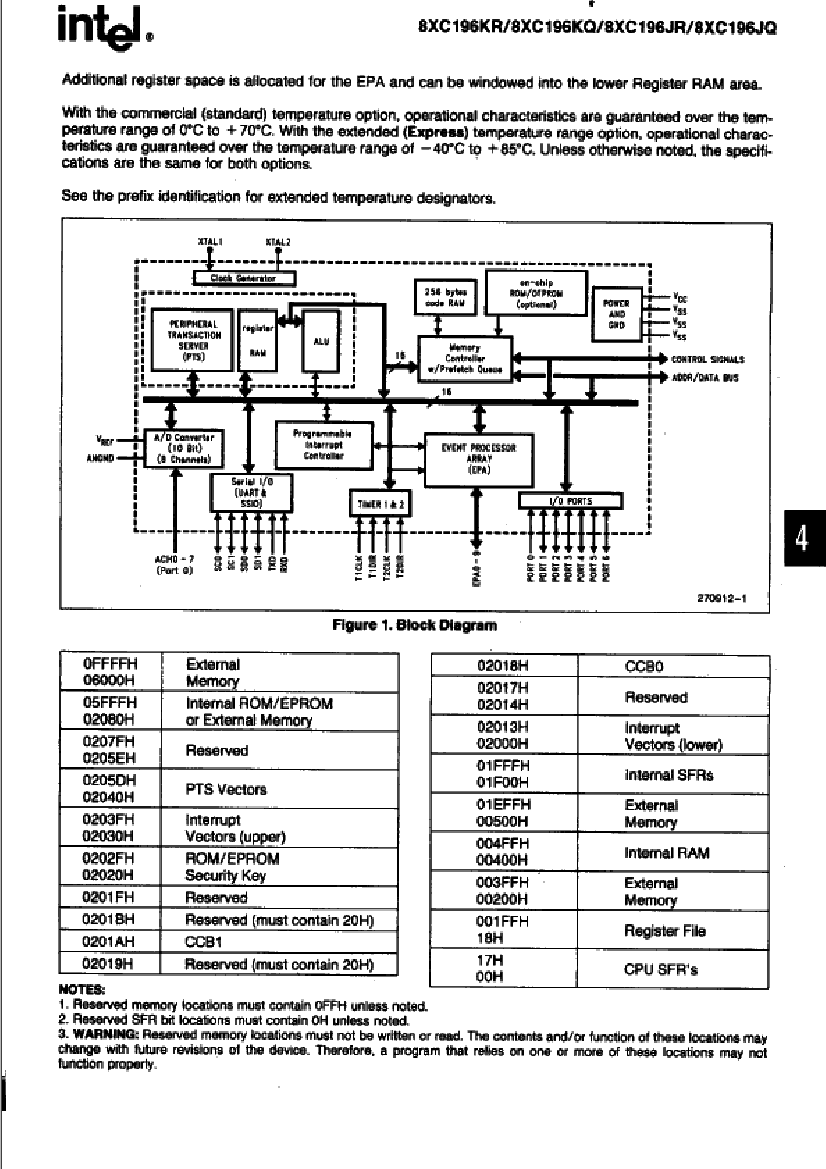

COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	LCC
package instruction	QCCJ, LDCC68,1.0SQ
Contacts	68
Reach Compliance Code	compliant
Has ADC	YES
Other features	256 X 8 RAM FOR CODE
Address bus width	16
bit size	16
boundary scan	NO
CPU series	8096
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	56
Number of serial I/Os	2
Number of terminals	68
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	768
RAM (number of words)	512
rom(word)	0
speed	8 MHz
Maximum slew rate	75 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)

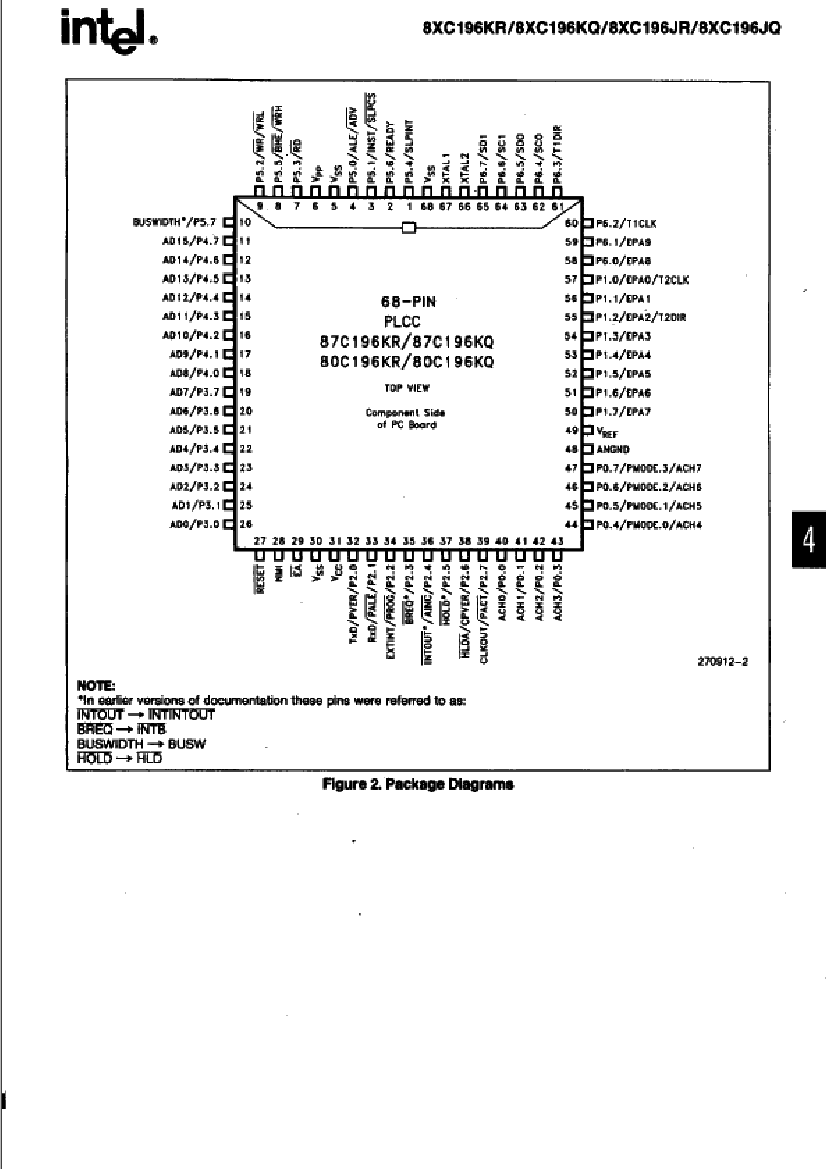

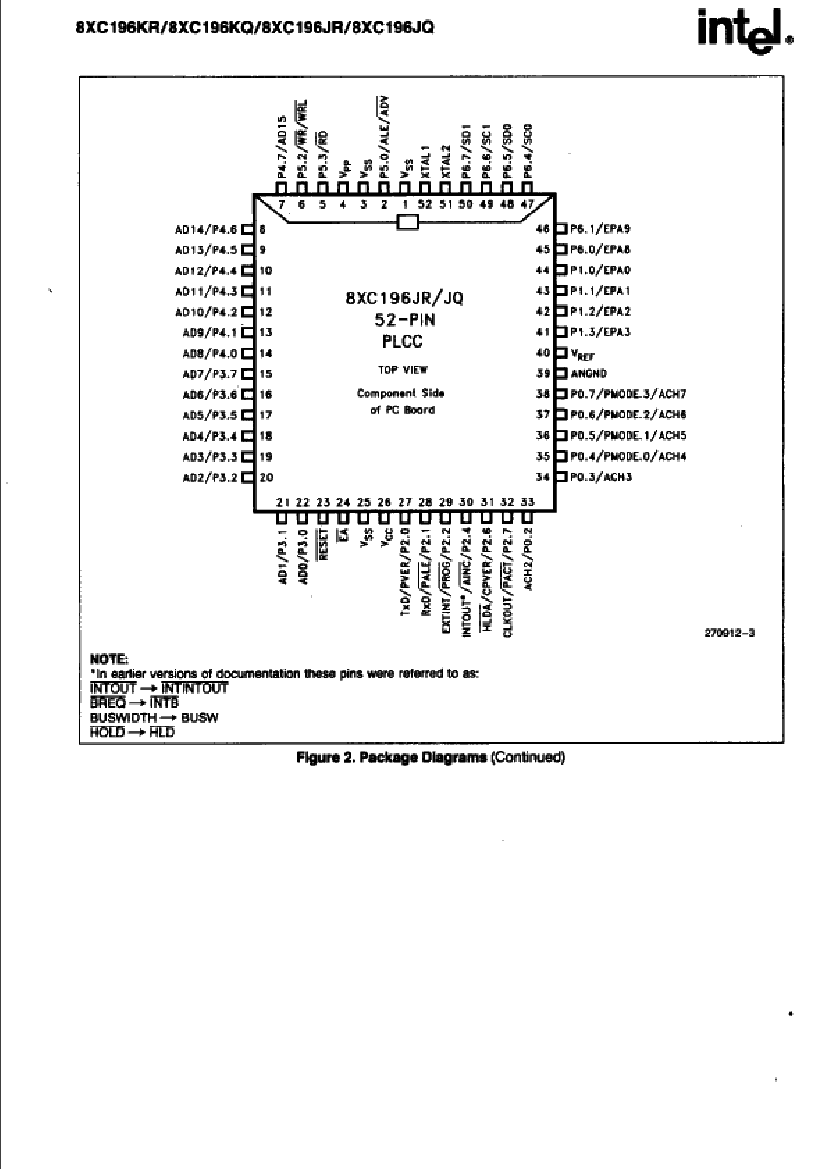

Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
