TN80C196NT datasheet, PDF - EEWORLD Datasheet

TN80C196NT: DescriptionIC MPU 16BIT 5V 20MHZ EXT 68PLCC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，31 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

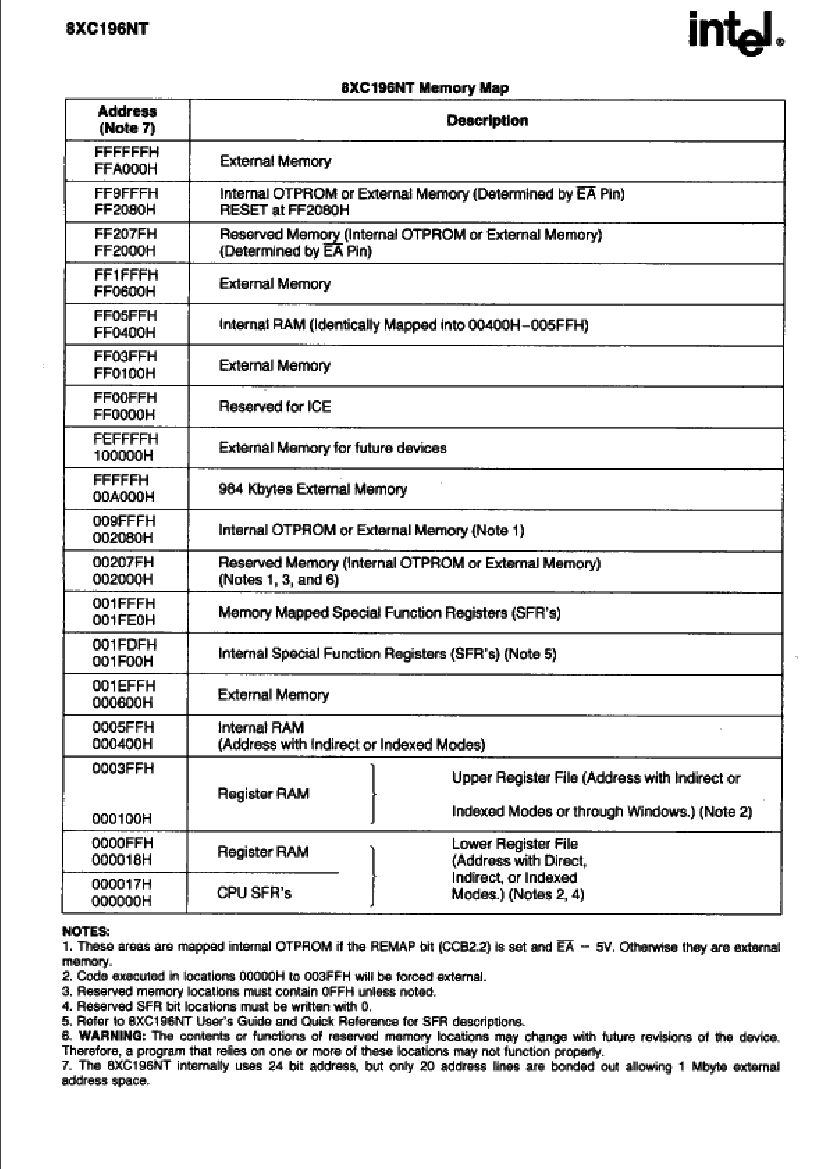

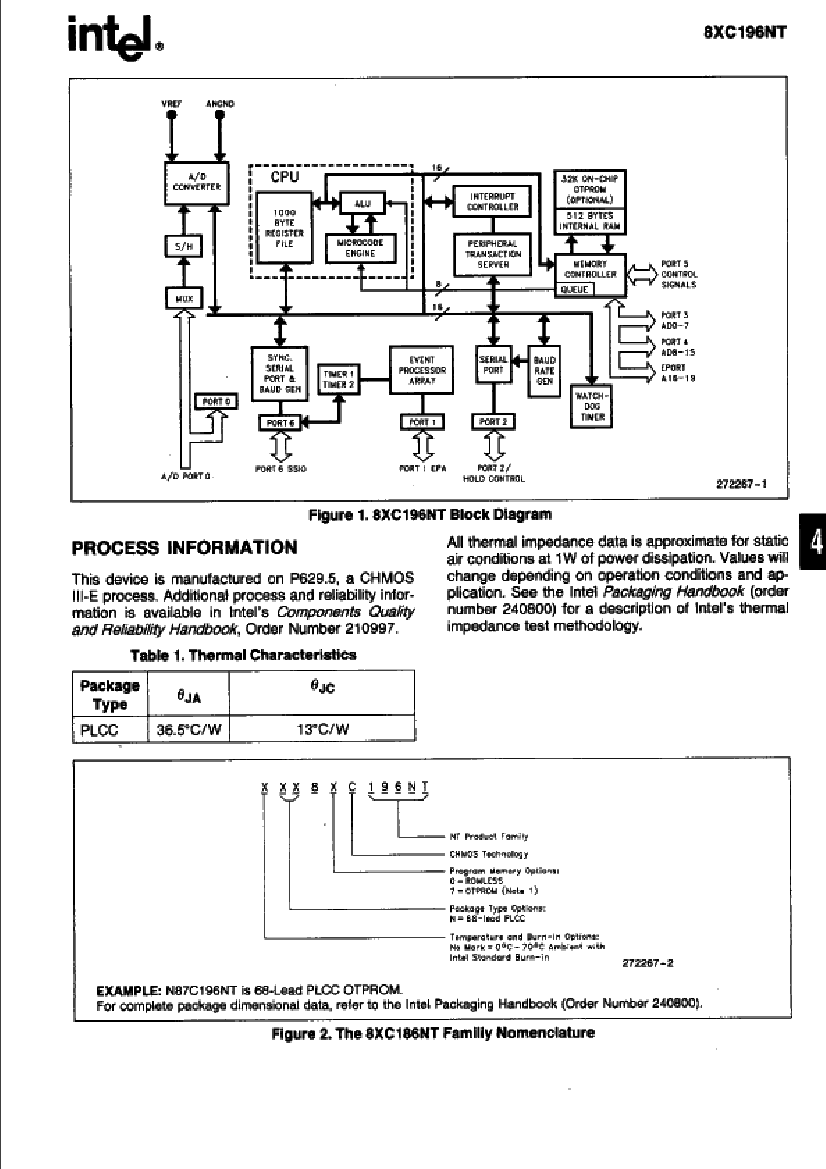

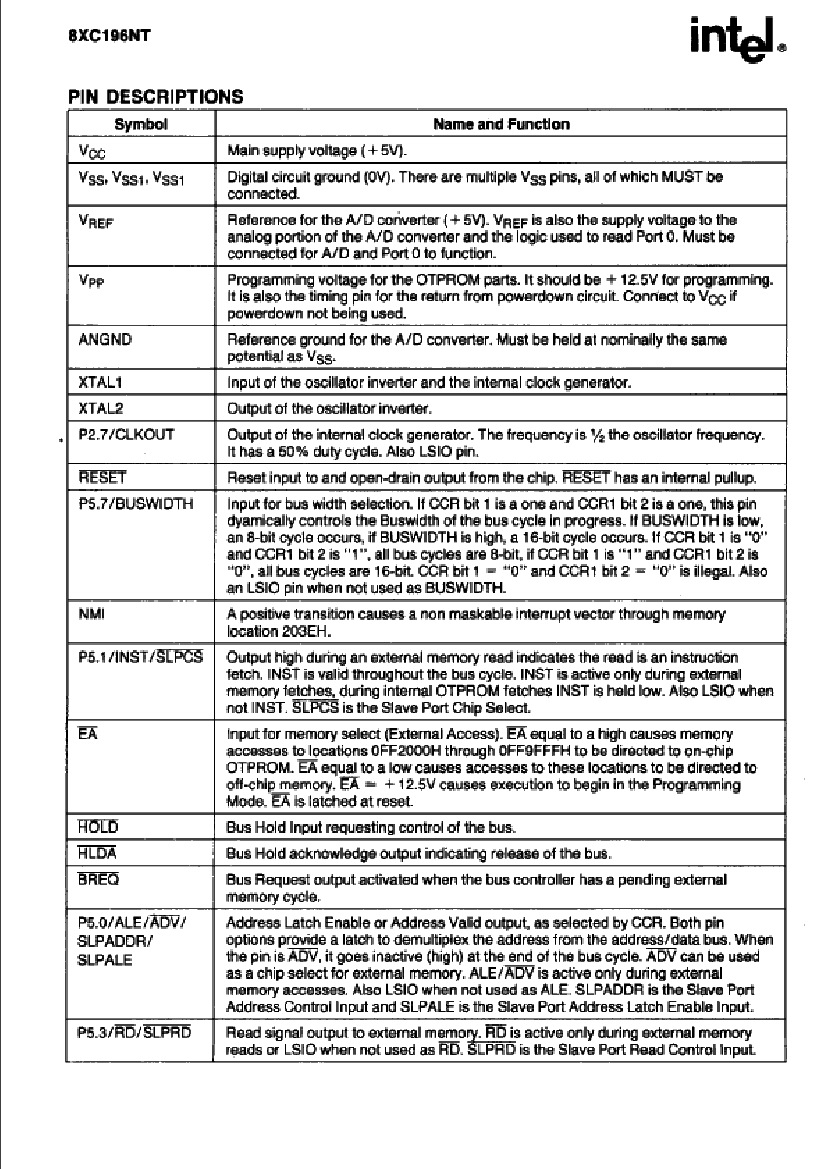

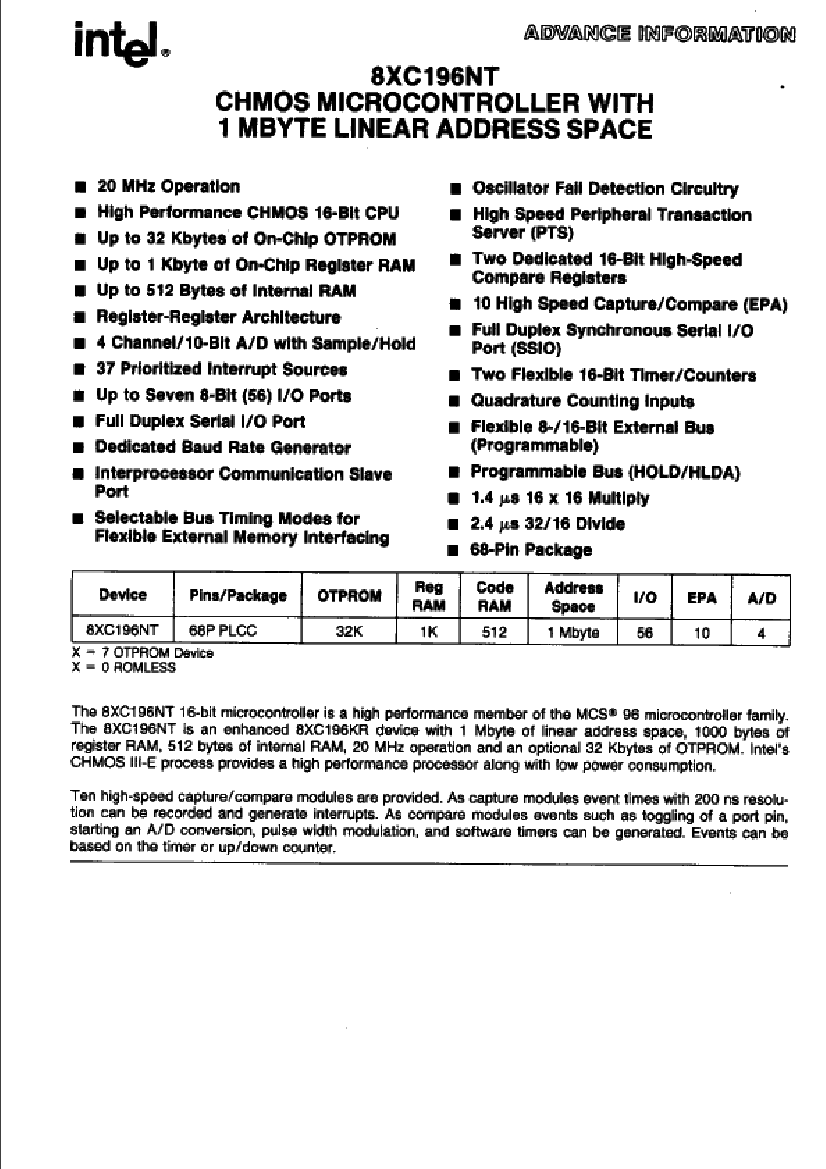

TN80C196NT Overview

IC MPU 16BIT 5V 20MHZ EXT 68PLCC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
bit size	16
CPU series	8096
JESD-30 code	S-PQCC-J68
JESD-609 code	e0

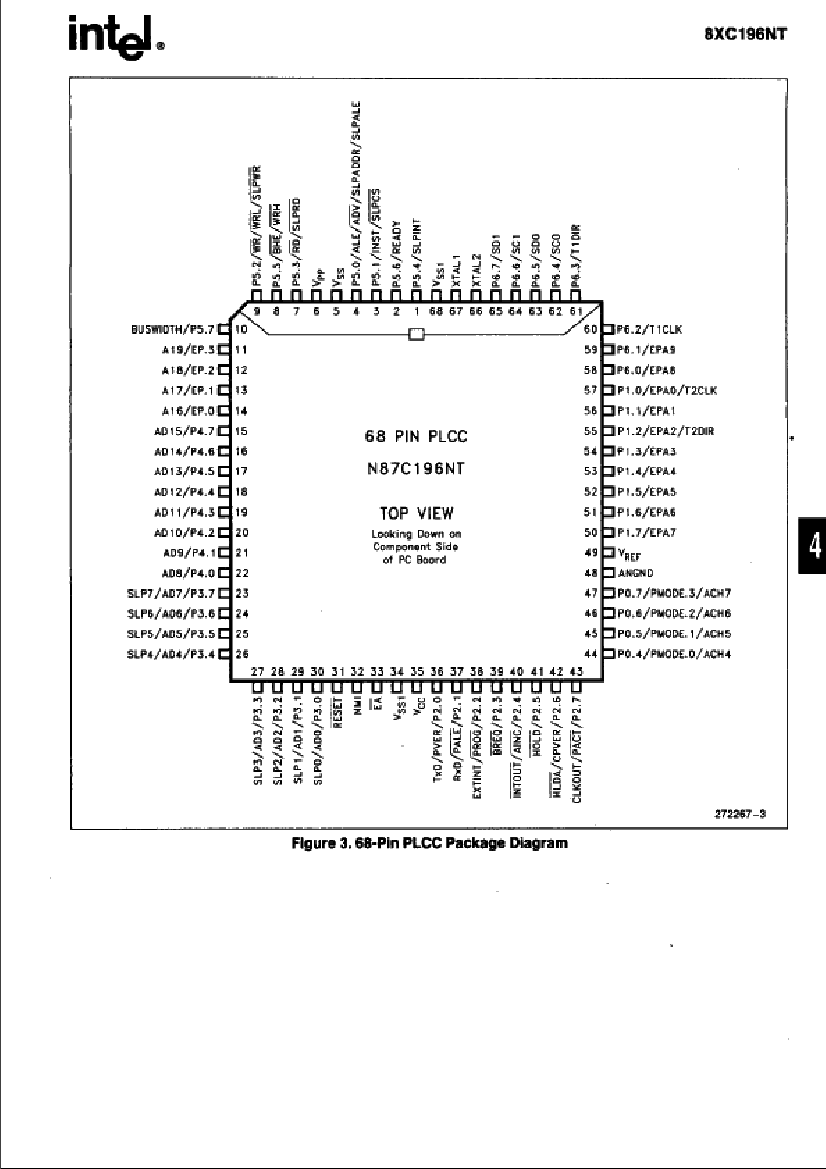

Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1512
rom(word)	0
speed	16 MHz
Maximum slew rate	90 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	TN80C196NT	80C196NT	87C196NT	TN87C196NT
Description	IC MPU 16BIT 5V 20MHZ EXT 68PLCC	IC MPU 16BIT 5V 20MHZ EXT 68PLCC	IC MPU 16BIT 5V 20MHZ EXT 68PLCC	IC MPU 16BIT 5V 20MHZ EXT 68PLCC
