38-00-2407 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 38-00-2407

38-00-2407: Description17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size193KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

38-00-2407 Overview

17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

38-00-2407 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (40)
Contact completed and terminated	TIN (40)
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	7690
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	17
UL Flammability Code	94V-2

Preview

Download Datasheet

View All

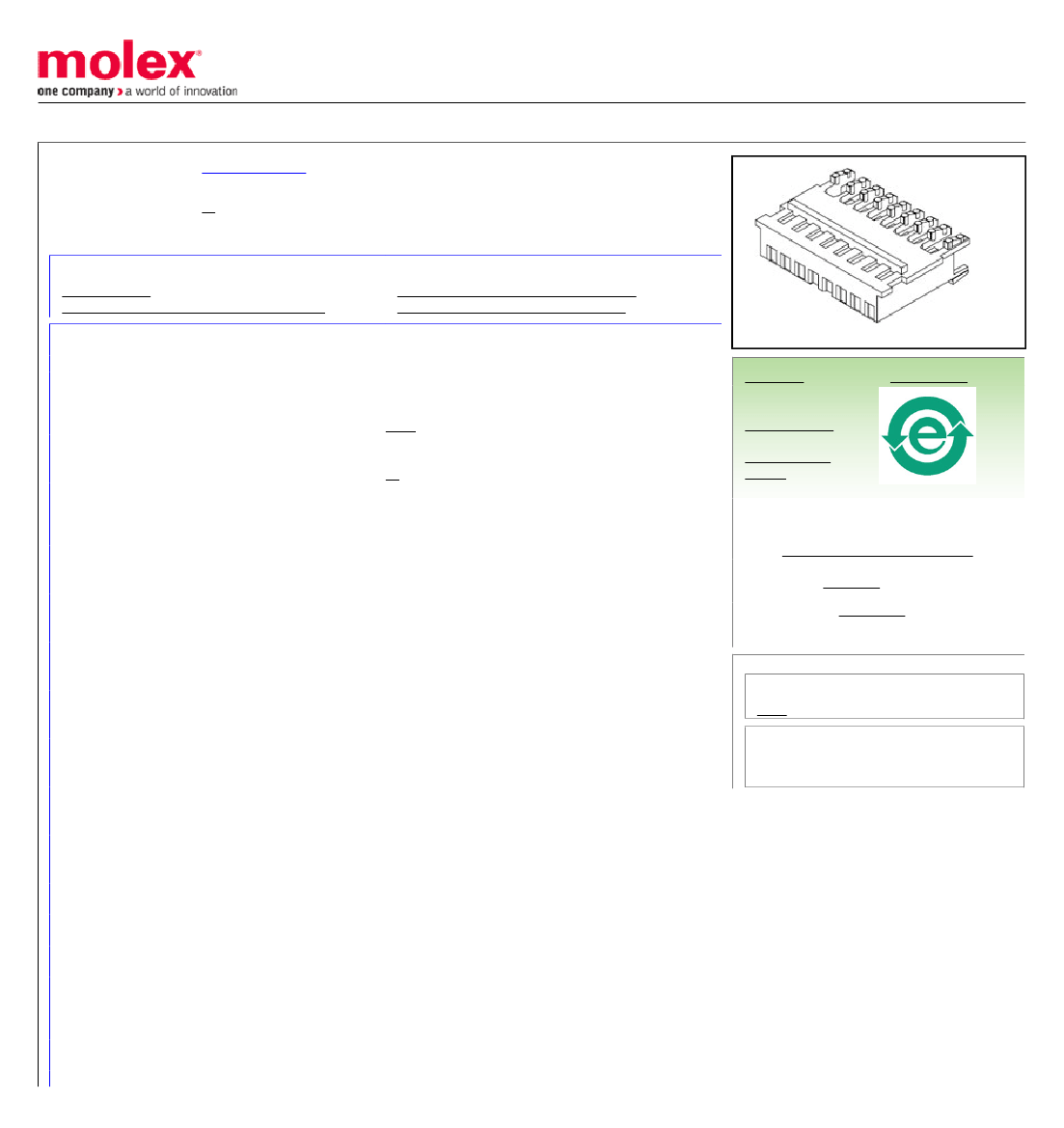

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0038002407

Active

2.54mm (.100") Pitch KK® Connector, IDT, High Pressure Cat Ear Contact System,

Green ID Stripe, 17 Circuit

Documents:

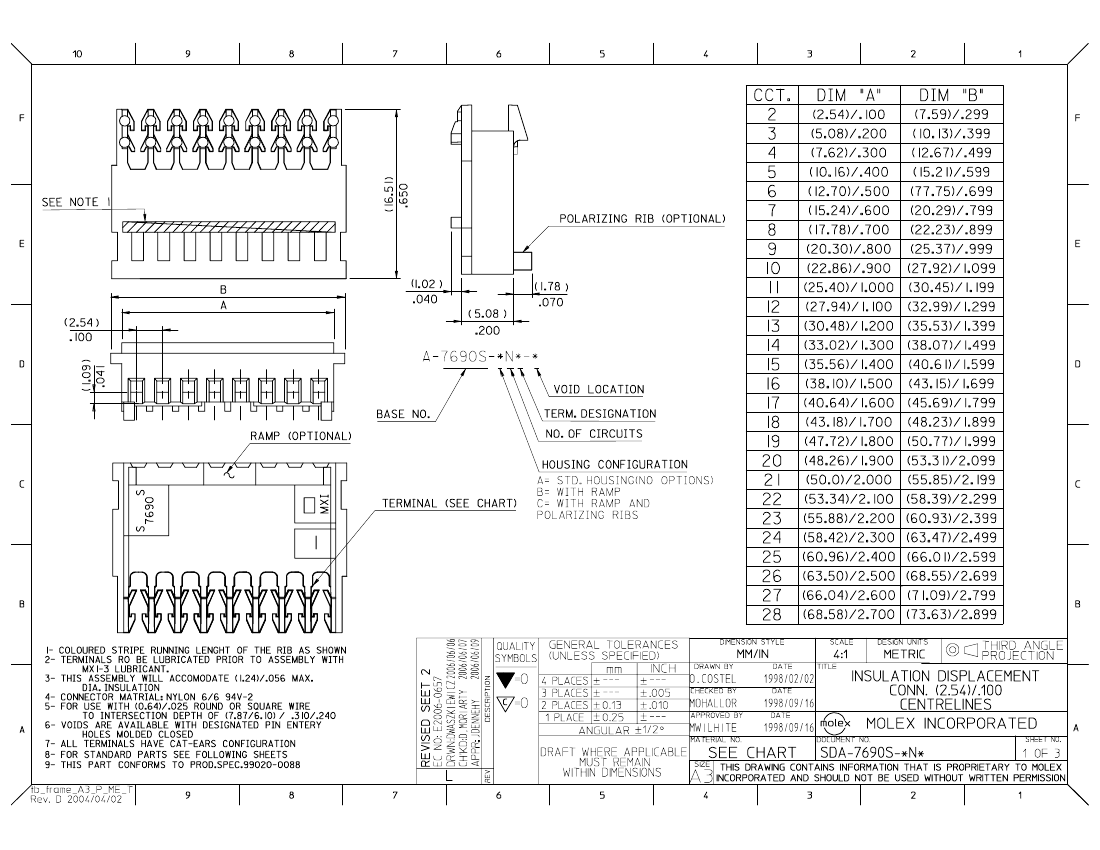

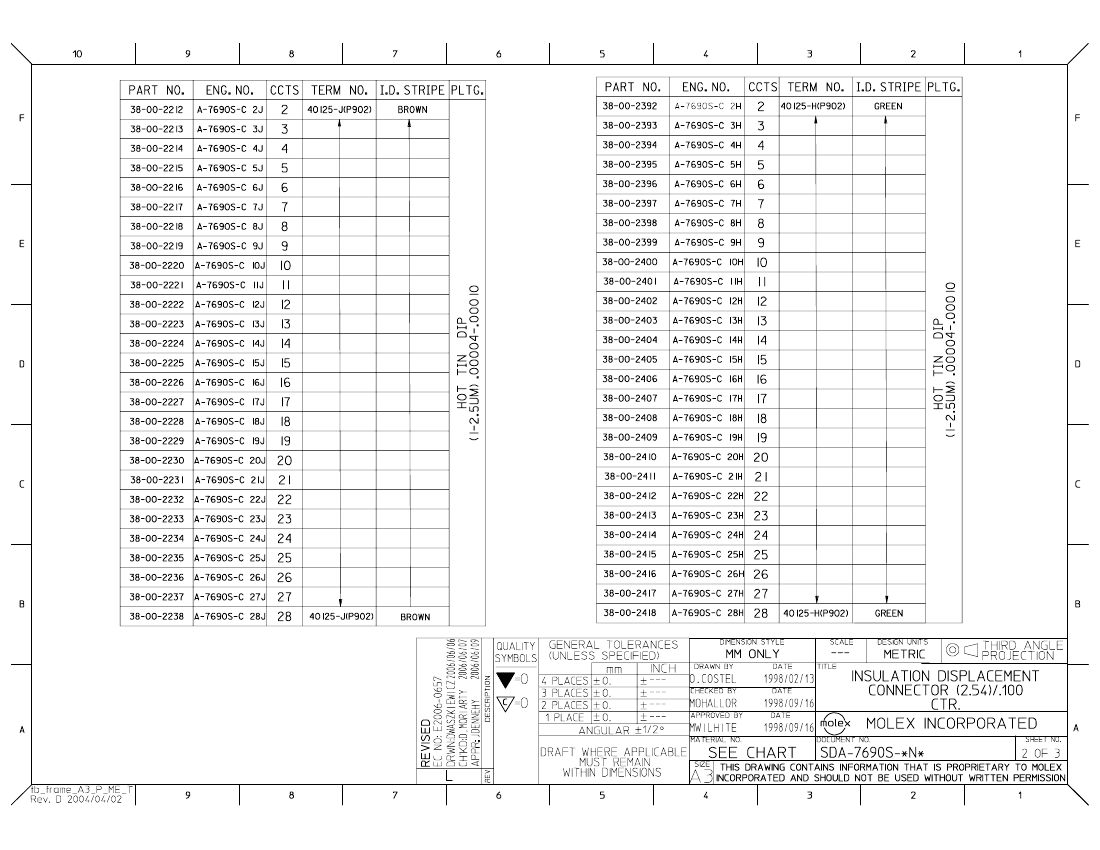

Drawing (PDF)

Product Specification PS-99020-0088 (PDF)

Product Specification PSX-7690S (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

IDT and Solder Connectors

7690

Version H

Yes

KK®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Wire Size AWG

Natural

94V-2

Female

Yes

Brass

Tin

Nylon

Bag

0.100 In

2.54 mm

1.00

0°C to +75°C

24 Stranded, 26 Solid, 26 Stranded Topcoat

Search Parts in this Series

7690Series

Mates With

Molex KK® 2.54mm (.100") pitch headers

and 0.64mm (.025") pins

Electrical

Current - Maximum per Contact

Voltage - Maximum

2.5A

250V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Old Part Number

7690SC17H

Reference - Drawing Numbers

Product Specification

PS-99020-0088, PSX-7690S
