0039000294
Active
standard_093
2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminal, Series
1189, Female, with Gold (Au) over Nickel Plated Brass Contact, 14-20 AWG, Bag, with
Dimple
Documents:
Drawing (PDF)
Product Specification PS-1189-005 (PDF)
Product Specification PS-1189-006 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
1189
with Dimple
Yes
standard_093
Standard .093"
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Unplated
Unplated
Bag
1.60-4.10mm (.063-.161")
14, 16, 18, 20
N/A
Material Info
Old Part Number
1189GL
Search Parts in this Series
1189Series
Use With
3191r
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0638191100
Extraction Tool
0011030006
Japan
Description
Product #
Hand Crimp Tool
0011260006
JHTR1031C
Hand Extraction Tool 0011260029

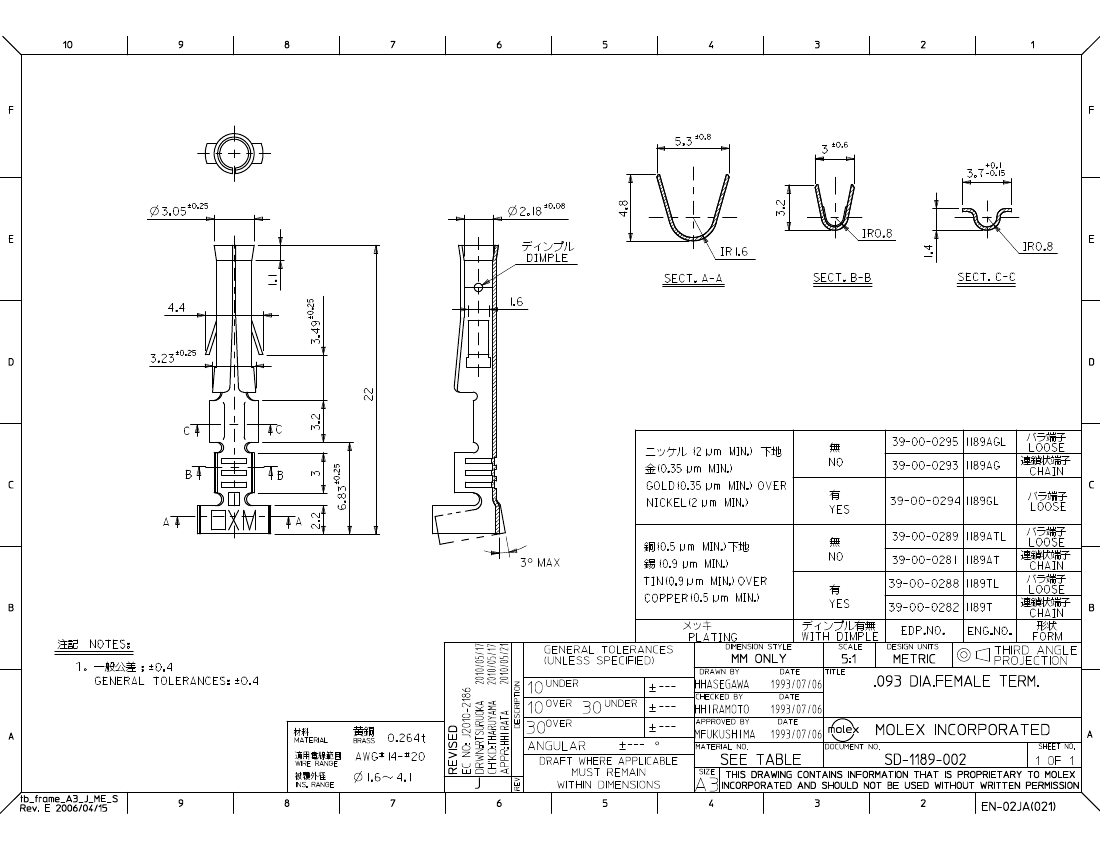

Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-1189-005, PS-1189-006
SD-1189-002
