2SC4116
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process)
2SC4116
Audio Frequency General Purpose Amplifier Applications
•
•
•
•
•
•
•
AEC-Q101 Qualified (Note1)
High voltage and high current: V
CEO
= 50 V, I
C
= 150 mA (max)
High h
FE
:
h
FE
= 70 to 700
Excellent h
FE
linearity: h
FE
(I
C
= 0.1 mA)/h
FE
(I
C
= 2 mA) = 0.95 (typ.)
Unit: mm
Low noise: NF = 1dB (typ.), 10dB (max)
Complementary to 2SA1586
Small package
Note1: For detail information, please contact to our sales.
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
60
50
5
150
30
100
125
−55
to 125
Unit
V
V
V
mA
mA
mW
°C
°C

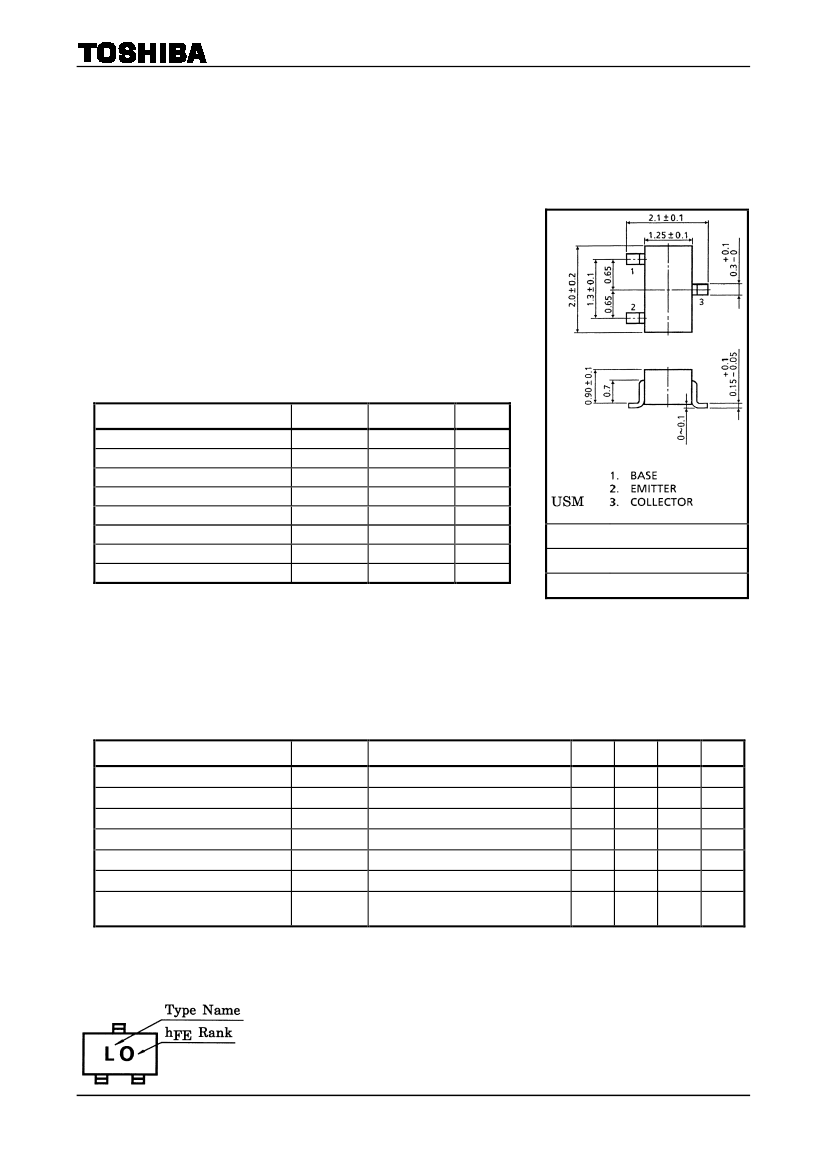

JEDEC
JEITA
TOSHIBA
―
SC-70
2-2E1A
Note: Using continuously under heavy loads (e.g. the application of high
Weight: 0.006 g (typ.)
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are
within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
DC current gain
(Note)
Symbol
I
CBO
I
EBO
h
FE
V
CE (sat)
f
T
C
ob
NF
Test Condition
V
CB
=
60 V, I
E
=
0
V
EB
=
5 V, I
C
=
0
V
CE
=
6 V, I
C
=
2 mA
I
C
=
100 mA, I
B
=
10 mA
V
CE
=
10 V, I
C
=
1 mA
V
CB
=
10 V, I
E
=
0, f
=
1 MHz
V
CE
=
6 V, I
C
=
0.1 mA, f
=
1 kHz,
R
g
=
10 kΩ,
Min
―
―
70
―
80
―
―
Typ.
―
―
―
0.1
―
2.0
1.0
Max
0.1
0.1
700
0.25
―
3.5
10
V
MHz
pF
dB
Unit
μA
μA
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
Noise figure
Note: h
FE
classification O (O): 70 to 140, Y (Y): 120 to 240, GR (G): 200 to 400, BL (L): 350 to 700
( ) marking symbol
Marking
Start of commercial production
1987-01
1
2015-01-09

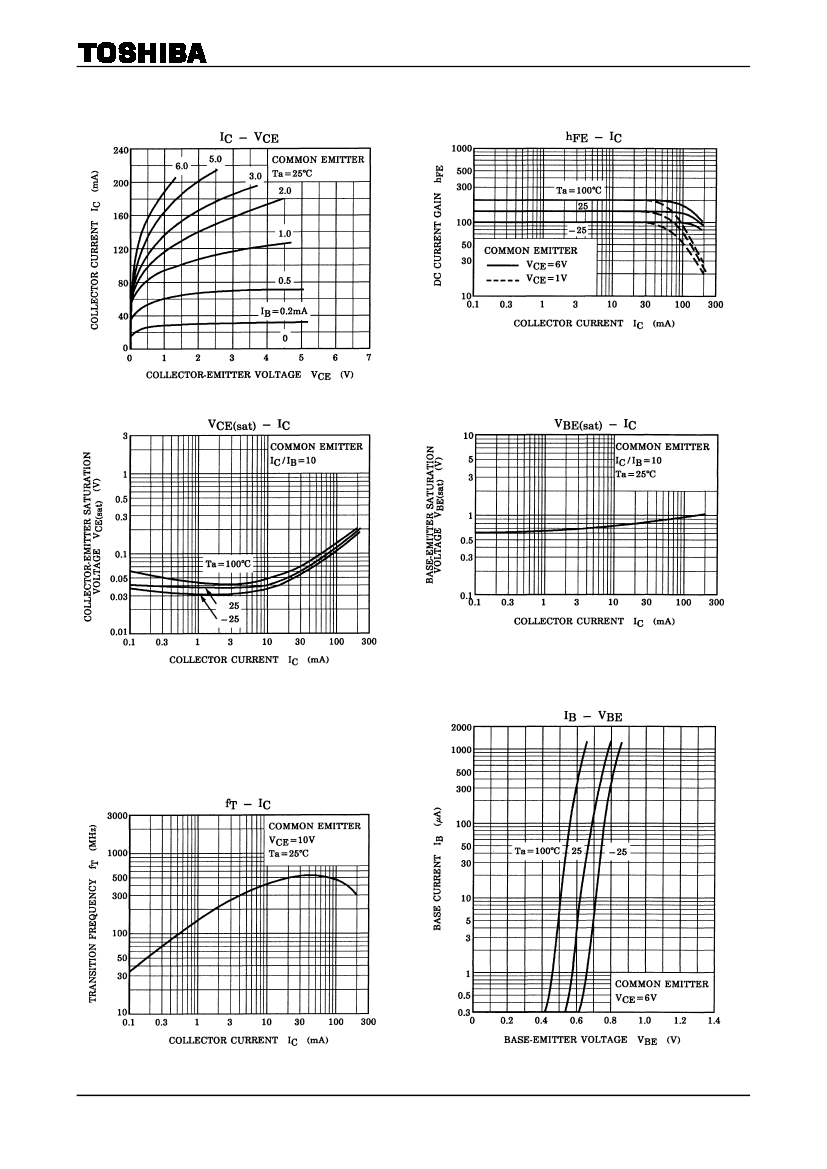

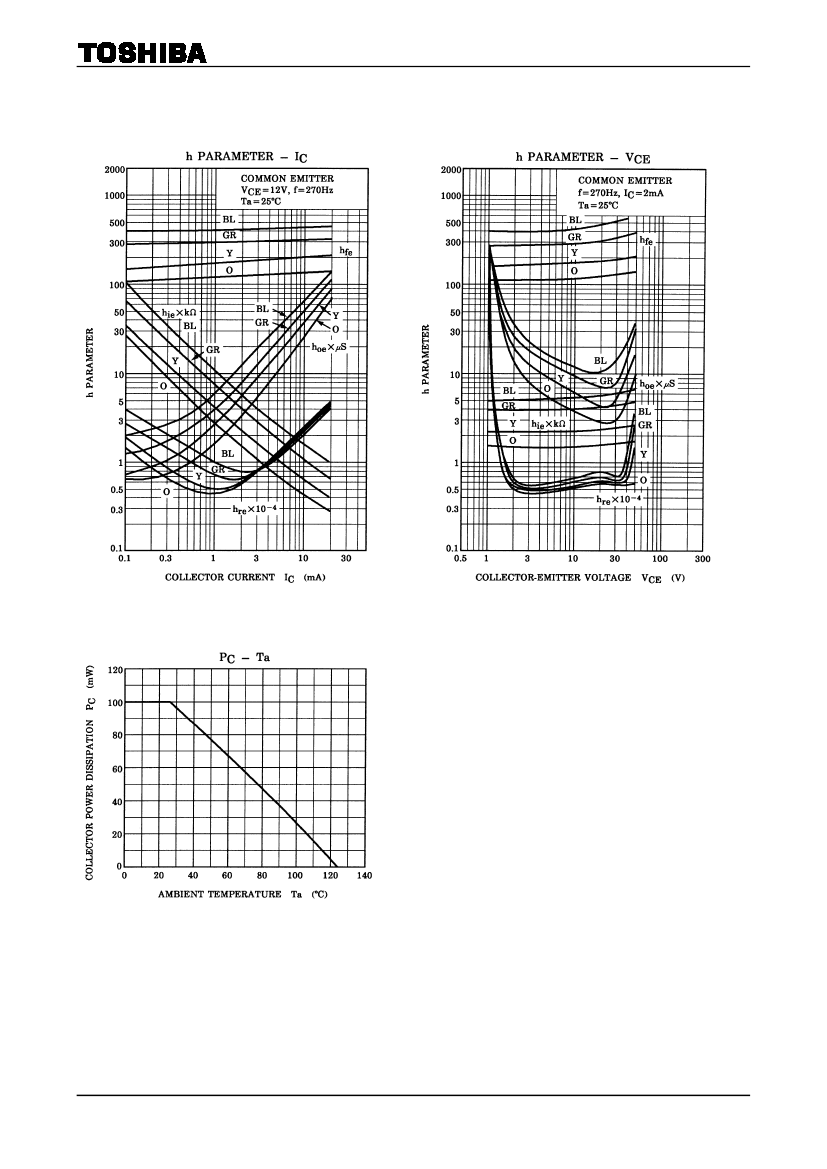

2SC4116
