395132007 Overview

3.81mm

395132007 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1
This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model

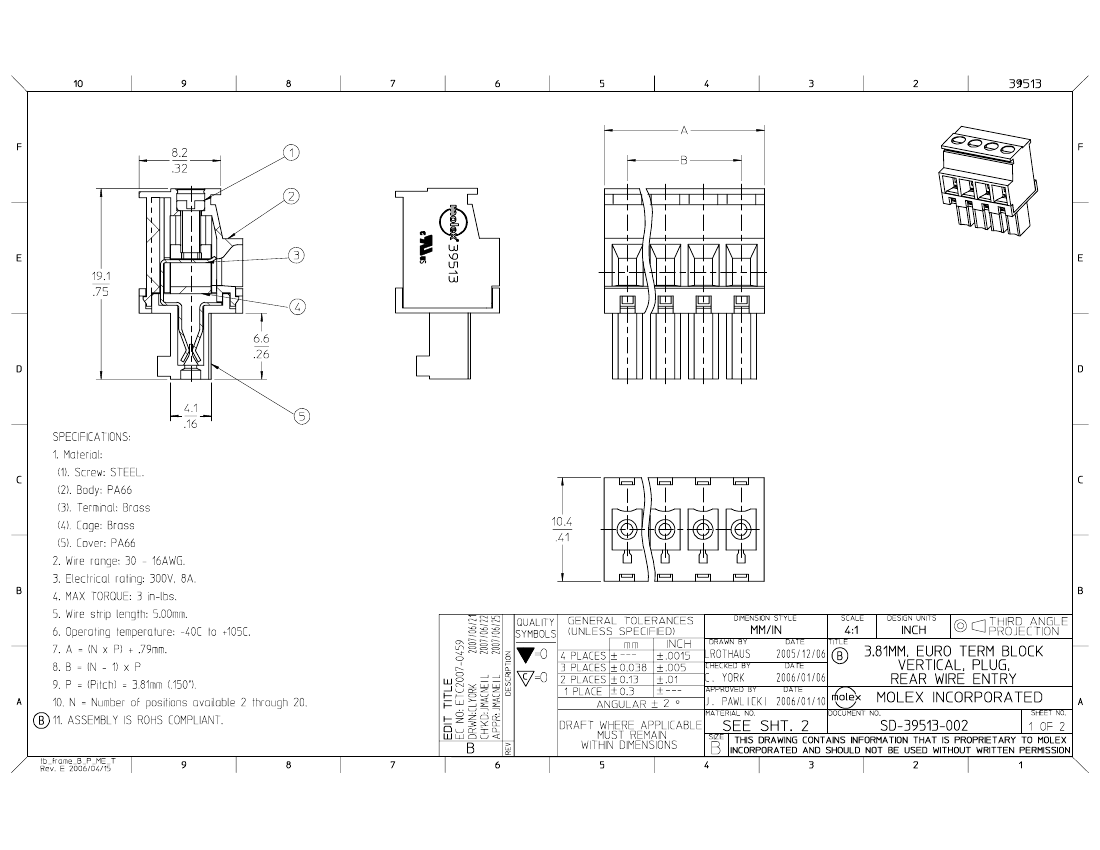

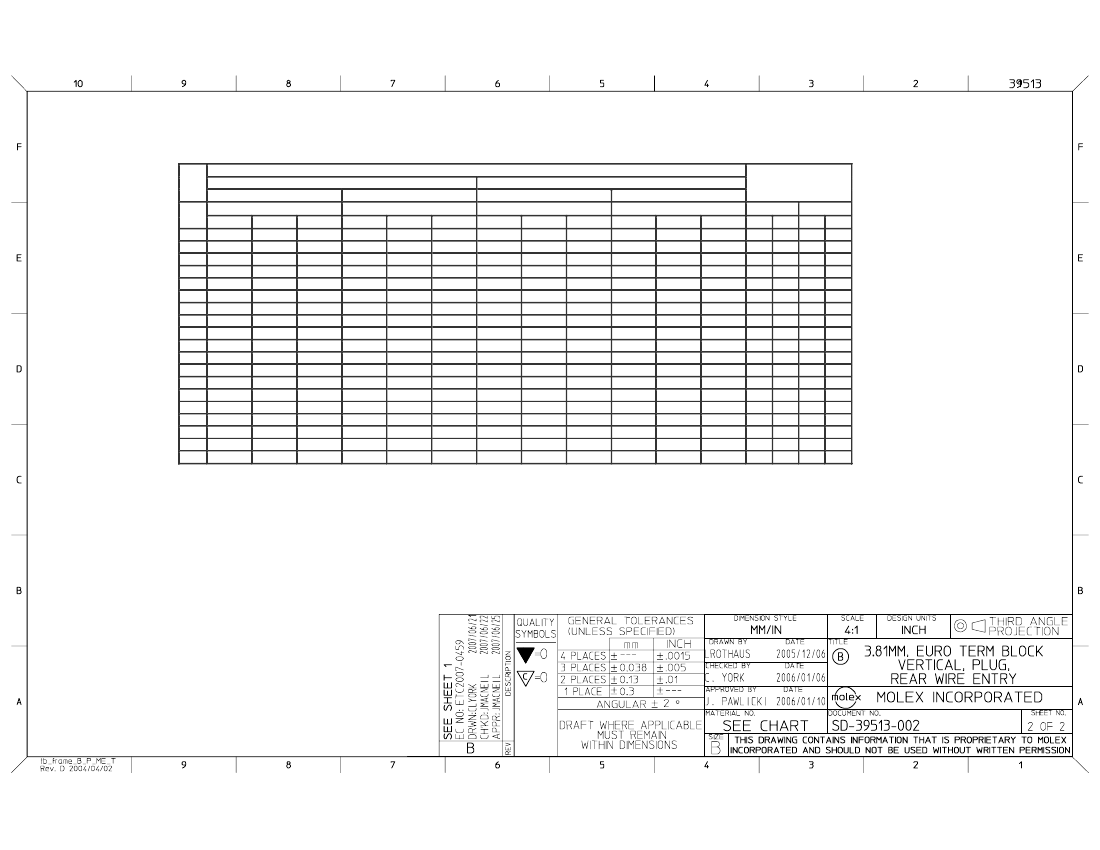

Drawing (PDF)
0395132007
Active
3.81mm (.150") Pitch Eurostyle™ Vertical Plug, Rear Wire Entry, 7 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39513
Wire-to-Board
Rear Wire Entry
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
7
Horizontal
None
1
Vertical
No
0.150 In
3.81 mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24, 26, 28, 30
0.05 - 1.31
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Search Parts in this Series
39513Series
Mates With
Most 3.81mm (.150") Pitch Industry
Standard PCB Headers, 39511 Vertical PCB
Header, 39512 Horizontal PCB Header
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39513-002
