5557-04R-210: Description4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size294KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5557-04R-210 Overview

4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE

5557-04R-210 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.46 inch
subject depth	0.77 inch
body length	0.378 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5557
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

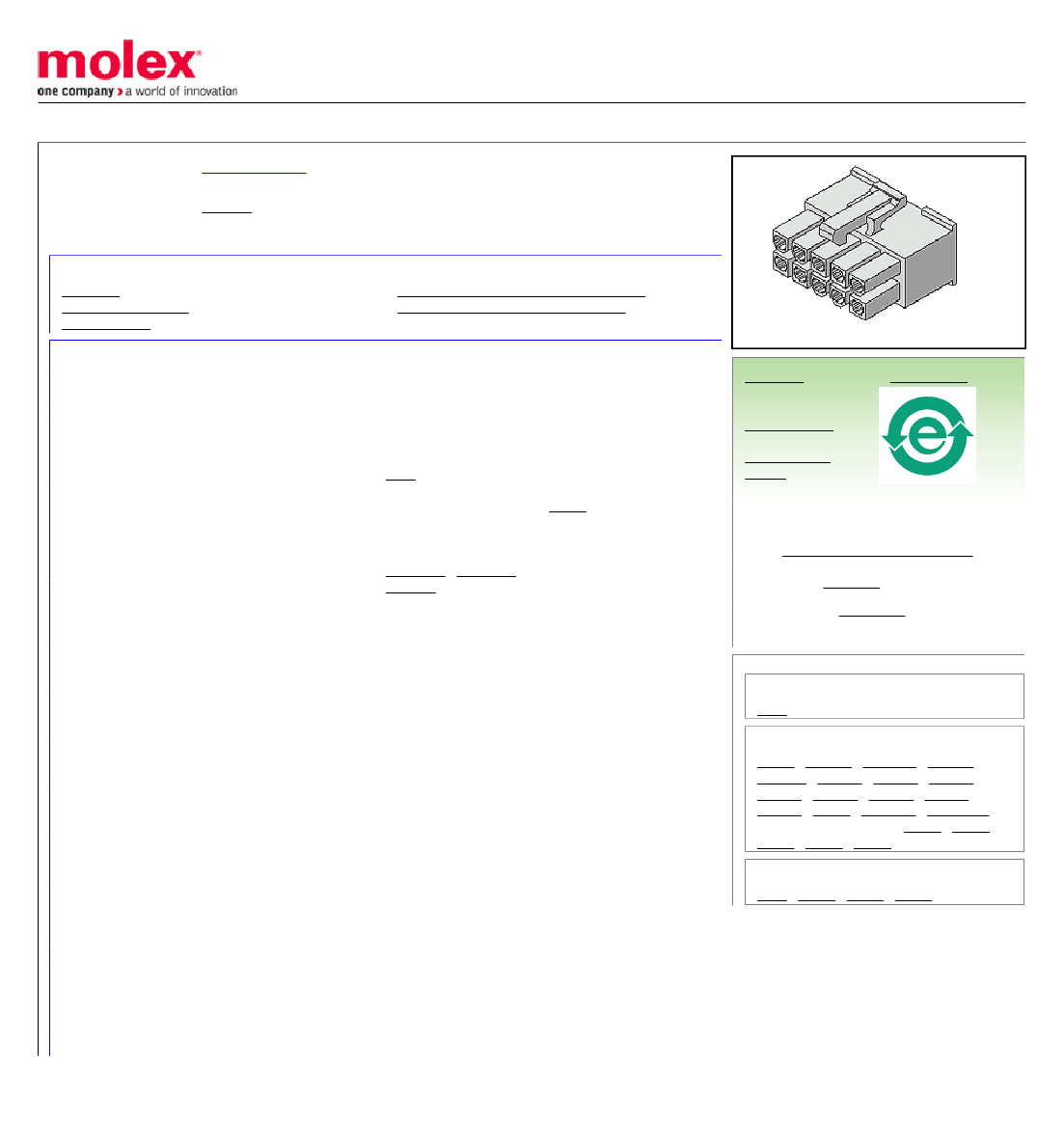

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039012045

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Receptacle Housing, Dual Row, UL 94V-0, 4

Circuits

Documents:

3D Model

Test Summary (PDF)

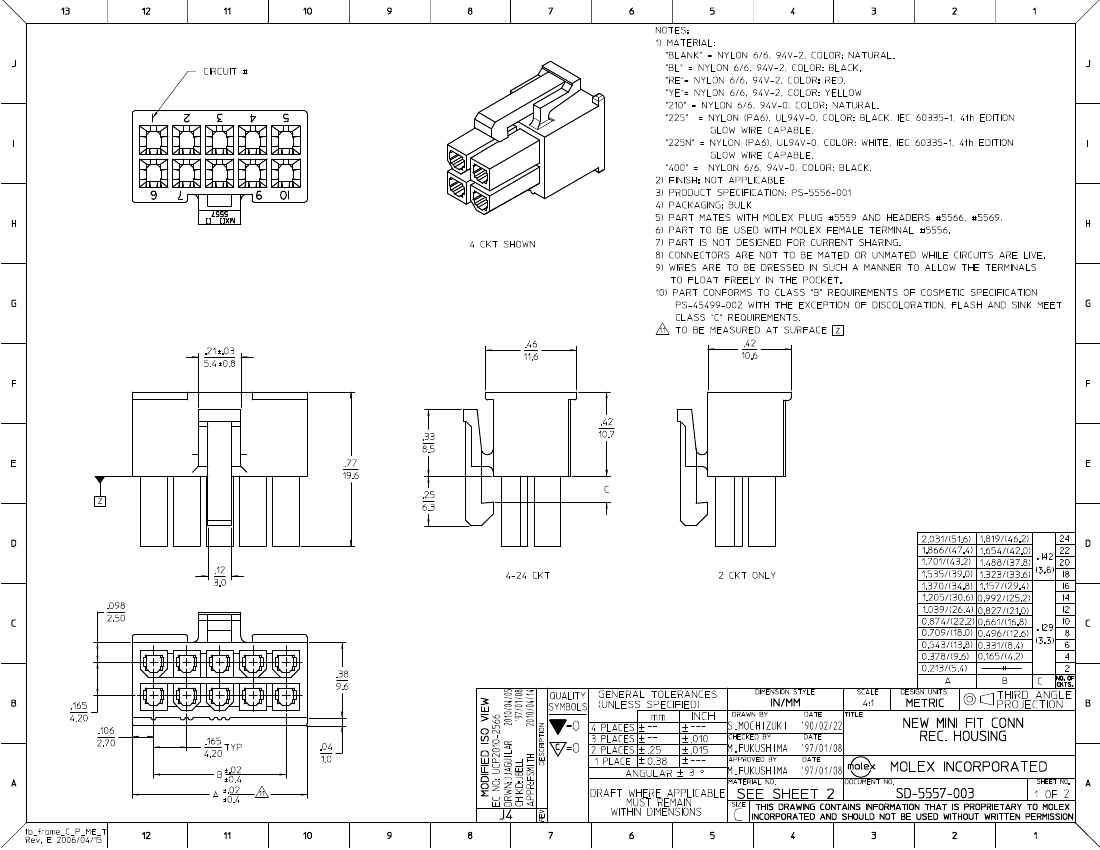

Drawing (PDF)

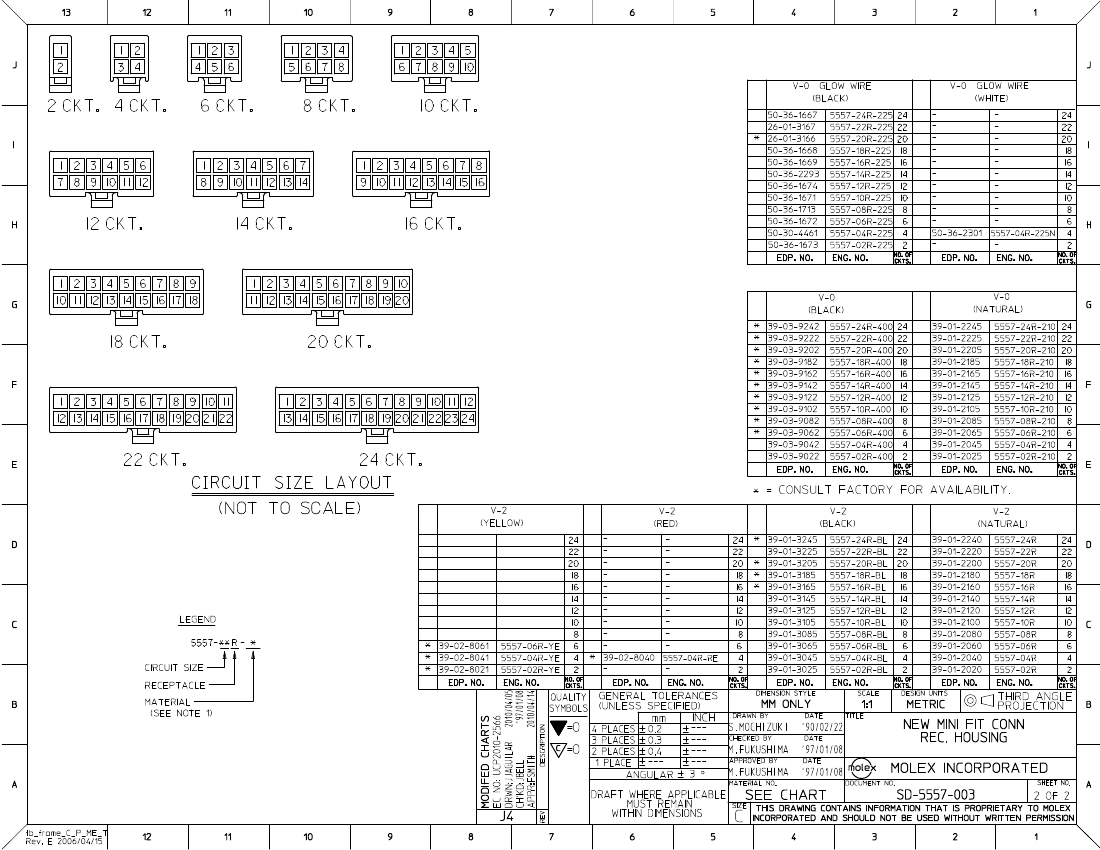

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Housings

5557

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.. Glow Wire Equivalent Part Number

50304461 , 50362301

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Ivory

94V-0

Female

Nylon

Bag

0.165 In

4.20 mm

0.165 In

4.20 mm

Yes

-40°C to +105°C

Search Parts in this Series

5557Series

Mates With

5559d , 5566vw , 5566vwo , 5569rdf ,

5569rdp , 43810a , 43810b , 43810c ,

43810d , 44068a , 44068b , 44068c ,

44068d , 44281 , 44472dw , 44472dwo ,

87427, 87427r, 87427rf, 42404 , 44474 ,

42440 , 43879 , 42475

Use With

5556 , 44476 , 44485 , 41995

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5557-04R-210

Reference - Drawing Numbers

Packaging Specification

SPK-5557-001
