26-20-2171 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26-20-2171

26-20-2171: Description17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size369KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

26-20-2171 Overview

17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

26-20-2171 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	END-TO-END STACKABLE
body width	0.272 inch
subject depth	0.125 inch
body length	2.652 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VDC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	500000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	197u inch
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.175 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-2
Evacuation force-minimum value	1.112 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0026202171

Active

3.96mm (.156") Pitch KK® Wire-to-Board Header, Vertical Round Pin, 17 Circuits, Tin

(Sn) Plating, with Mating Pin Length of 11.43mm (.450")

Documents:

3D Model

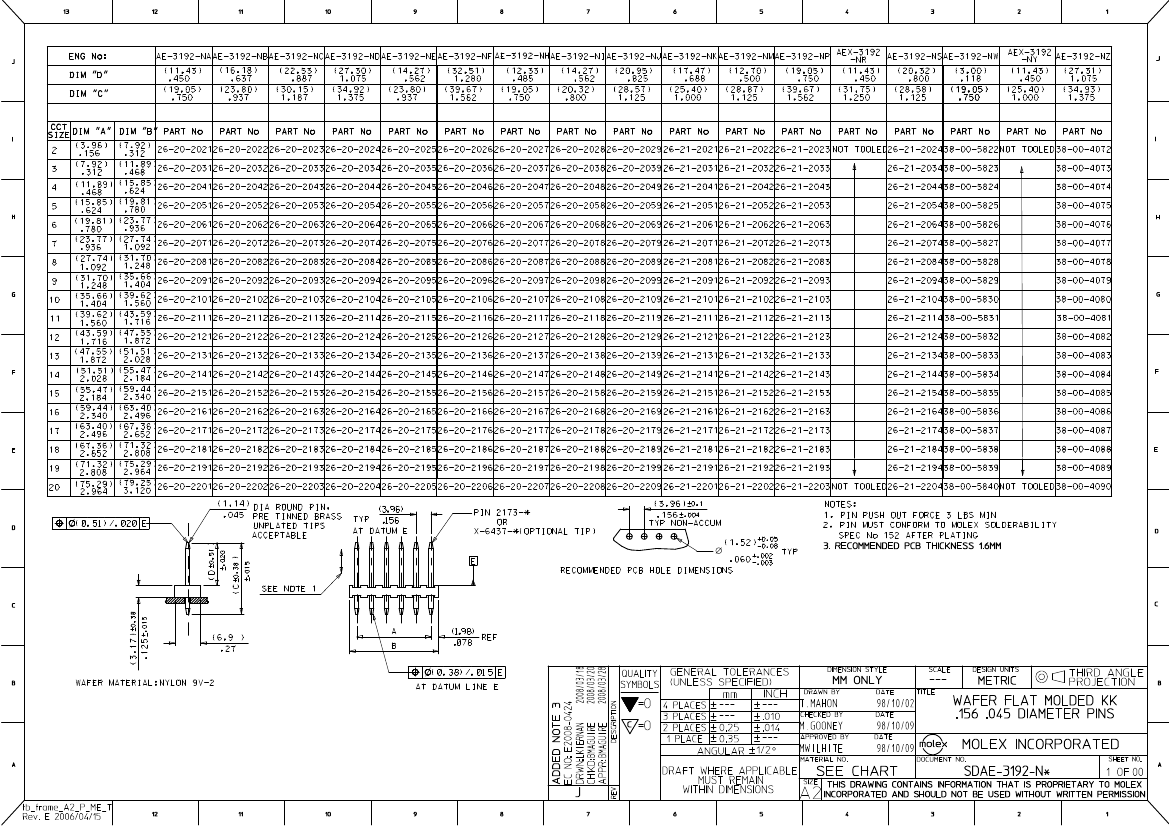

Drawing (PDF)

Product Specification PS-99020-0087 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

3192

Board-to-Board, Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Natural

94V-2

None

Brass

Tin

Nylon

Vertical

0.175 In

4.45 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

200

Yes

0°C to +75°C

Search Parts in this Series

3192Series

Mates With

3069 KK® Crimp Terminal Housing. 3215

KK® PC Board Connector

26-20-2171 Related Products

	26-20-2171	319217A	0026202171
Description	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Reach Compliance Code	unknow	-	unknown
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	TIN	-	TIN
Contact completed and terminated	Tin (Sn)	-	Tin (Sn)
Contact point gender	MALE	-	MALE
Contact material	BRASS	-	BRASS
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
JESD-609 code	e3	-	e3
MIL compliance	NO	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of rows loaded	1	-	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	3.96 mm	-	3.96 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	17	-	17
UL Flammability Code	94V-2	-	94V-2
Base Number Matches	1	-	1
