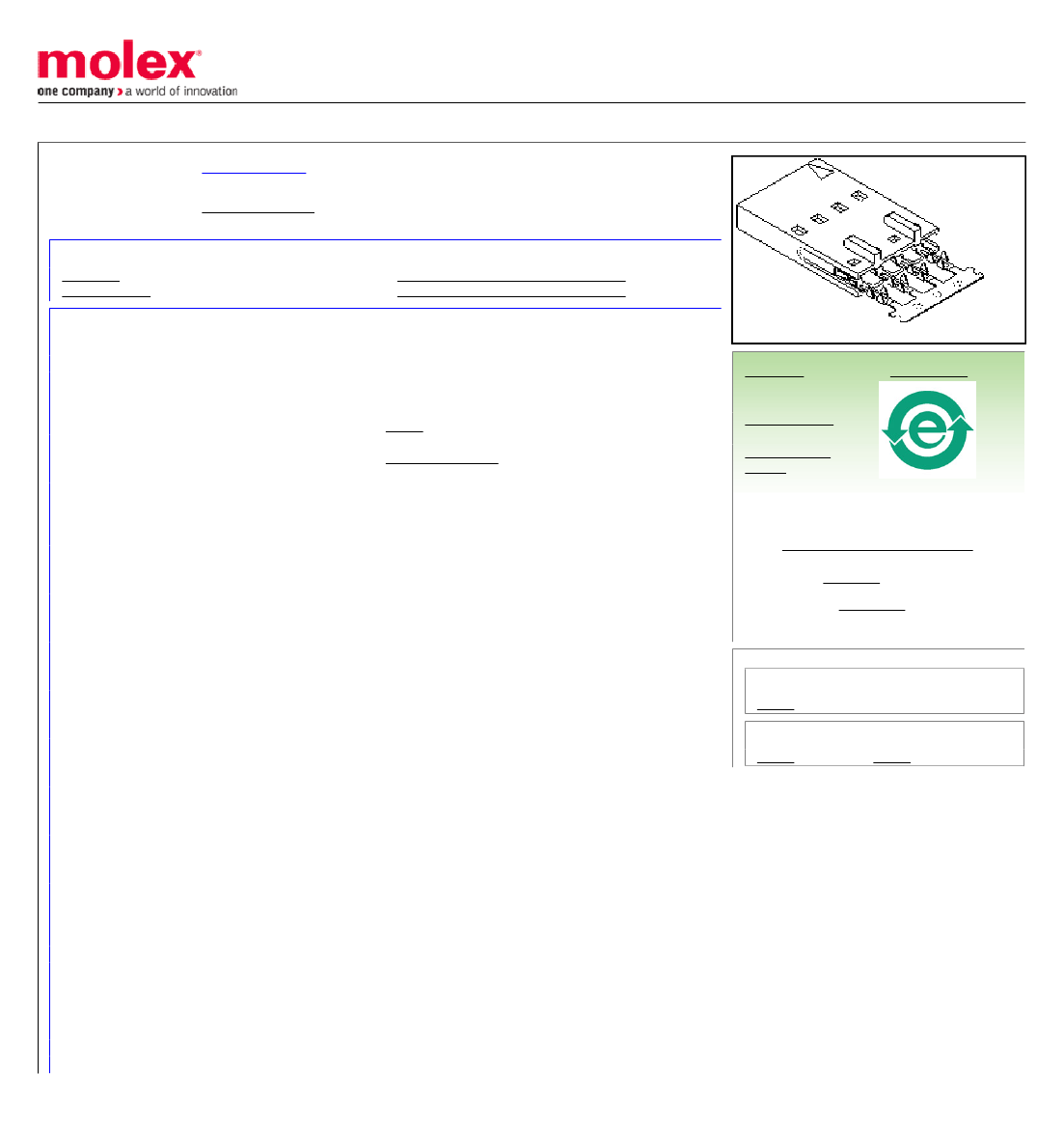

This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

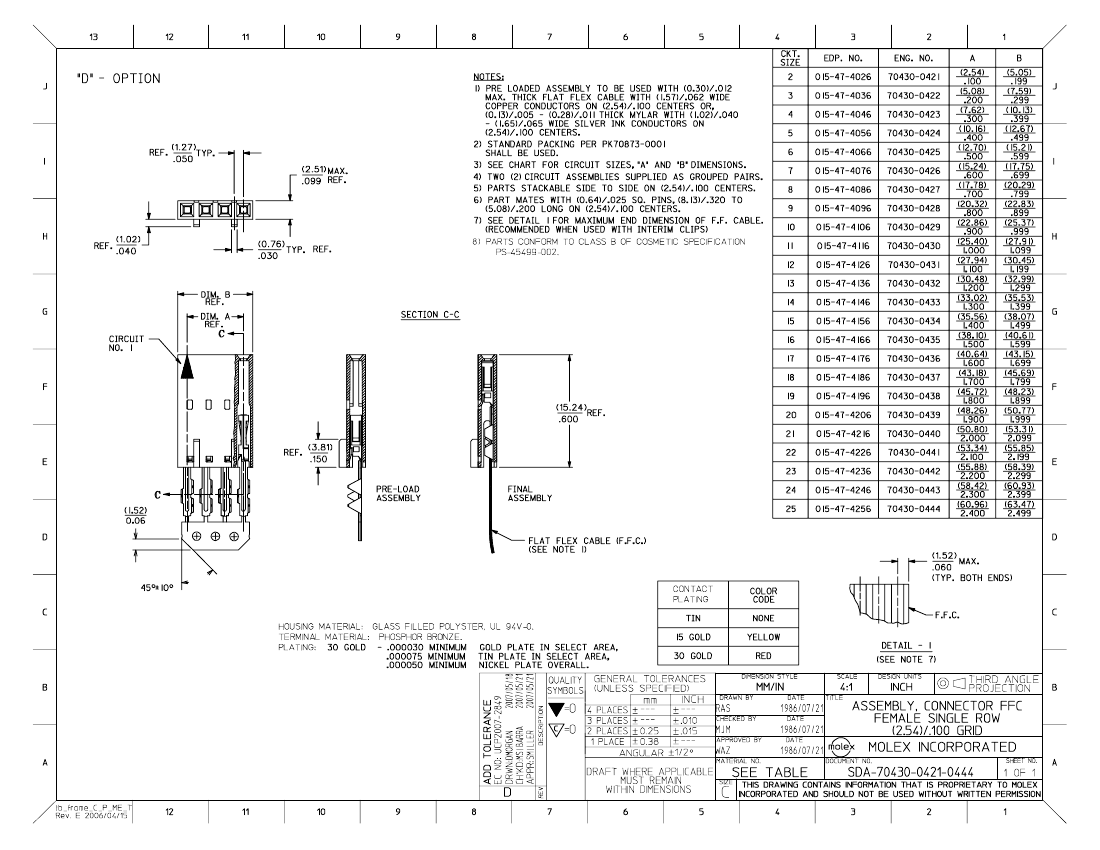

Drawing (PDF)
0015474186
Active
cgrid__sl_products
2.54mm (.100") C-Grid SL™ Single Row, Female, Version D Receptacle, 18 Circuits
Product Specification PS-70430 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19880
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Overview
Product Name
FFC/FPC Connectors
70430
Stackable Back-to-Back
cgrid__sl_products
SL™
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
18
Black
N/A
50
Vertical
94V-0
Phosphor Bronze
Gold
Tin
Polyester Alloy
1
Vertical
None
Tube
0.100 In
2.54 mm
30
0.75
75
1.875
No
Yes
-40°C to +105°C
IDT or Pierce
FFC/FPC
Search Parts in this Series
70430Series
Mates With
70004 Interim Clip, 70013 Interim Clip
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A, 2A
250V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-70430
SDA-70430-0421-0444
