A-41791-0857: Description10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size293KB，11 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A-41791-0857 Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-41791-0857 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN (100) OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	41791
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0417910857

Active

3.96mm (.156") Pitch KK® Solid Header, Vertical, Friction Lock, 10 Circuits, 0.76µm

(30µ") Gold (Au) Selective Plating

Documents:

3D Model

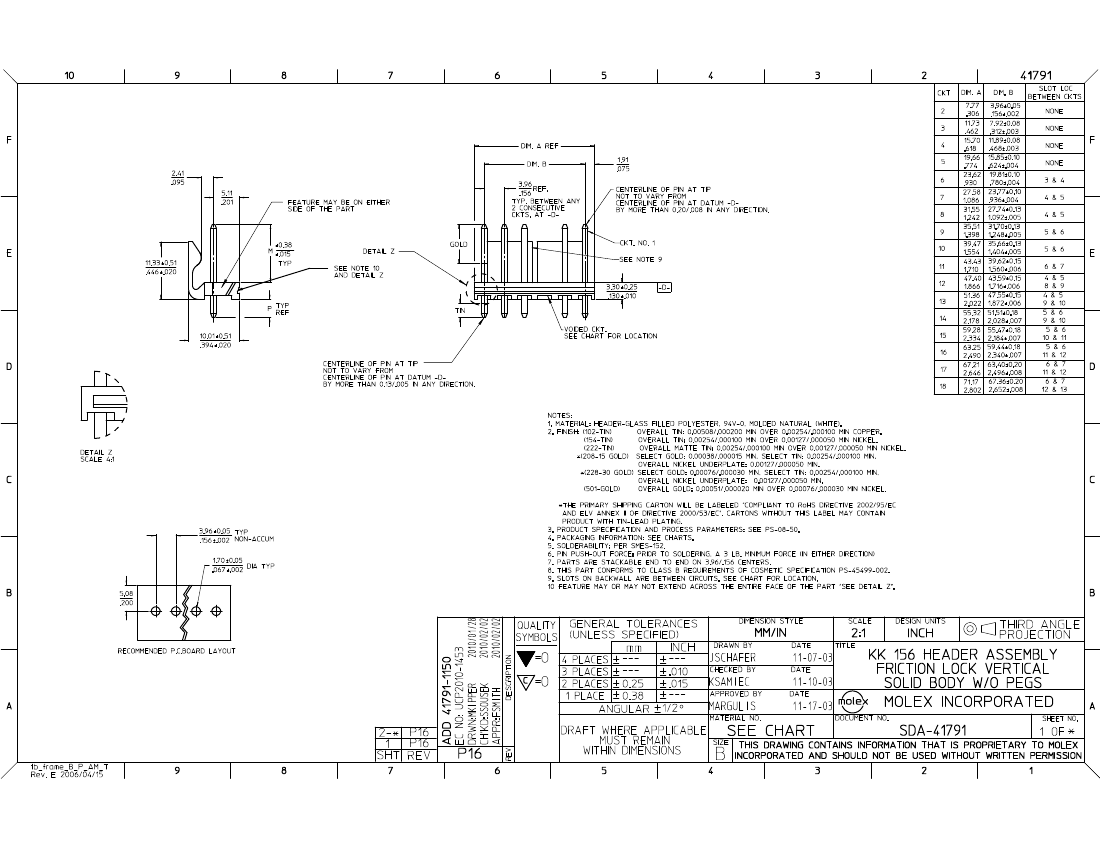

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

41791

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

Yes

Brass

Gold

Tin

Polyester

Vertical

0.140 In

3.56 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

0.75

100

2.5

Yes

Partial

Yes

0°C to +75°C

Through Hole

Search Parts in this Series

41791Series

Mates With

3069 , 2139 , 2145 , 6442 , 7674 , 7675 ,

41695 , L ink:41815
