0041.2862 Overview

Keylock Switch, 1 Positions, DPST, (n.o.) (n.c.), Momentary, 0.2A, 250VDC, Solder Lug Terminal, Keylock Actuator, Panel Mount

Parameter Name	Attribute value
Maker	SCHURTER
Reach Compliance Code	compliant
Actuator length
Actuator type	KEYLOCK
body height	43.0022 mm
Casing type	UNTHREADED
center contact material	SILVER
Center contact plating	SILVER
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	0.2 A
Contact (DC) maximum rated R load	0.2A@250VDC
Contact function	(N.O.) (N.C.)
Contact resistance	0.005 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Dielectric withstand voltage	4000VAC V
Electrical life	2000000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Graduation angle
Insulation resistance	10000000000 Ω
Manufacturer's serial number	EMS
Installation features	PANEL MOUNT
Number of positions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	KEYLOCK SWITCH
Termination type	SOLDER LUG

Illuminated pushbutton EMF, Keyswitch EMS

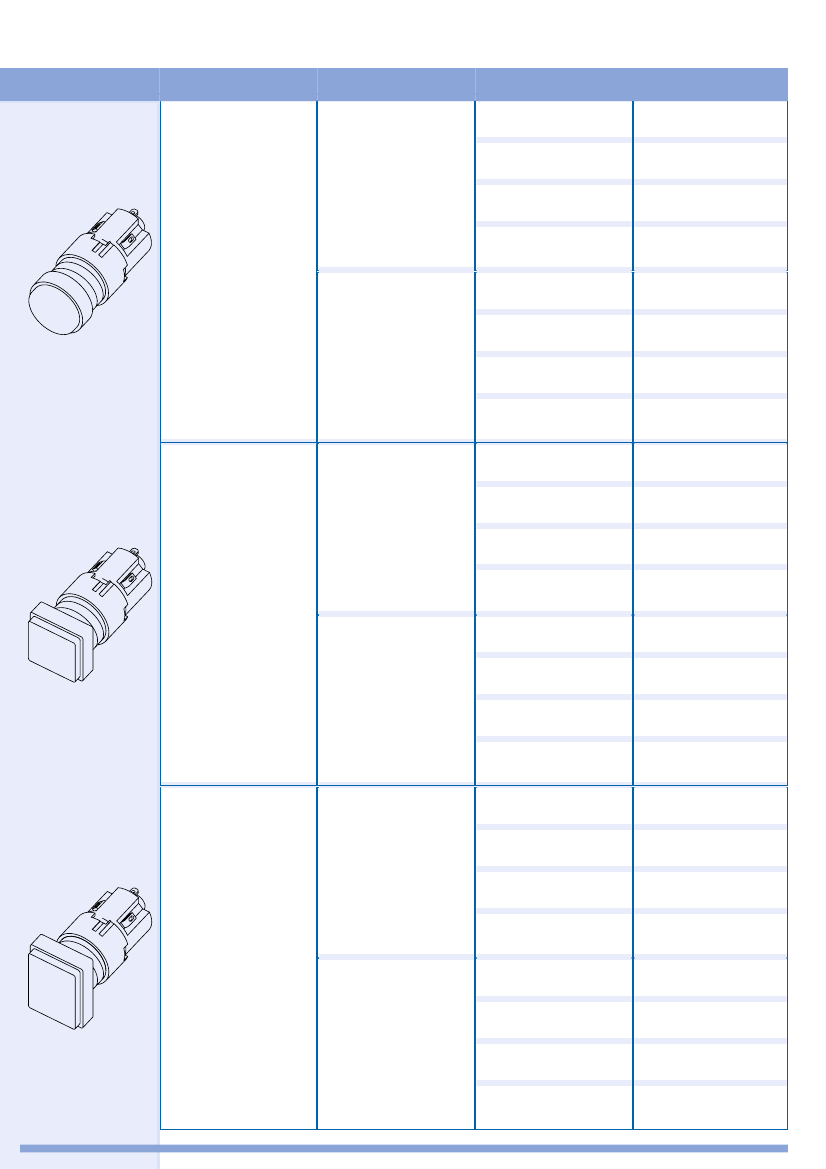

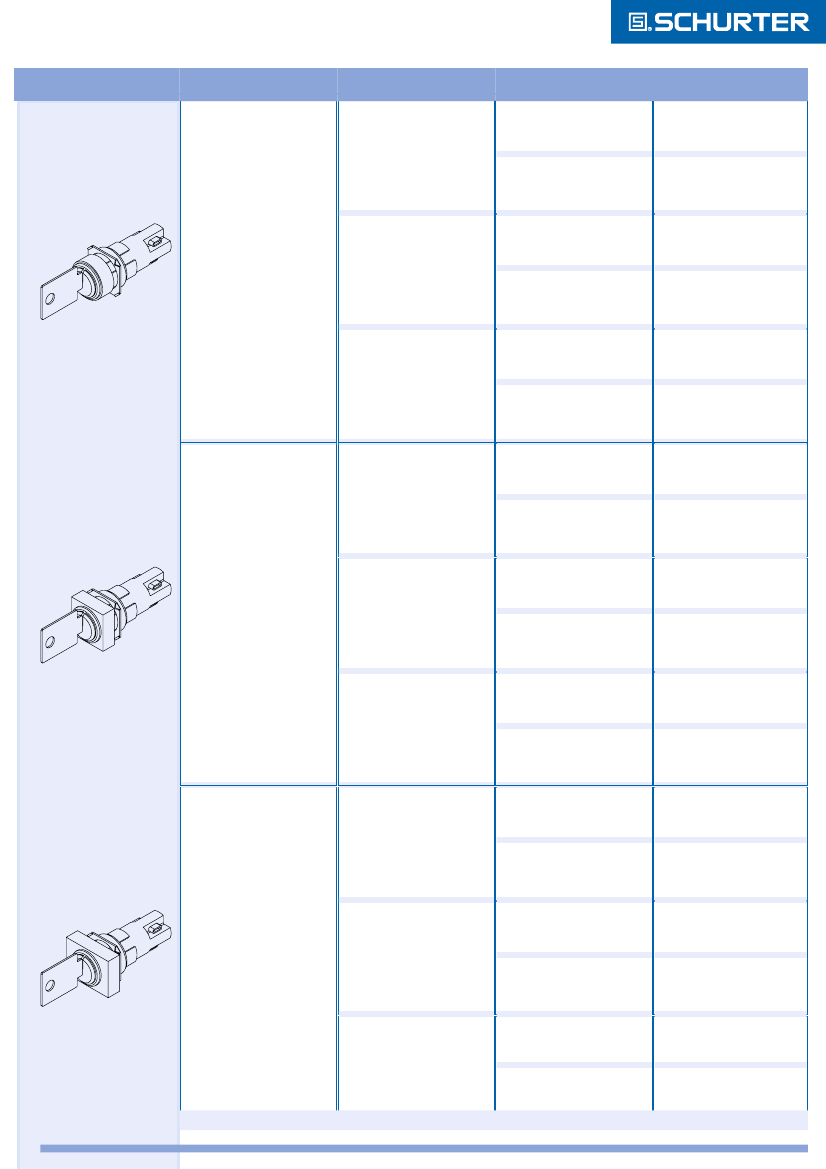

Models

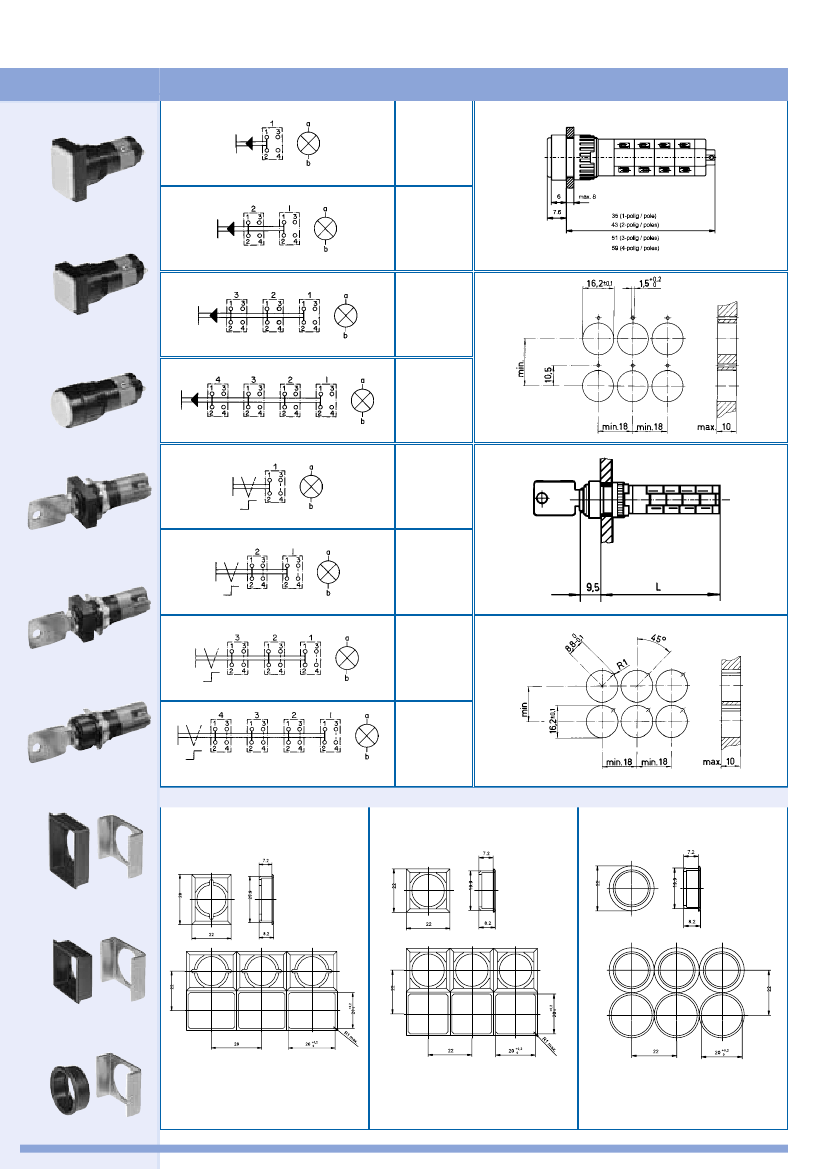

Contact diagram

Length L

Dimensions / drilling diagram

Cut-out

18/24

Cut-out

18/24

In one section must be same potential

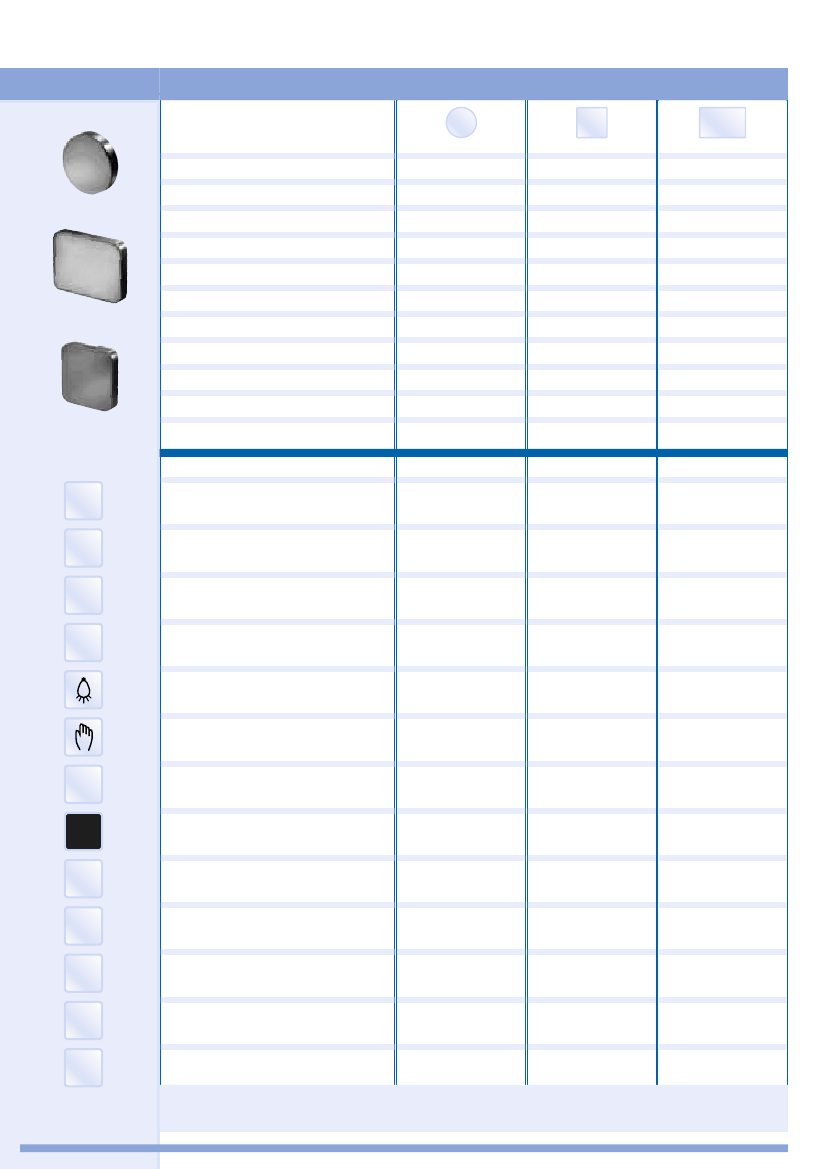

Accessories flush mounting bezel

rectangular

Square

round

mounting hole

Frontpanel Line
