Part Number:
Status:
Overview:
Description:
0365010293
Active
din_41612
2.54mm (.100") Pitch DIN 41612 C/2 Style Female Receptacle, Vertical, Through Hole,
0.40µm (16µ") Selective Gold (Au) Plating, 48 Circuits, Solder Tail Length 2.90mm
(.114"), without Mounting Clips, No Flux Proof, Lead Free
Documents:

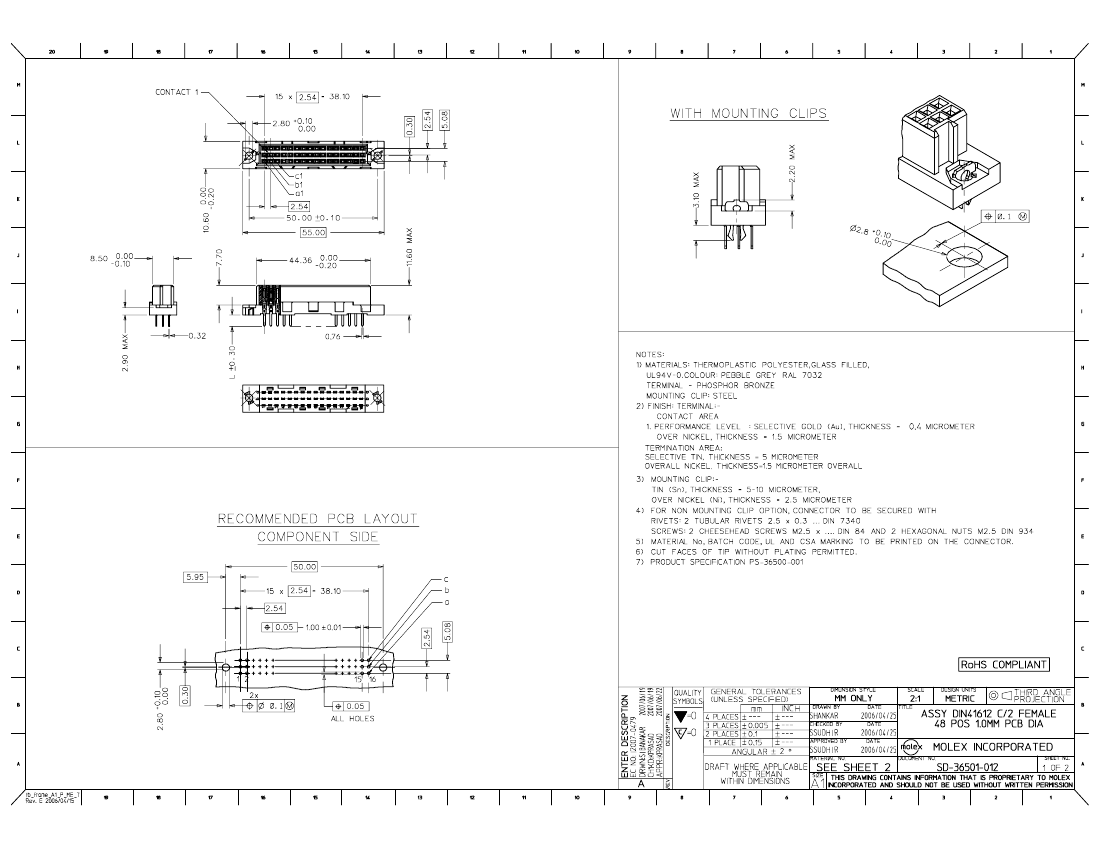

Drawing (PDF)
Product Specification PS-36500-001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
36501
Daughtercard
No Mounting Clips, Secured with Tubular Rivets/
Cheesehead Screws. No Flux Proof
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
C/2
Search Parts in this Series
36501Series
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
48
48
1,2,3,...16; a+b+c
Gray
Contact Molex
Yes
No
Yes
Phosphor Bronze
Gold
Tin
Polyester
32
Open Pin Field
3
Vertical
0.114 In
2.90 mm
No
Yes
0.063 In
1.60 mm
Carton
0.100 In
2.54 mm
0.100 In
2.54 mm
16
0.4
Yes
No
No
-55°C to +125°C
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
1A
622.0 Mbps
1000V (RMS)
Material Info
Old Part Number
MMB2901C480
Reference - Drawing Numbers
Packaging Specification
Product Specification

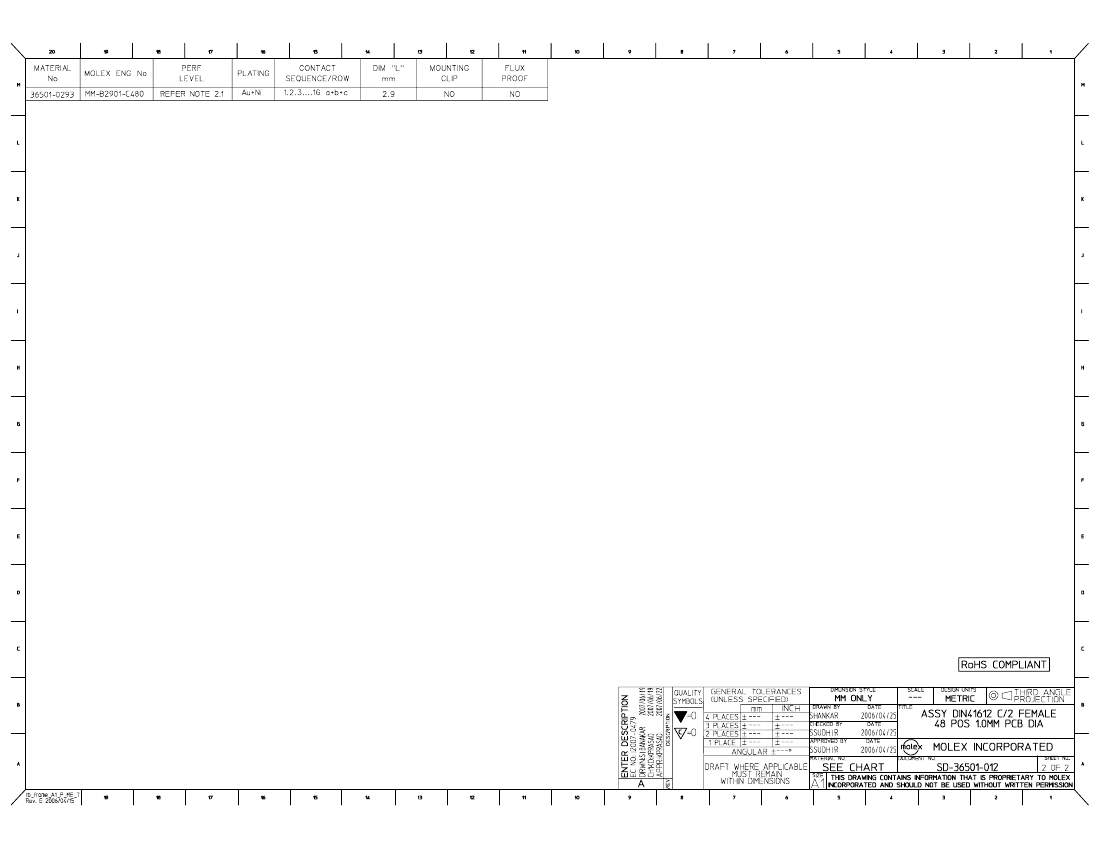

Sales Drawing
PK-36500-001
PS-36500-001
SD-36501-012
