36617-0002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36617-0002

36617-0002: Description128 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE; CategoryThe connector The connector; File Size142KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

36617-0002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36617-0002	-	-	View	Buy Now

36617-0002 Overview

128 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE

36617-0002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	ROHS AND ELV COMPLIANT
body width	0.518 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Insulation resistance	1000000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	36617
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
Base Number Matches	1

Preview

Download Datasheet

View All

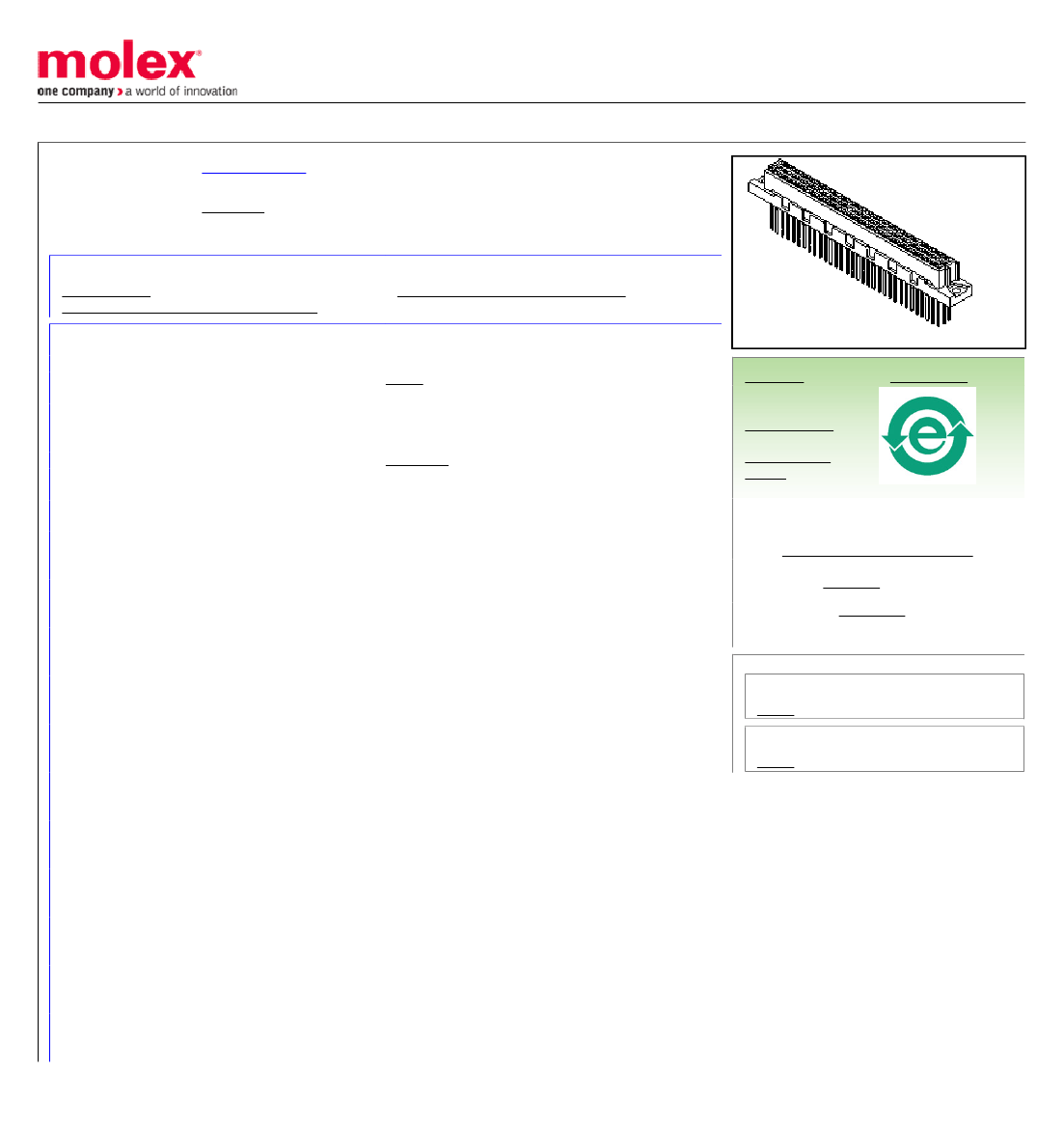

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0366170002

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Receptacle, Right Angle, Press Fit, 128 Circuits, Lead

Free

Documents:

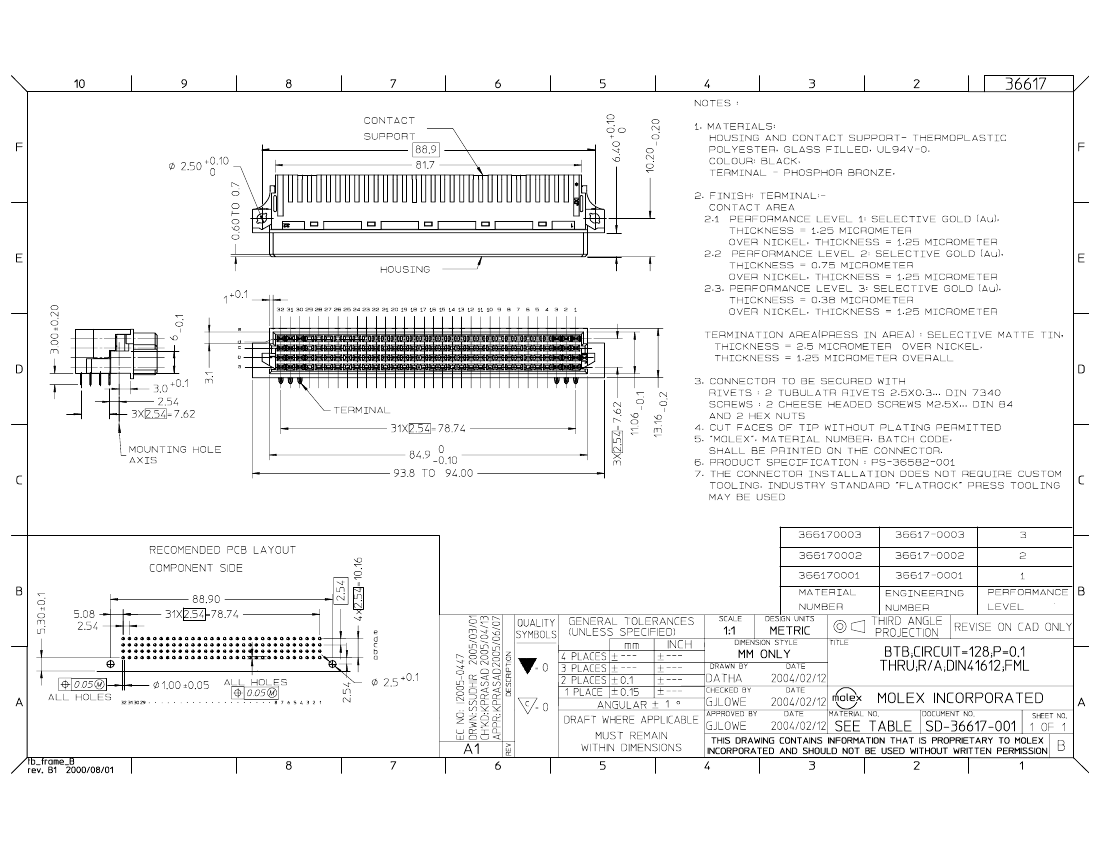

Drawing (PDF)

Product Specification PS-36582-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36617

Backplane

"R" at style represents Right Angle Female DIN

Connector

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

128

Rows A,B,C & D

400

Yes

Phosphor Bronze

Gold

Tin

Open Pin Field

Right Angle

0.118 In

3.00 mm

Yes

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

0.75

100

2.5

Yes

-55°C to +125°C

Through Hole - Compliant Pin

Search Parts in this Series

36617Series

Mates With

85015 DIN 41612 Header

36617-0002 Related Products

	36617-0002	366170002	0366170002
Description	128 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	128 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE	128 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, PRESS FIT, RECEPTACLE
Is it Rohs certified?	conform to	-	conform to
Maker	Molex	-	Molex
Reach Compliance Code	compliant	-	compliant
Other features	ROHS AND ELV COMPLIANT	-	PANEL MOUNTABLE, POLARIZED, STANDARDS: DIN 41612, IEC 603-2
Body/casing type	PLUG	-	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	-	GOLD (30)
Contact completed and terminated	TIN OVER NICKEL	-	TIN (100)
Contact point gender	FEMALE	-	FEMALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE
DIN compliance	YES	-	YES
Manufacturer's serial number	36617	-	36617
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of rows loaded	4	-	4
Terminal pitch	2.54 mm	-	2.54 mm
Termination type	SOLDER	-	PRESS FIT
Total number of contacts	128	-	128
Base Number Matches	1	-	1
