366380009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 366380009

366380009: Description36 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size433KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

366380009 Overview

36 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

366380009 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0366380009

Active

cmc_connectors

2.50mm (.098"), 3.50mm (.138") CMC Header, Right Angle, 48 Position, 36 loaded, 1

Port, Brown, Lead-free

Documents:

3D Model

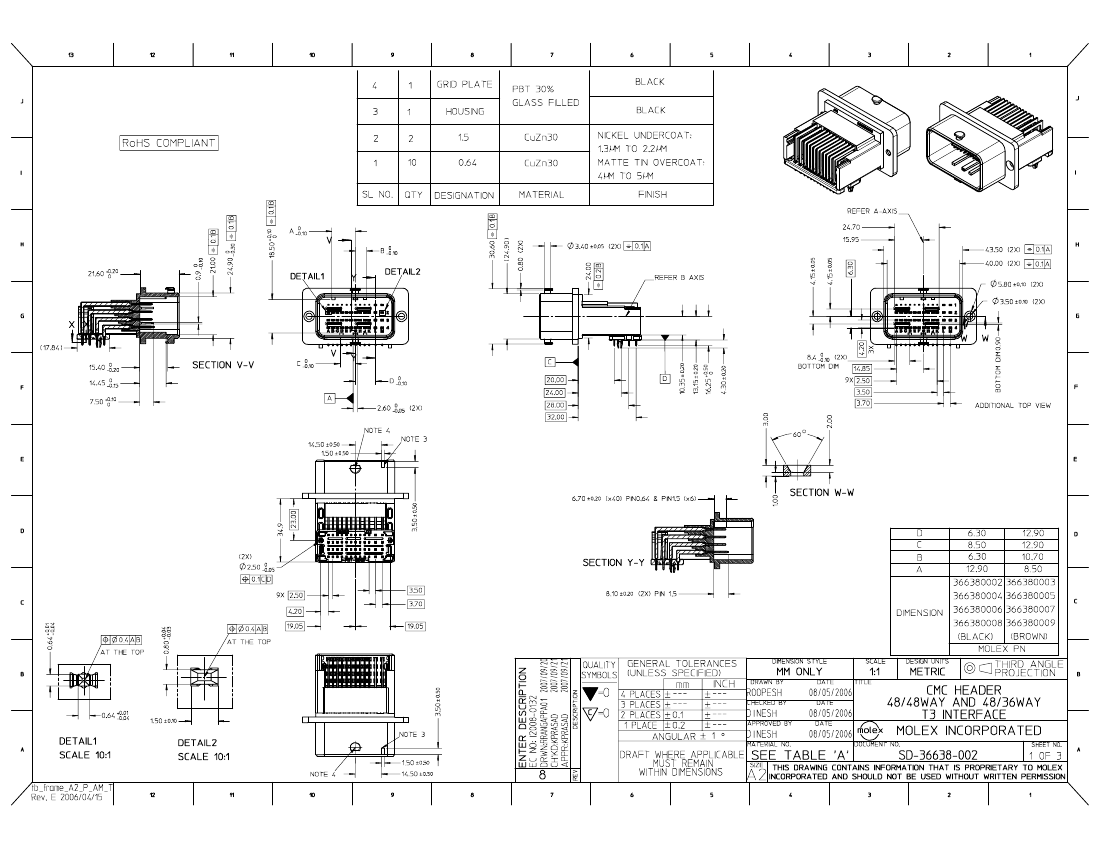

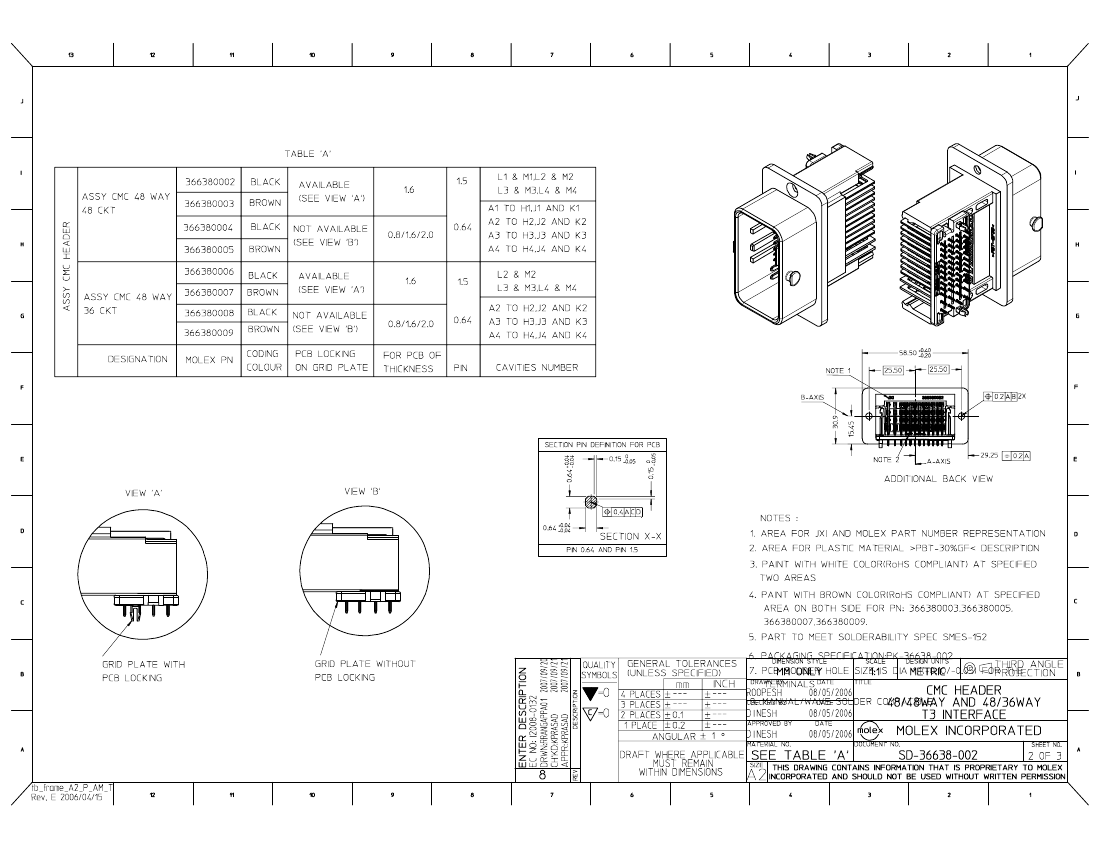

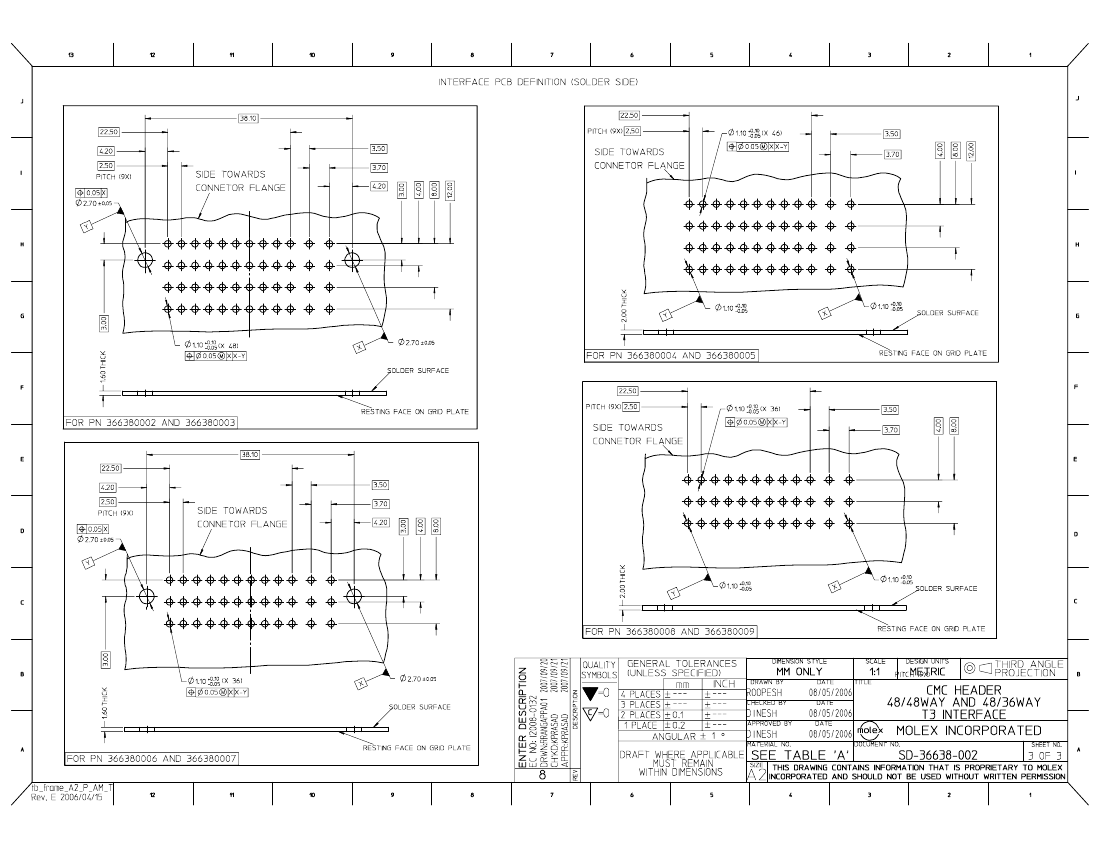

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

36638

Wire-to-Board

cmc_connectors

CMC

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

6 x 1.5mm & 30 x 0.635mm terminals

Black

Yes

0.264 In

6.70 mm

Brass

Tin

Polyester

Right Angle

0.114 In

2.90 mm

None

0.079 In

2.00 mm

Tray

0.098 In, 0.138 In, 0.146 In

2.50 mm, 3.50 mm, 3.70 mm

0.098 In, 0.138 In, 0.146 In

2.50 mm, 3.50 mm, 3.70 mm

160

Yes

Closed Ends

Search Parts in this Series

36638Series

Mates With

CMC Connectors 643201319 , 643203319 ,

Use With

CMC Connectors 643201319 , 643203319

, 643202319 , 643204319. CMC CP

Terminals Terminals 64322 , 64323. CMC

Blind Plug for CP Terminal 64325. Wire Cap

643191201

366380009 Related Products

	366380009	0366380009
Description	36 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	36 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compliant	compliant
Base Number Matches	1	1
