387006324 Overview

8.26mm

387006324 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresTHERMOPLASTIC
Fastening methodSCREW
Manufacturer's serial number38700
Installation typeBOARD
Number of layers1
Rows1
Number of channels24
safety certificateUL; CSA
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1

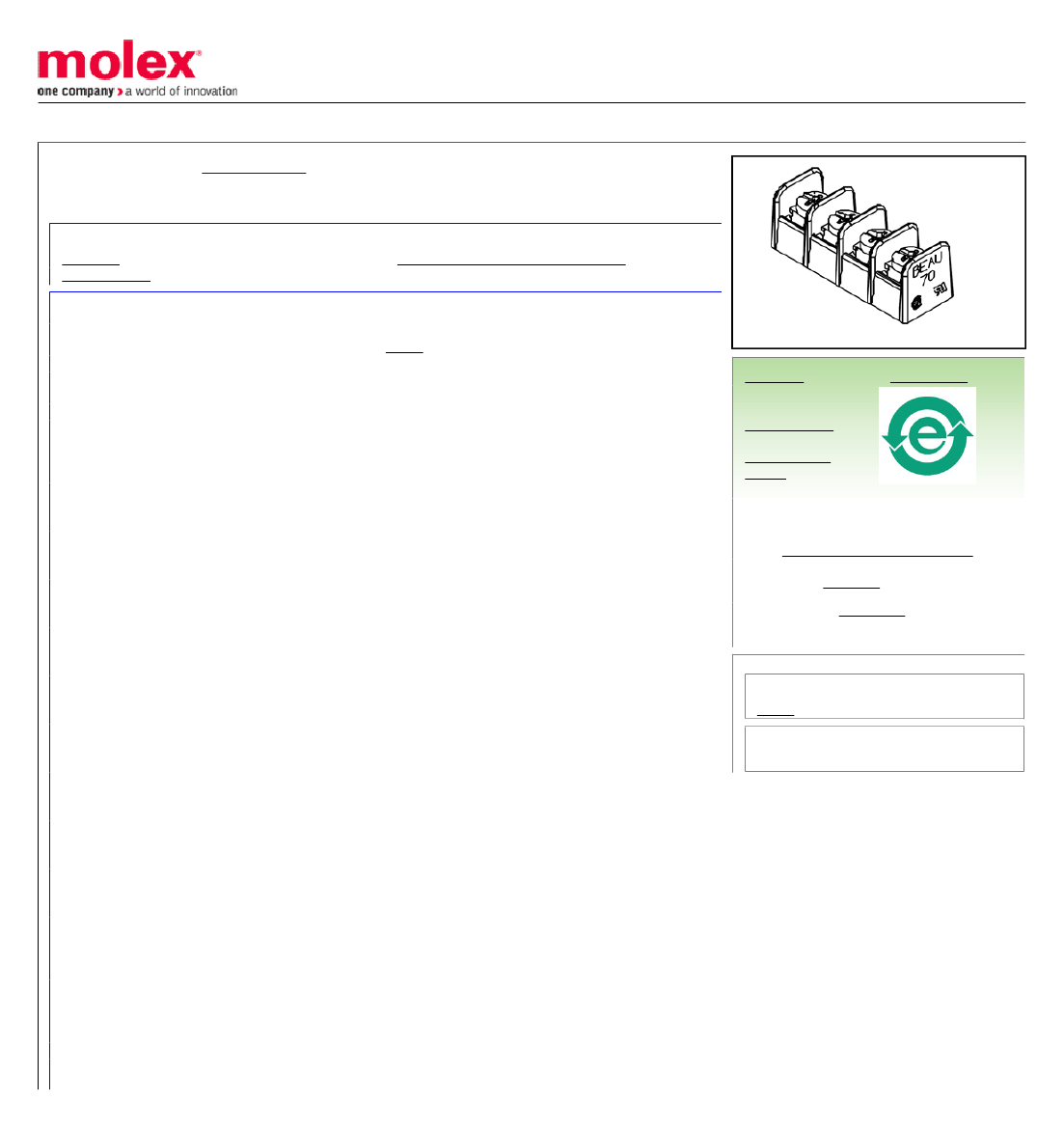

This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0387006324
Active
8.26mm (.325") Pitch Beau™ PCB Terminal Strip, without Mounting Ends, 24 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
38700
Wire-to-Board
One Piece
Fixed Mount Barrier
Barrier Strip
image - Reference only
Series
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
24
24
Black
Horizontal
None
Brass
Tin
Tin
Polyester
1
Horizontal
0.140 In
3.56 mm
None
No
0.325 In
8.26 mm
0.325 In
8.25 mm
150
3.75
150
3.75
No
Dual-Barrier
Yes
No
-40°C to +130°C
Through Hole
14, 16, 18, 20, 22
0.50 - 1.50
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
38700Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Old Part Number
70524-C
Reference - Drawing Numbers

387006324 Related Products

387006324 70524-C
Description 8.26mm 8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 24 circuits
Maker Molex Molex
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features THERMOPLASTIC PLASTIC, 94V-0
Fastening method SCREW SCREW
Manufacturer's serial number 38700 70
Installation type BOARD BOARD
Number of layers 1 1
Rows 1 1
Number of channels 24 24
safety certificate UL; CSA UL; CSA
Terminal and terminal strip types BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK
Base Number Matches 1 1
