FX1N5416 datasheet, PDF - EEWORLD Datasheet

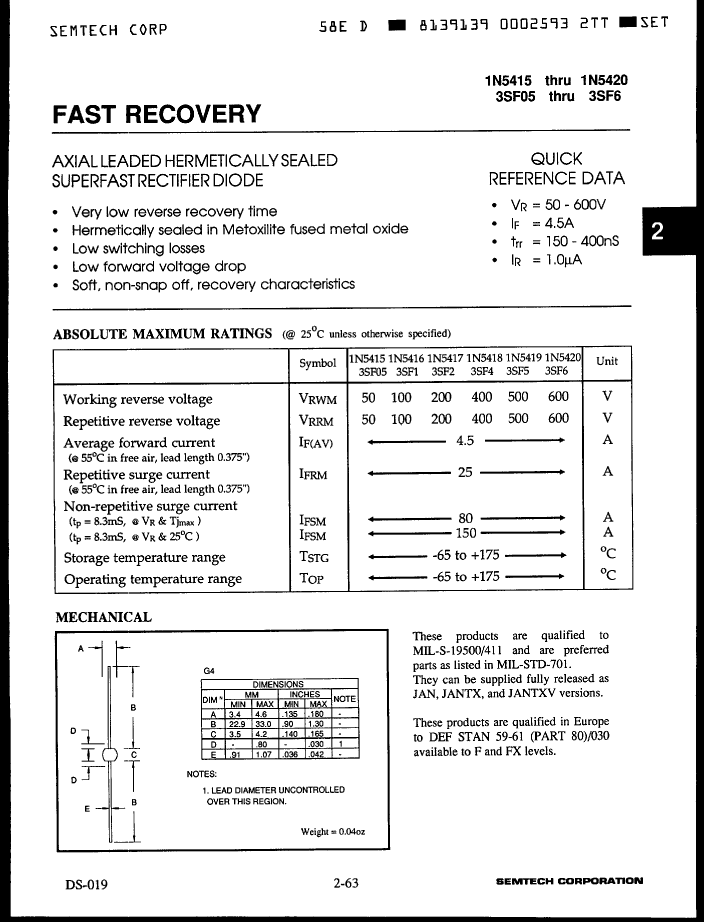

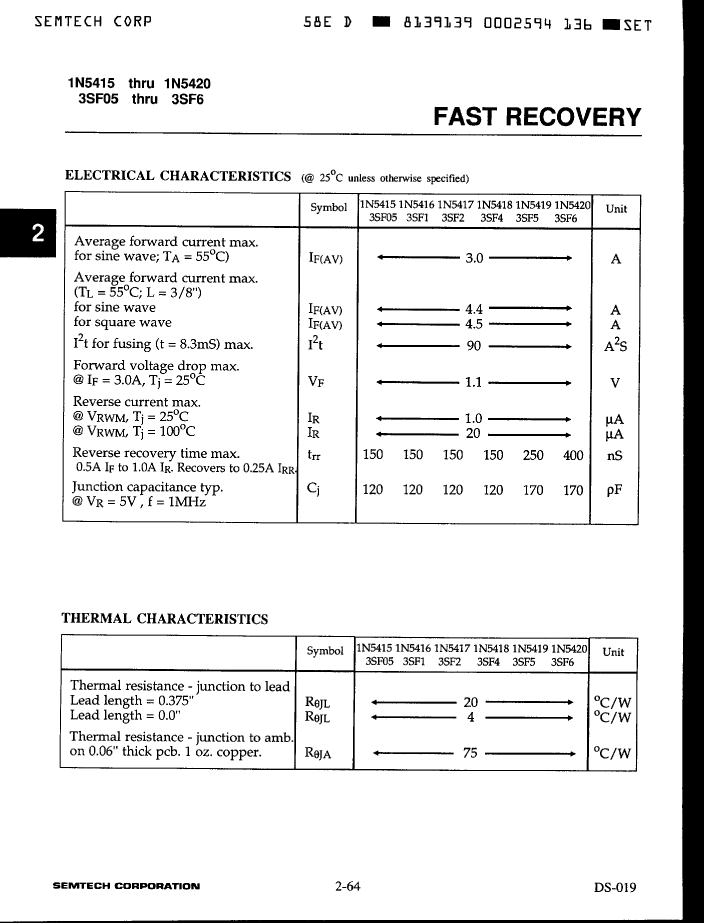

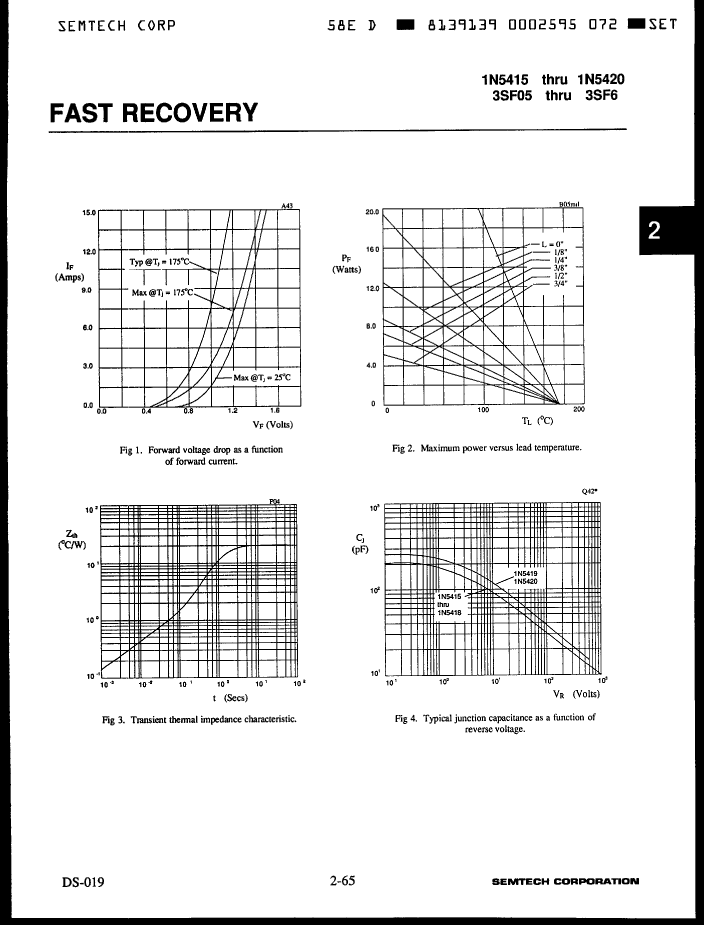

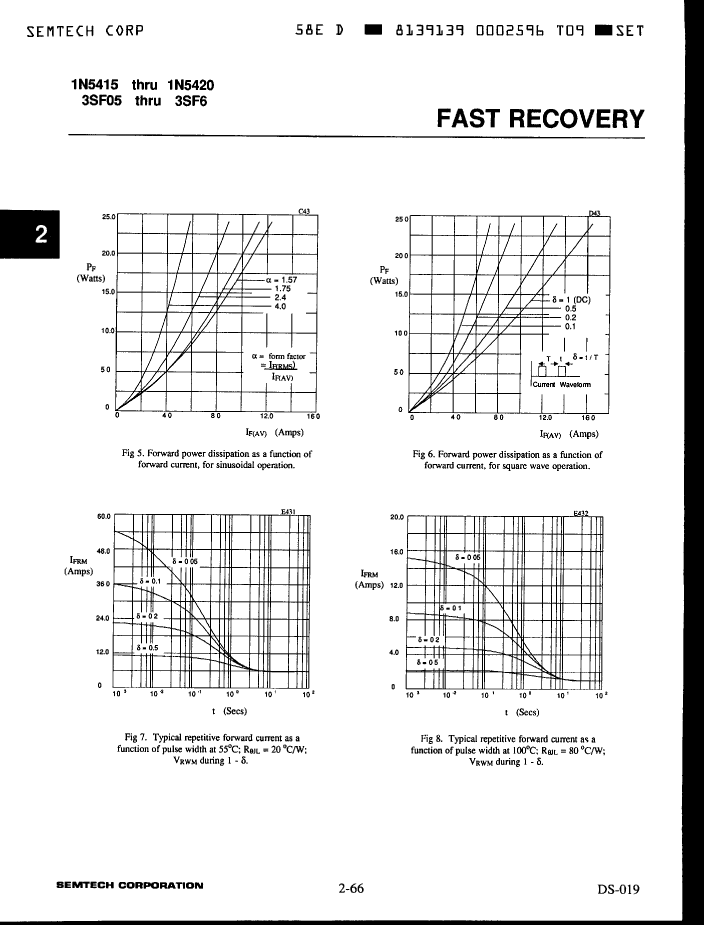

FX1N5416: DescriptionRectifier Diode, 1 Element, 4.5A, 100V V(RRM),; CategoryDiscrete semiconductor diode; File Size127KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

FX1N5416 Overview

Rectifier Diode, 1 Element, 4.5A, 100V V(RRM),

Parameter Name	Attribute value
Maker	SEMTECH
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	E-XALF-W2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	4.4 A
Package body material	UNSPECIFIED
Package shape	ELLIPTICAL
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	1 µA
Maximum reverse recovery time	0.15 µs
Reverse test voltage	100 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

	FX1N5416	F1N5416	F1N5417	F1N5418	FX1N5417	FX1N5418
Description	Rectifier Diode, 1 Element, 4.5A, 100V V(RRM),	Rectifier Diode, 1 Element, 4.5A, 100V V(RRM),	Rectifier Diode, 1 Element, 4.5A, 200V V(RRM),	Rectifier Diode, 1 Element, 4.5A, 400V V(RRM),	Rectifier Diode, 1 Element, 4.5A, 200V V(RRM),	Rectifier Diode, 1 Element, 4.5A, 400V V(RRM),
Maker	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A	80 A
Number of components	1	1	1	1	1	1
Maximum output current	4.4 A	4.5 A	4.5 A	4.5 A	4.4 A	4.4 A
Maximum repetitive peak reverse voltage	100 V	100 V	200 V	400 V	200 V	400 V
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	NO	NO	NO	NO	NO	NO
