71395-0126: Description26 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector; File Size363KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

71395-0126 Overview

26 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

71395-0126 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	26
EU RoHS regulations	Yes
state	Active
board_mounting_opti	SOLDER HOLDING POSTS
width	0.1990 inch
body_depth	0.3400 inch
body_diamete	1.3 inch
Shell style	PLUG
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connector male and female	FEMALE
contact_patte	RECTANGULAR
contact_resistance	15 mohm
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1500VAC
According to DIN	NO
durability	50 Cycles
Filter characteristics	NO
Comply with IEC	NO
insulation_resistance	1.00E9 ohm
insulator_col	BLACK
insulator_material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer Series	71395
mating_contact_pitch__inch_	0.1
mating_contact_row_spacing__inch_	0.1
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	2
Number of load rows	2
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	105
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
lating_thickness__inch_	15u
ed_current__signal_	2.5 A
eference_standard	UL
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
Terminal type	SURFACE MOUNT
UL flammability code	94V-0
dditional_feature	HIGH PROFILE

Preview

Download Datasheet

View All

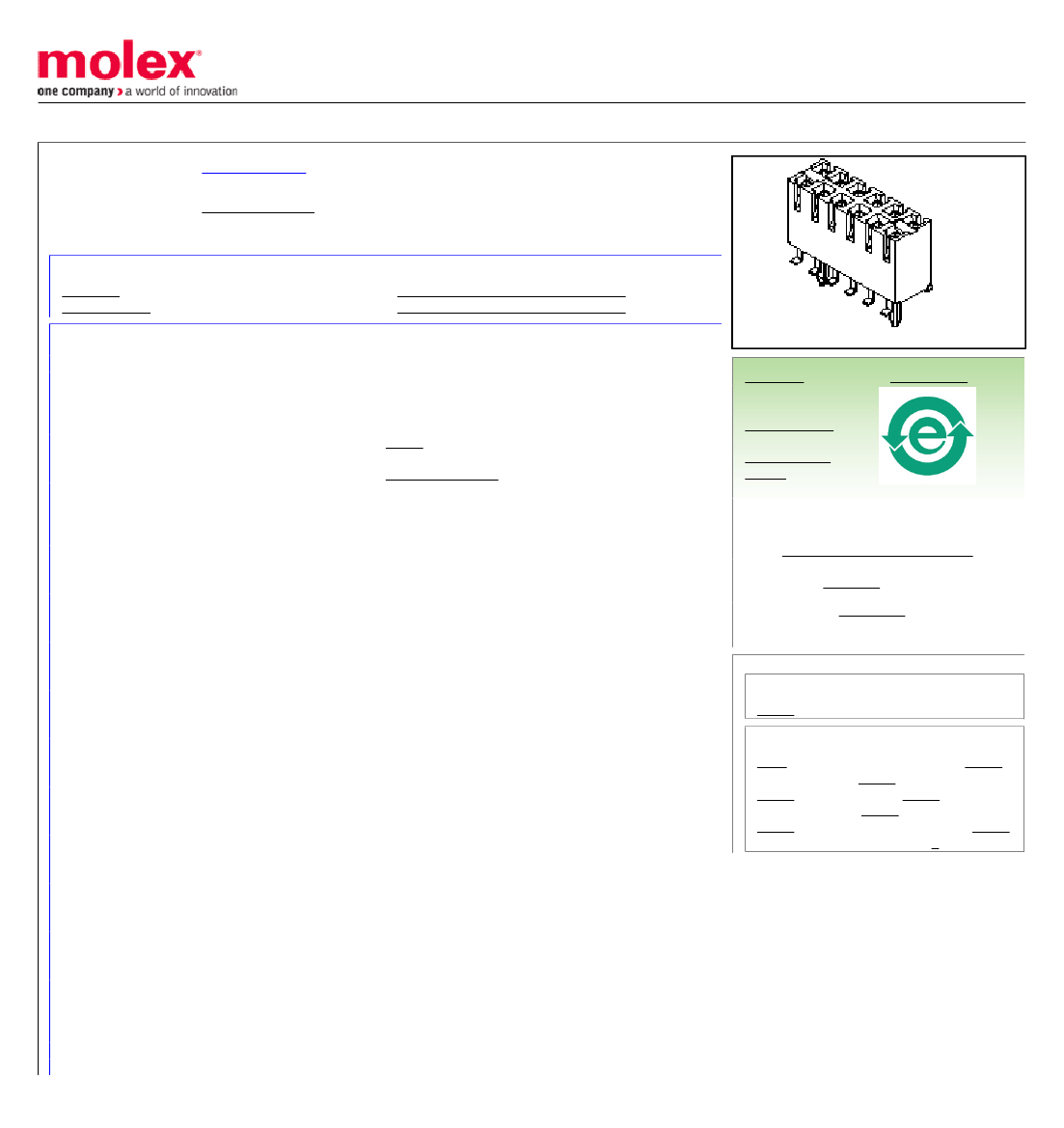

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015453526

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® PCB Connector, Surface Mount, High Profile, Dual Row,

Vertical, 26 Circuits

Documents:

3D Model

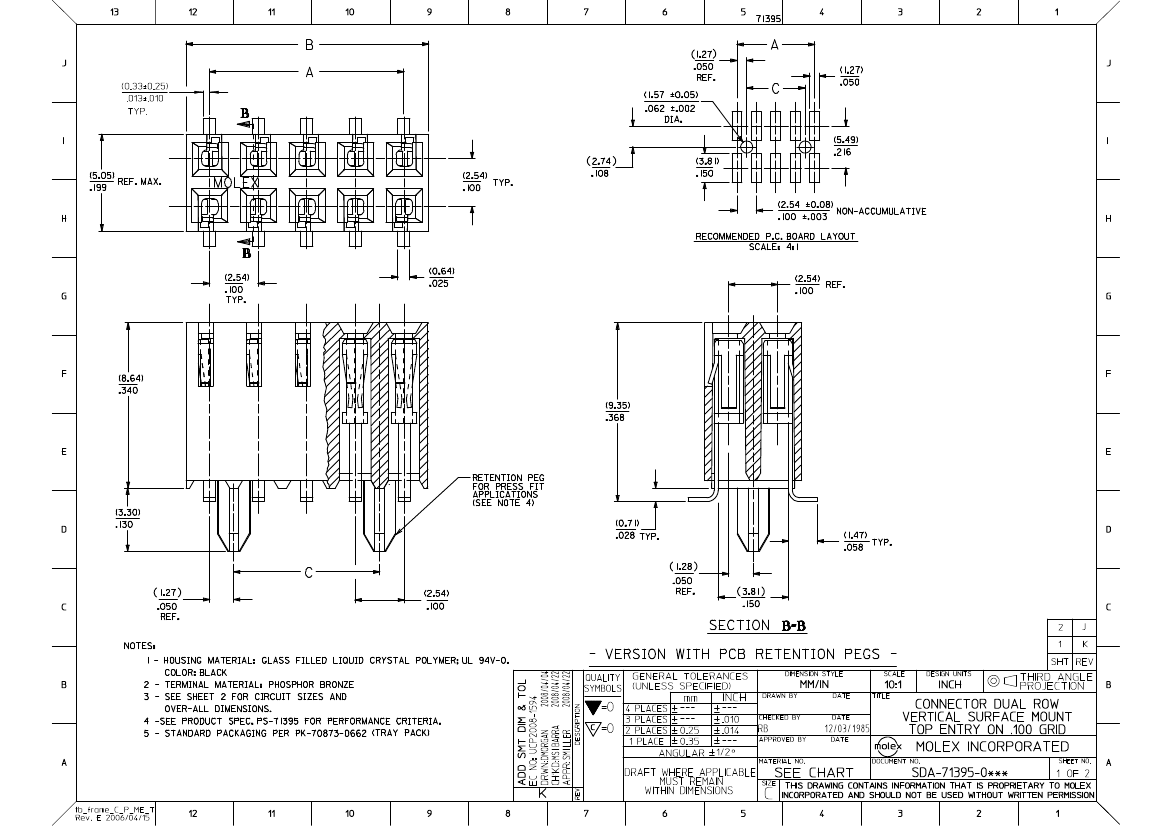

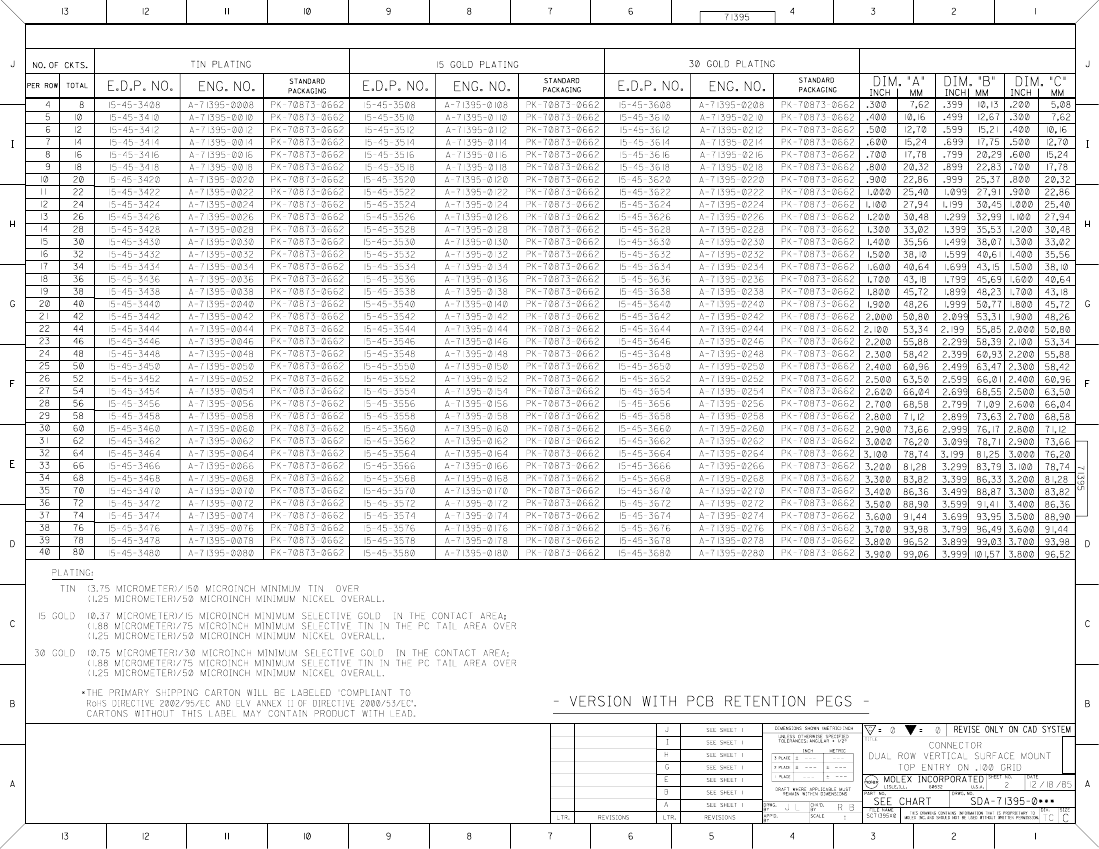

Drawing (PDF)

Product Specification PS-71395 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

71395

Board-to-Board

cgrid__sl_products

C-Grid®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

None

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

0.058 In

1.47 mm

Yes

Tray

0.100 In

2.54 mm

0.375

1.875

N/A

-40°C to +105°C

Surface Mount

Search Parts in this Series

71395Series

Mates With

8624 C-Grid® Breakaway Header, 70246

Straight Header, 70247 Right Angle Header,

70287 C-Grid® Header, 70227 Dual Row

C-Grid® Header, 70567 C-Grid® Header,

70280 C-Grid® Breakaway Header, 70524

C-Grid® Breakaway Header, 7

Electrical

Current - Maximum per Contact

Grounding to PCB

Voltage - Maximum

2.5A

250V
