E-6471-4: Description4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP; CategoryThe connector; File Size285KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

E-6471-4 Overview

4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

E-6471-4 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Total number of contacts	4
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	6471
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	Dual board connector
Connector male and female	Jack
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Number of load rows	1
Terminal type	riveting
UL flammability code	94V-0

Preview

Download Datasheet

View All

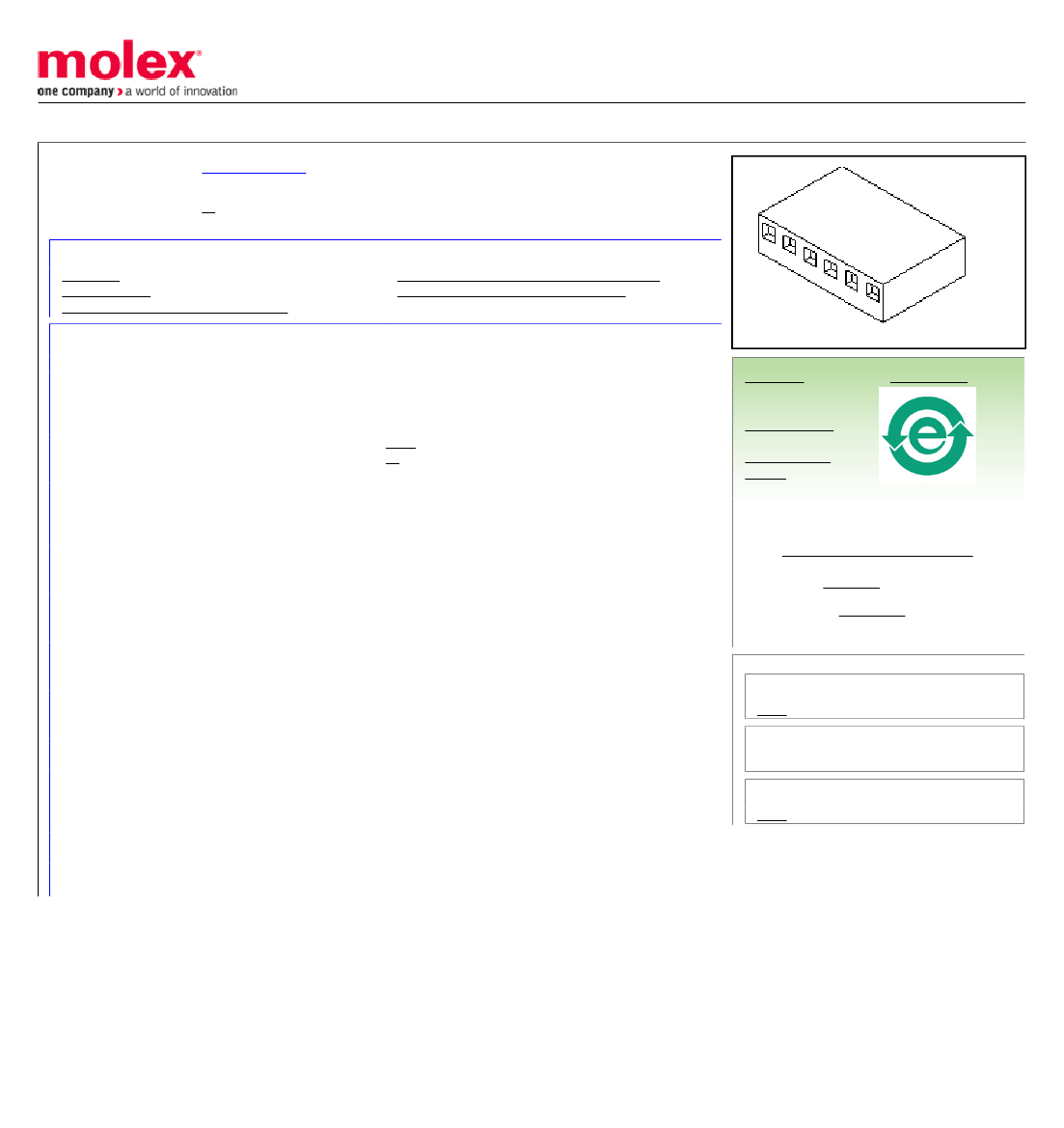

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022012046

Active

2.54mm (.100") Pitch KK® Crimp Terminal Housing, 4 Circuits, Use with 4809

Documents:

3D Model

Drawing (PDF)

Product Specification PS-10-07 (PDF)

Product Specification PS-99020-0088 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19880

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Overview

Product Name

Crimp Housings

6471

KK®

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Natural (White)

94V-0

Female

None

Nylon

Bag

0.100 In

2.54 mm

0°C to +75°C

Search Parts in this Series

6471Series

Mates With

2.54mm (.100") Pitch KK ® PCB Headers

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Old Part Number

6471-04

Use With

4809 KK® Crimp Terminal

Reference - Drawing Numbers

Product Specification

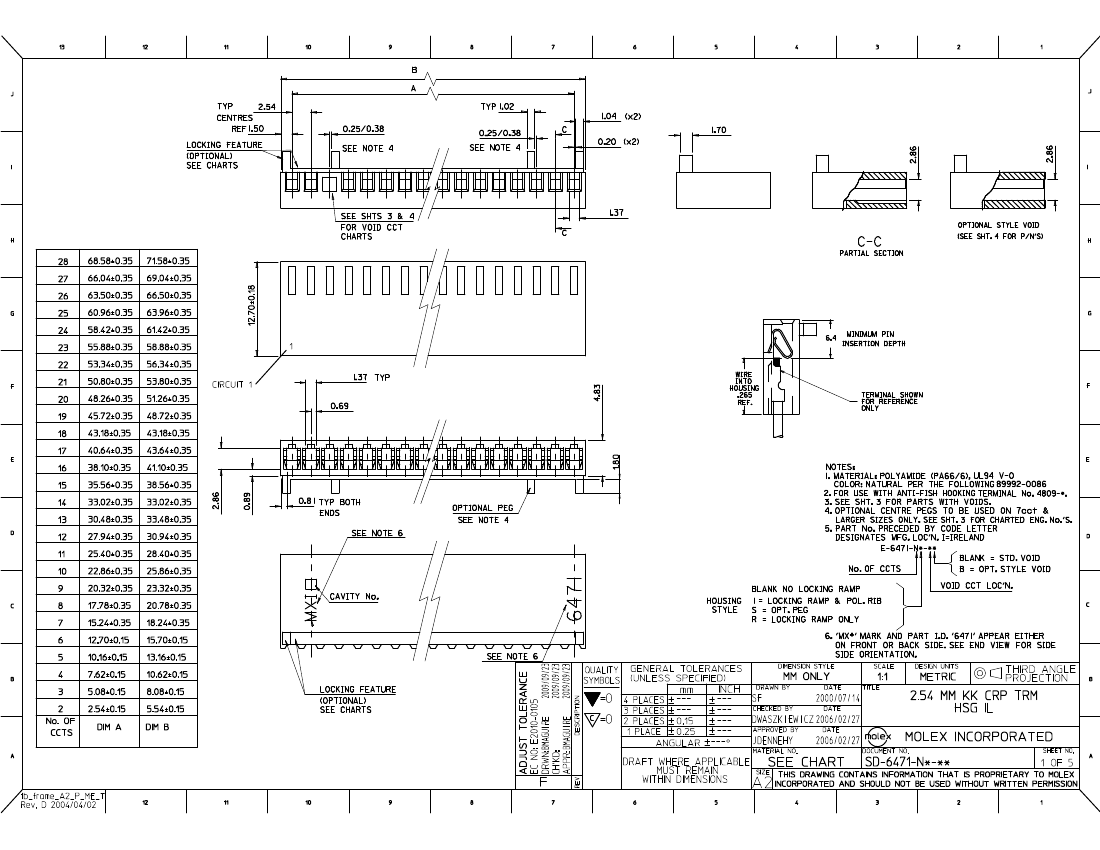

Sales Drawing

PS-10-07, PS-99020-0088

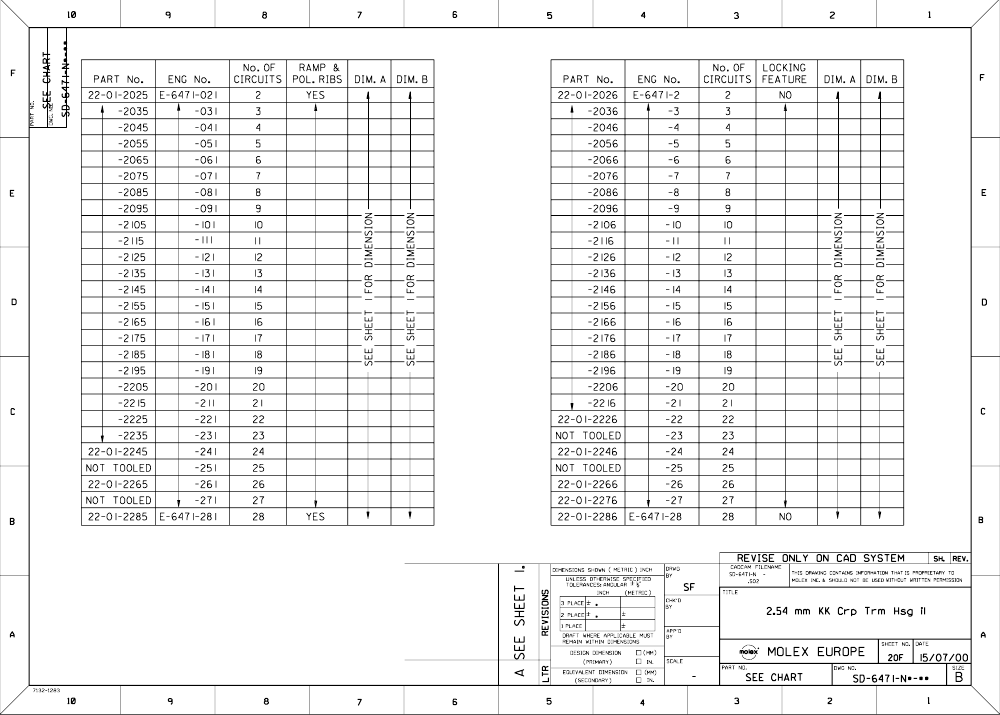

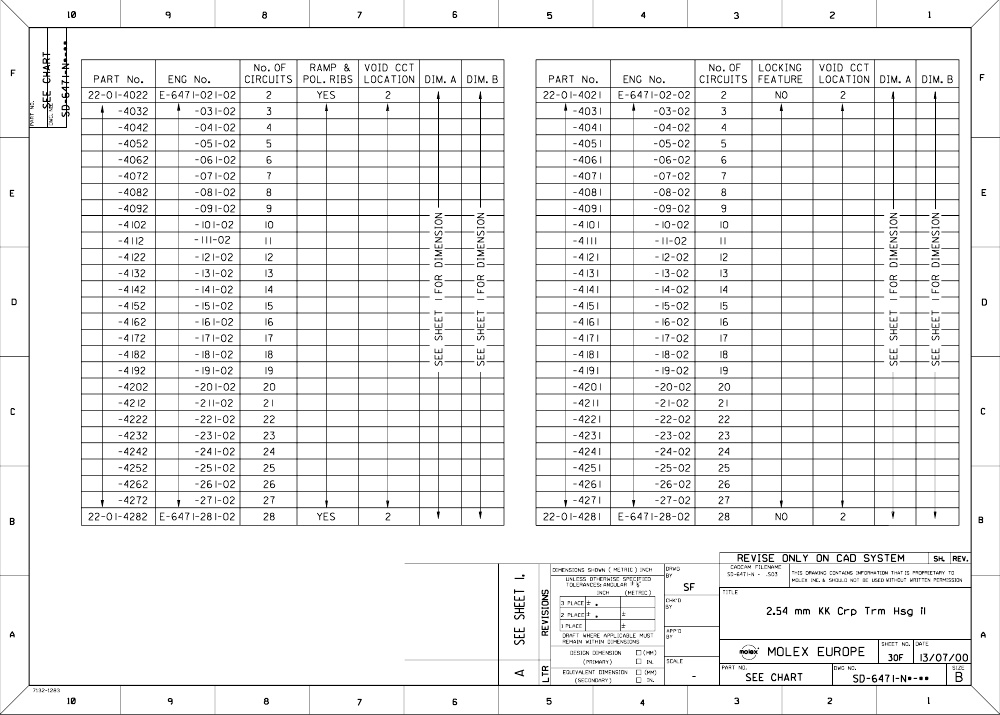

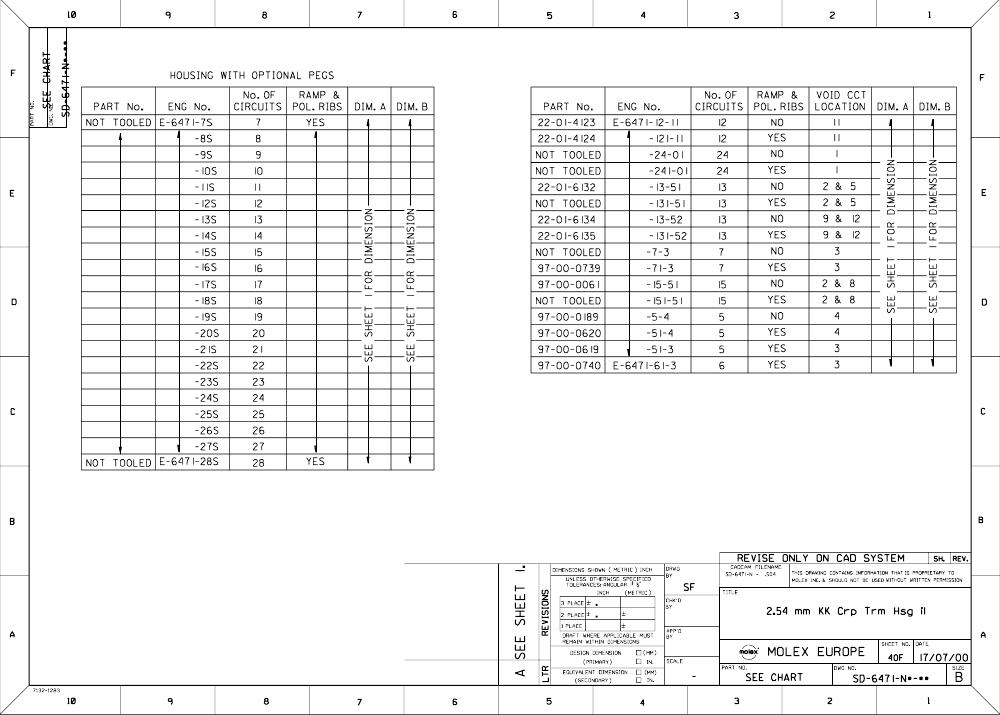

SD-6471-N*-**

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
