35979-0420 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35979-0420

35979-0420: Description4 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size100KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35979-0420 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35979-0420	-	-	View	Buy Now

35979-0420 Overview

4 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

35979-0420 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	Headers & Wire Housings 7.92 PITCH W-T-B CON 92 PITCH W-T-B CONN.
Other features	LOW PROFILE, POLARIZED
body width	0.337 inch
subject depth	0.528 inch
body length	1.091 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	35979
Plug contact pitch	0.312 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	7.92 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.5838 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

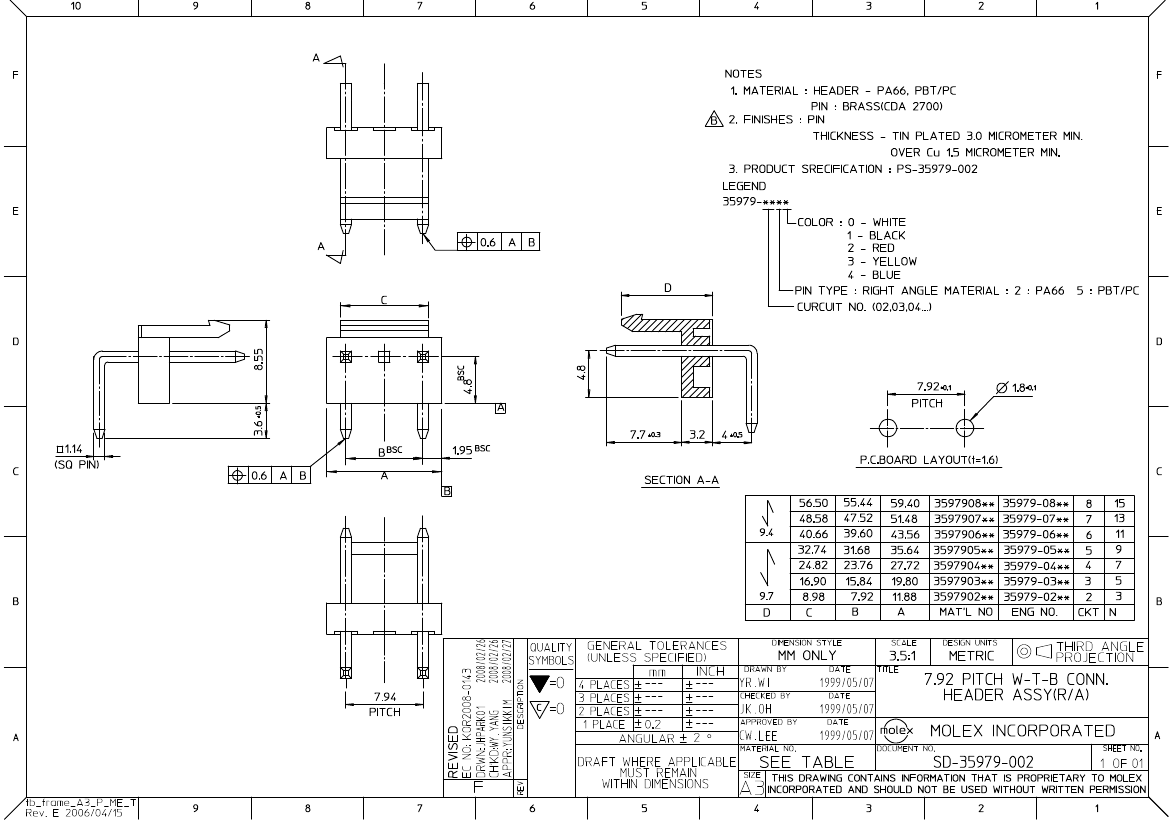

Drawing (PDF)
