395040003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395040003

395040003: Description3.50mm; CategoryThe connector terminals; File Size179KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395040003 Overview

3.50mm

395040003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	NYLON 66
Fastening method	SCREW
Manufacturer's serial number	39504
Number of layers	1
Rows	1
Number of channels	3
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

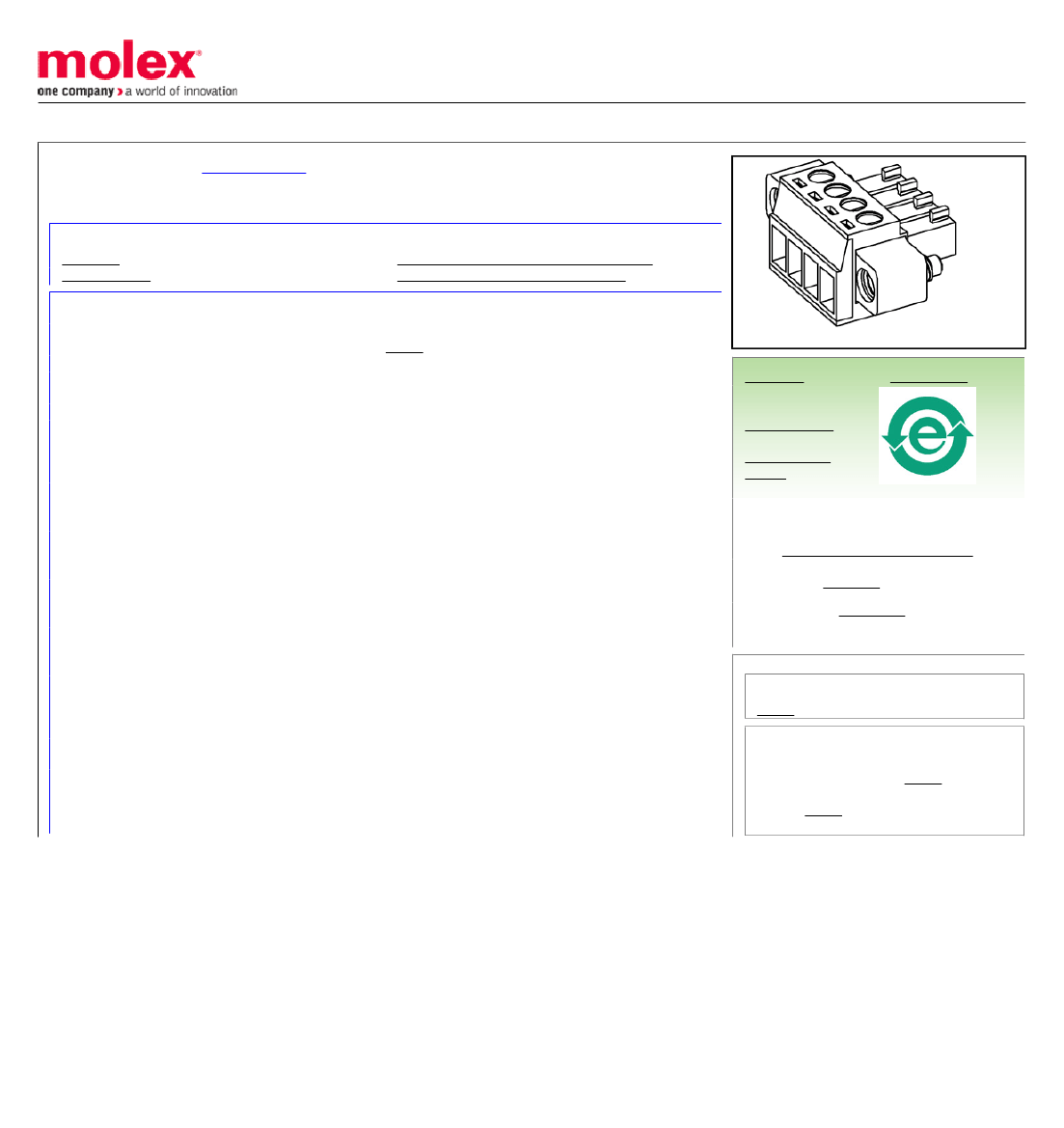

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0395040003

Active

3.50mm (.138") Pitch Eurostyle™ Horizontal Plug, with Retention Screws, 3 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39504

Wire-to-Board

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

image - Reference only

Series

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Vertical

Yes

Horizontal

0.138 In

3.50 mm

Yes

-40°C to +105°C

16, 18, 20, 22, 24, 26, 28, 30

0.05 - 1.31

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

Voltage - Maximum

300V

Search Parts in this Series

39504Series

Mates With

Most 3.50mm (.138") Pitch Industry

Standard PCB Headers, 39505 Vertical

PCB Header with Threaded Retention

Inserts, 39506 Horizontal PCB Header with

Threaded Retention Inserts

Material Info

Reference - Drawing Numbers

Product Specification

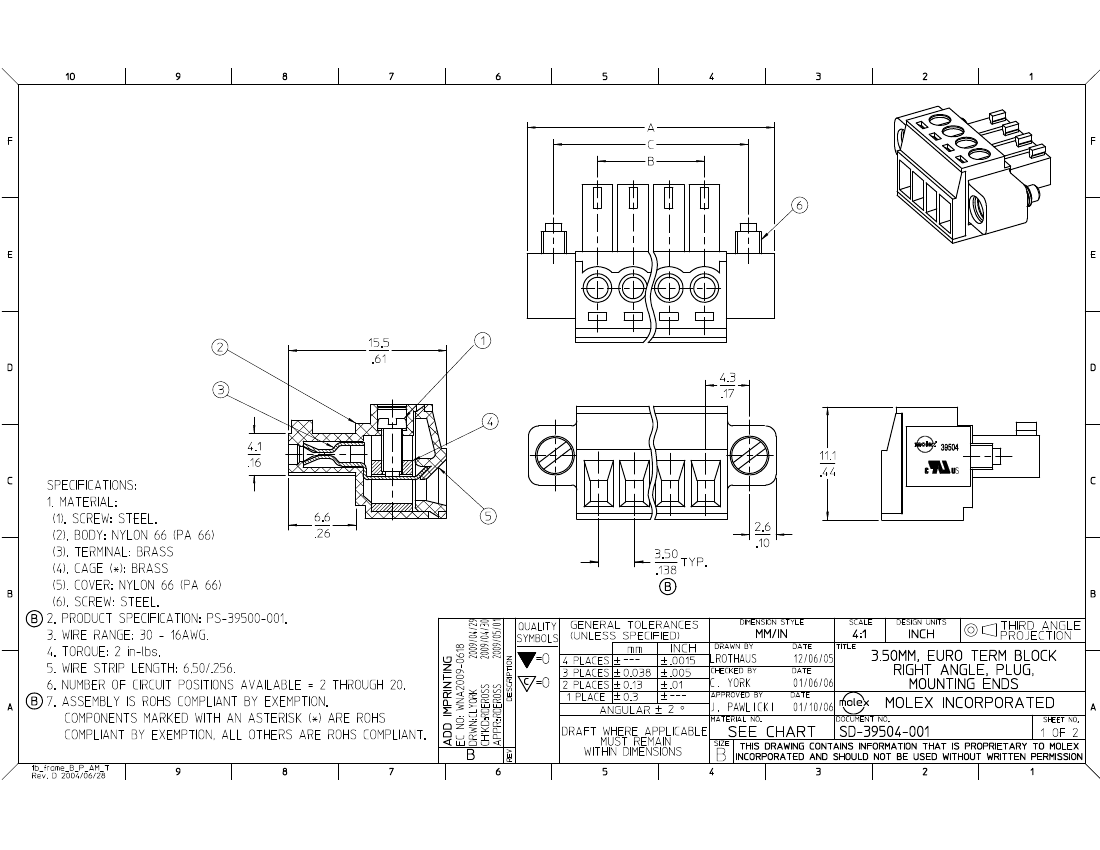

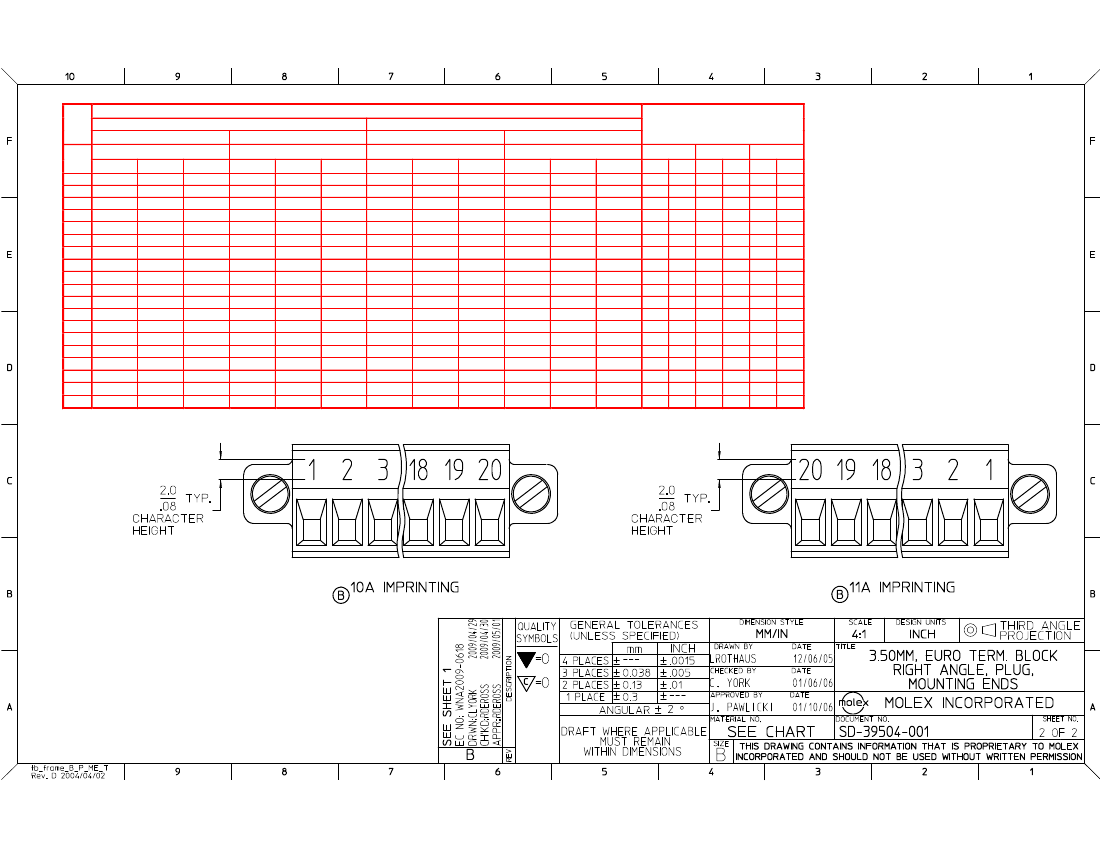

Sales Drawing

PS-39500-001

SD-39504-001

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
