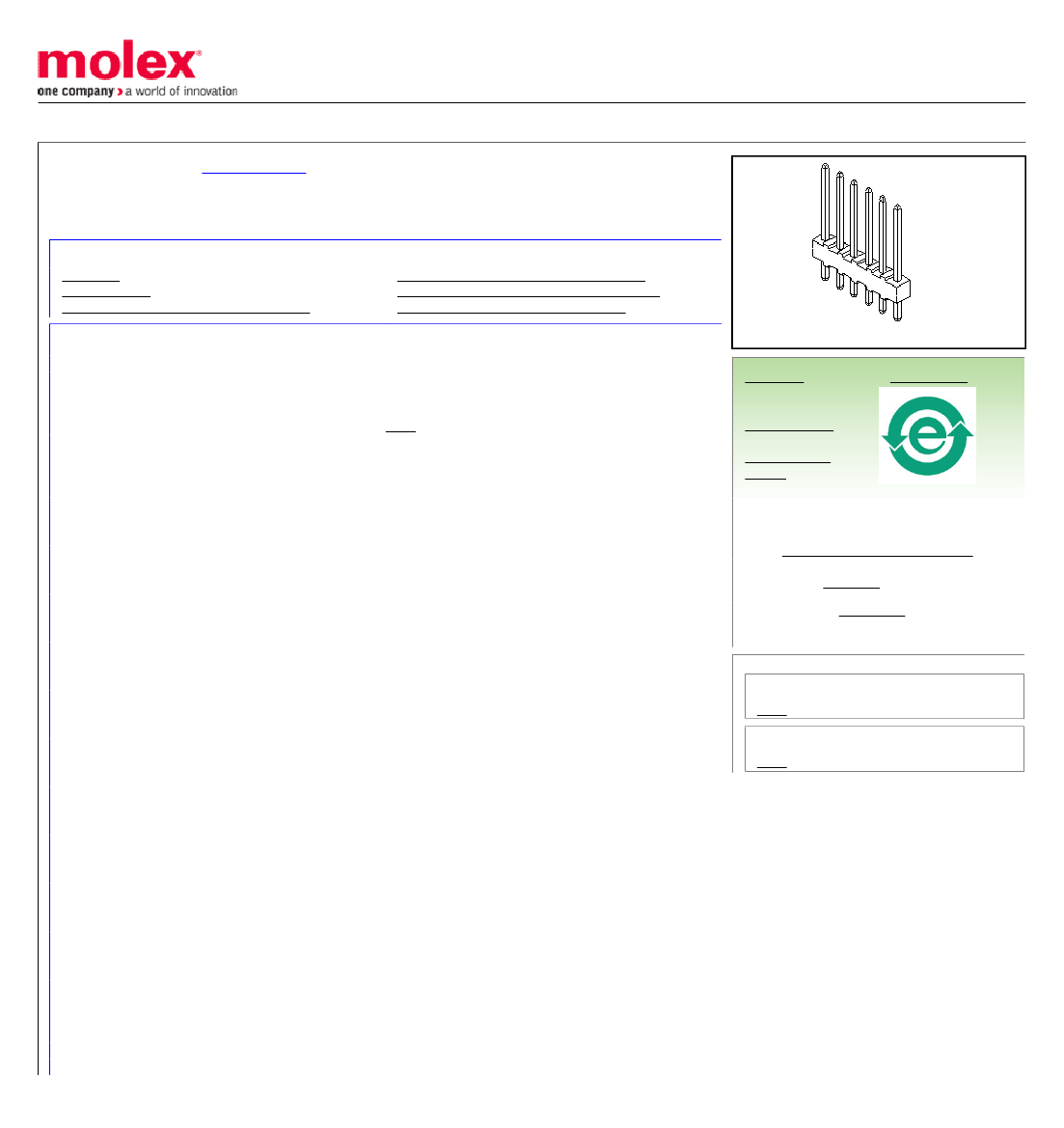

3022-03B: Description3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size106KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

3022-03B Overview

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022031032

Active

2.50mm (.098") Pitch Header, Single Row, 11.10mm (..437") Mating Pin Length, 3

Circuits

Documents:

3D Model

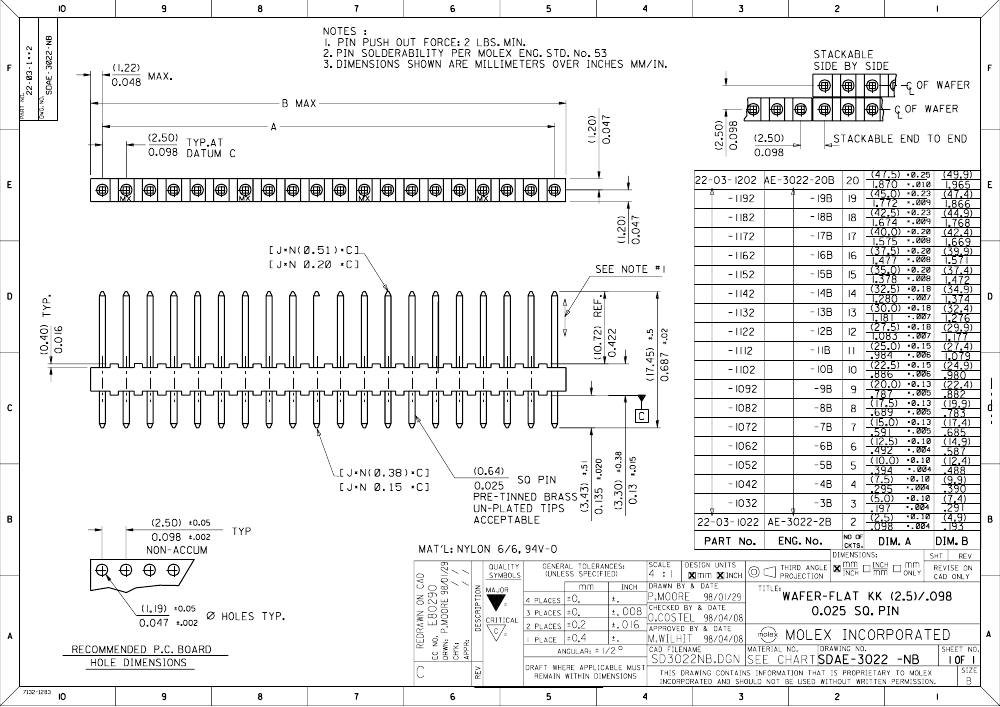

Drawing (PDF)

Product Specification PS-3022-003 (PDF)

Product Specification PS-3022-004 (PDF)

Product Specification PS-99020-0088 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Application

Product Name

PCB Headers

3022

Wire-to-Board

N/A

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural (White)

94V-0

None

Brass

Tin

Nylon

Vertical

0.134 In

3.40 mm

None

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

200

-40°C to +105°C

Through Hole

Search Parts in this Series

3022Series

Mates With

5124

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

3022-03B Related Products

	3022-03B	3022-09B	3022-10B	3022-12B	3022-14B	3022-3B	3022-8B
Description	3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	2.50mm (.098) pitch header, single row, 11.10mm (..437) mating pin length, 9 circuits	2.50mm (.098) pitch header, single row, 11.10mm (..437) mating pin length, 10 circuits	2.50mm (.098) pitch header, single row, 11.10mm (..437) mating pin length, 12 circuits	2.50mm (.098) pitch header, single row, 11.10mm (..437) mating pin length, 14 circuits	2.50mm (.098) pitch header, single row, 11.10mm (..437) mating pin length, 3 circuits	2.50mm (.098) pitch header, single row, 11.10mm (..437) mating pin length, 8 circuits

Recommended Resources
