5962R9581301TCC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962R9581301TCC

5962R9581301TCC: Description1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP14, CERAMIC, DIP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size25KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9581301TCC Overview

1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP14, CERAMIC, DIP-14

5962R9581301TCC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	1
Number of terminals	14
Nominal off-state isolation	40 dB
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	450 ns
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm

Preview

Download Datasheet

View All

HS-303RH-T

Data Sheet

July 1999

File Number

4602.1

Radiation Hardened

CMOS Dual SPDT Analog Switch

Intersil’s Satellite Applications

(SAF) devices are fully

tested and guaranteed to 100kRAD Total Dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The HS-303RH-T analog switch is a monolithic device

fabricated using Radiation Hardened CMOS technology and

the Intersil dielectric isolation process for latch-up free

operation. Improved total dose hardness is obtained by

layout (thin oxide tabs extending to a channel stop) and

processing (hardened gate oxide). This switch offers low-

resistance switching performance for analog voltages up to

the supply rails. “ON” resistance is low and stays reasonably

constant over the full range of operating voltage and current.

“ON” resistance also stays reasonably constant when

exposed to radiation, being typically 30Ω pre-rad and 35Ω

post 100kRAD(Si). Break-before-make switching is

controlled by 5V digital inputs.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

• No Latch-Up, Dielectrically Isolated Device Islands

• Pin for Pin Compatible with Intersil HI-303 Series Analog

Switches

• Analog Signal Range 15V

• Low Leakage . . . . . . . . . . . . . . . . 100nA (Max, Post Rad)

• Low r

. . . . . . . . . . . . . . . . . . . . . . 60Ω (Max, Post Rad)

• Low Operating Power . . . . . . . . . . 100µA (Max, Post Rad)

Pinouts

HS1-303RH-T (SBDIP), CDIP2-T14

TOP VIEW

14 V+

13 S4

12 D4

11 D2

10 S2

9 IN2

8 V-

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HS-303RH-T

are contained in SMD 5962-95813.

A “hot-link” is provided

from our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

IN1

GND

HS9-303RH-T (FLATPACK) CDFP3-F14

TOP VIEW

V+

IN2

V-

Ordering Information

ORDERING

NUMBER

5962R9581301TCC

5962R9581304TXC

PART

NUMBER

HS1-303RH-T

HS9-303RH-T

TEMP.

RANGE

(

-55 to 125

IN1

GND

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.

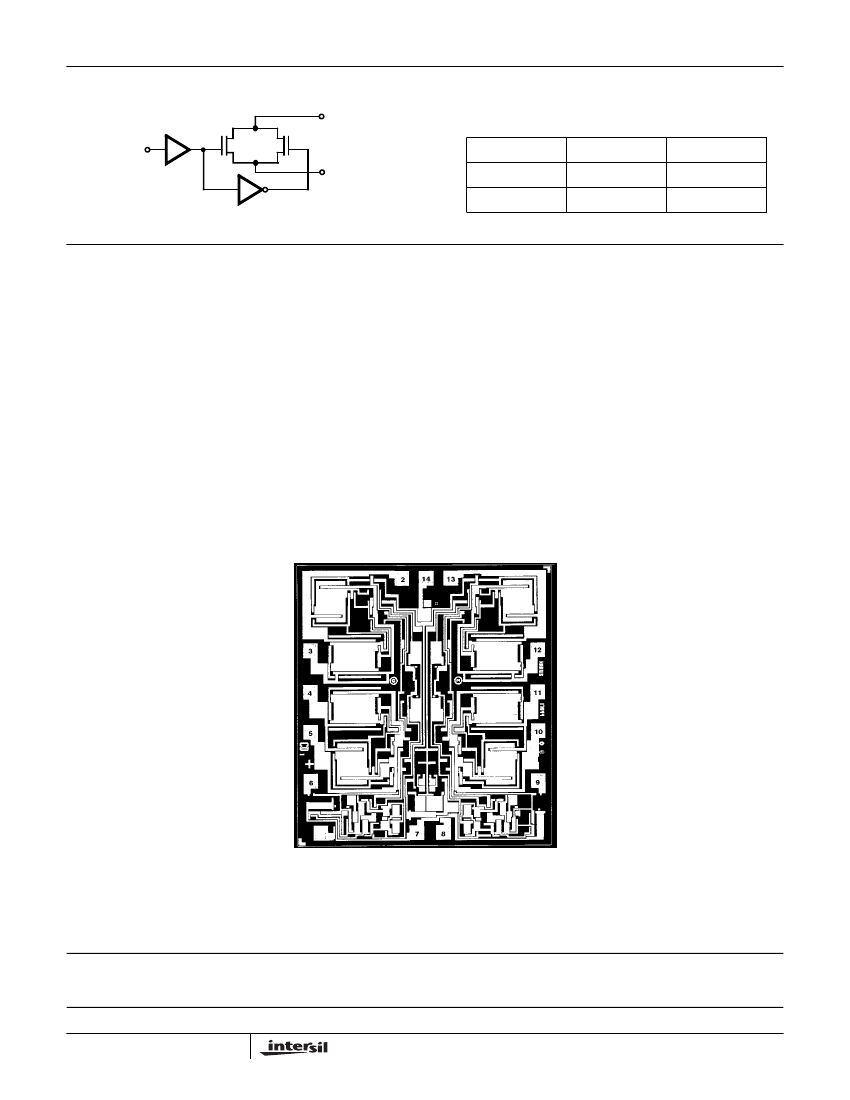

5962R9581301TCC Related Products

	5962R9581301TCC	5962R9581304TXC	HS9-303RH-T	HS1-303RH-T
Description	1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP14, CERAMIC, DIP-14	DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDFP14, CERAMIC, DFP-14	DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDFP14, CERAMIC, DFP-14	DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP14, SIDE BRAZED, CERAMIC, DIP-14
Parts packaging code	DIP	DFP	DFP	DIP
package instruction	DIP, DIP14,.3	DFP,	DFP, FL14,.3	DIP, DIP14,.3
Contacts	14	14	14	14
Reach Compliance Code	unknown	compliant	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	SPDT	SPDT	SPDT	SPDT
JESD-30 code	R-CDIP-T14	R-CDFP-F14	R-CDFP-F14	R-CDIP-T14
JESD-609 code	e4	e4	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1
Number of functions	1	2	2	2
Number of terminals	14	14	14	14
Nominal off-state isolation	40 dB	40 dB	40 dB	40 dB
Maximum on-state resistance (Ron)	75 Ω	75 Ω	75 Ω	75 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm	2.92 mm	2.92 mm	5.08 mm
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	YES	YES	NO
Maximum disconnect time	450 ns	450 ns	450 ns	450 ns
Maximum connection time	500 ns	500 ns	500 ns	500 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
width	7.62 mm	6.285 mm	6.285 mm	7.62 mm
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
output	SEPARATE OUTPUT	-	SEPARATE OUTPUT	SEPARATE OUTPUT
Encapsulate equivalent code	DIP14,.3	-	FL14,.3	DIP14,.3
power supply	+-15 V	-	+-15 V	+-15 V
switch	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
