3094-10A

Description
10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Categorysemiconductor    Other integrated circuit (IC)
File Size234KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

3094-10A Overview

10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

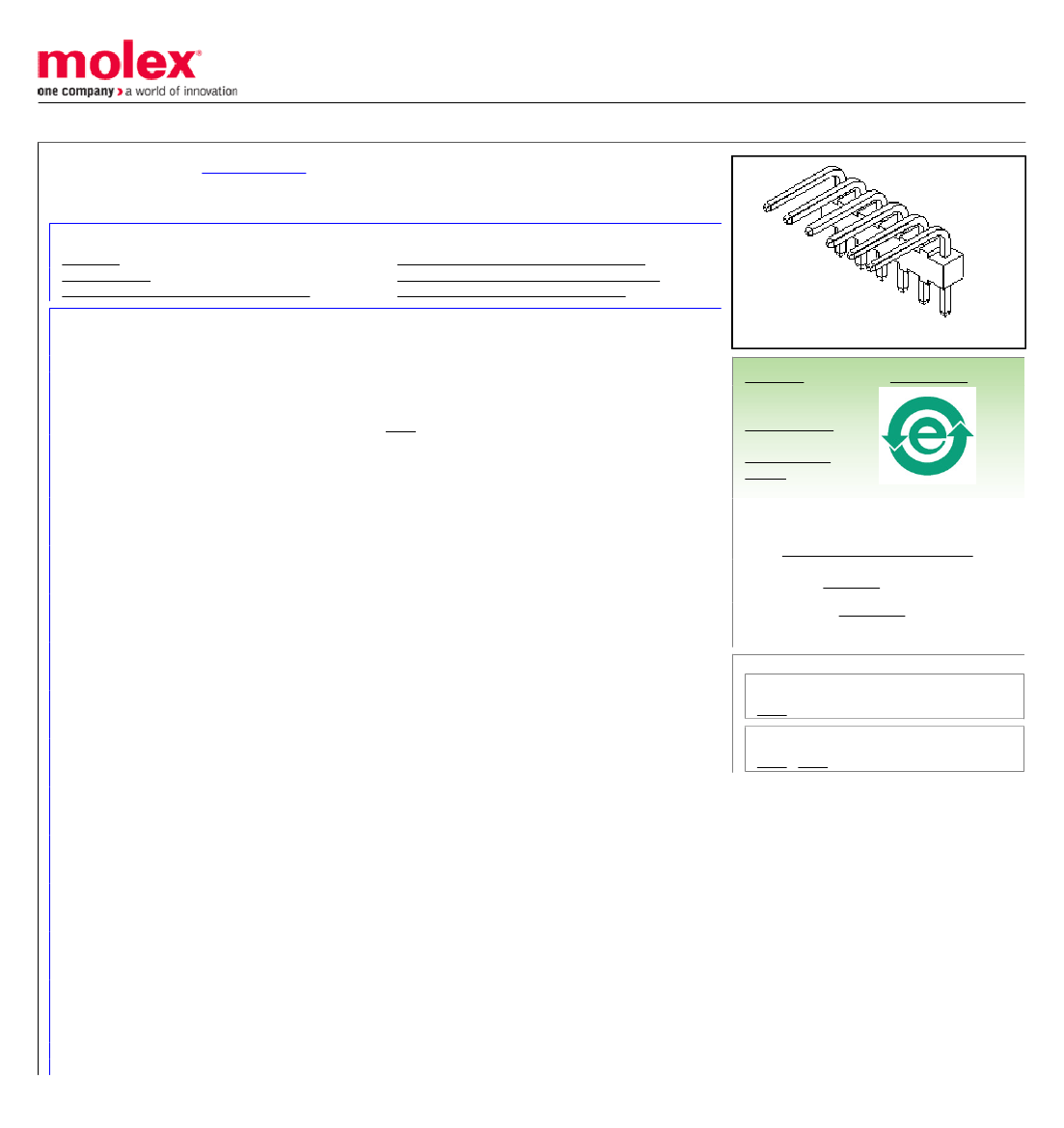

This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0022051101
Active
2.50mm (.098") Pitch Header, Right Angle, Square Pin, 10 Circuits, Tin (Sn) Plating
Documents:
3D Model

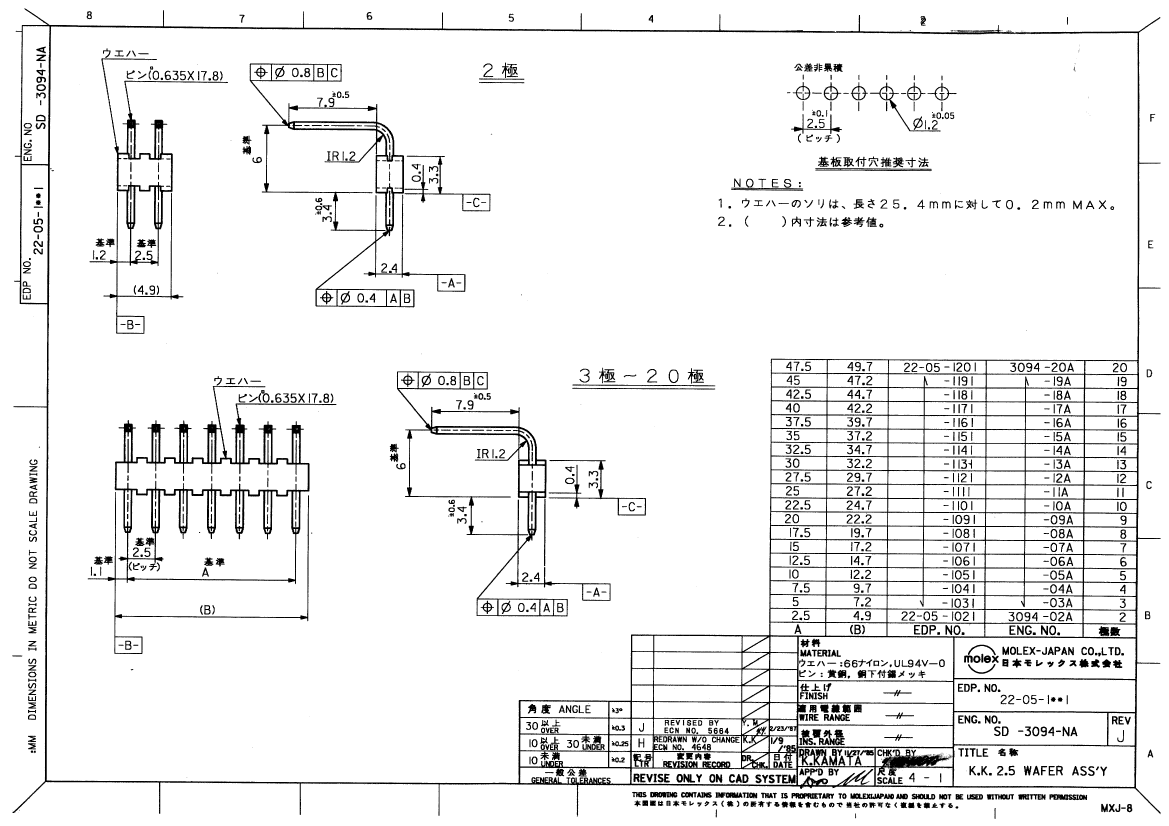

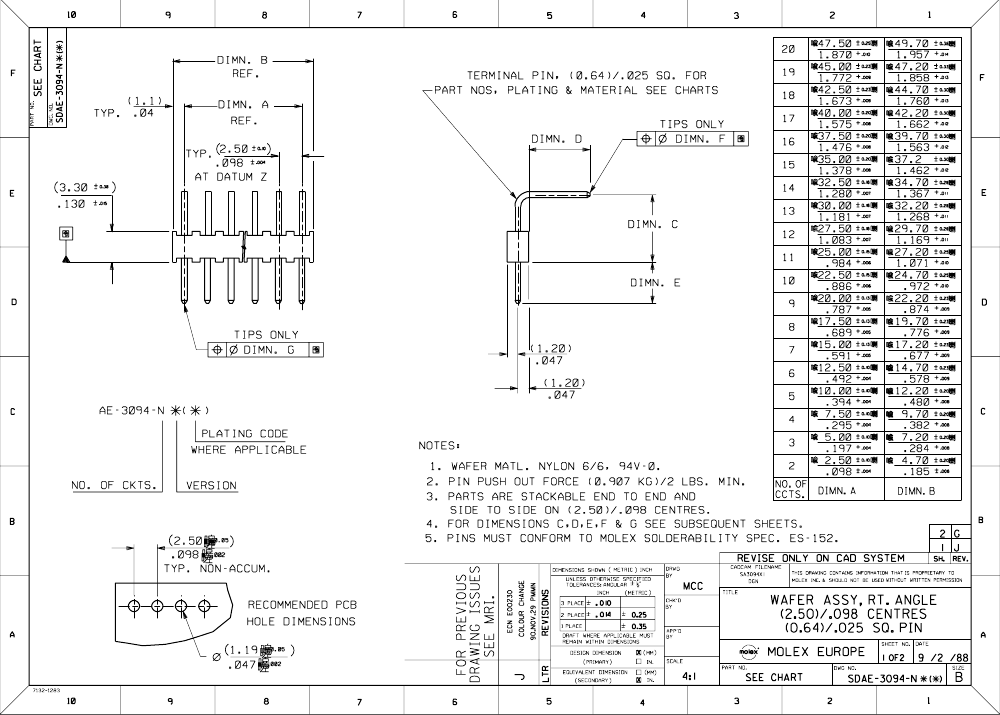

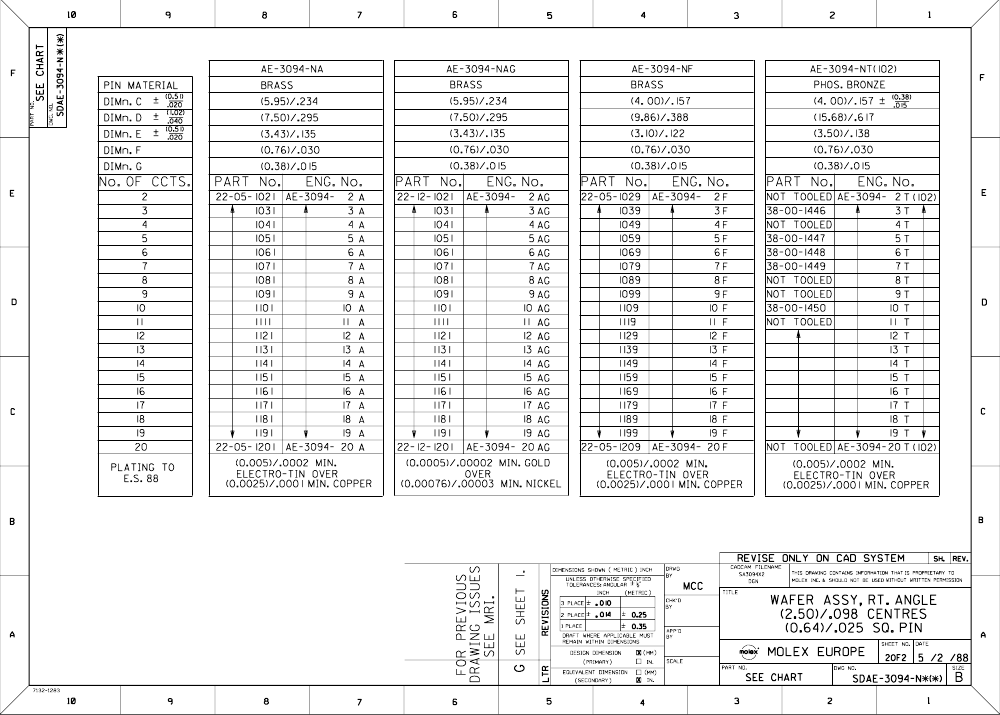

Drawing (PDF)
Product Specification PS-3094-001 (PDF)
Product Specification PS-3094-002 (PDF)
Product Specification PS-99020-0088 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
3094
Wire-to-Board
N/A
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
10
10
Natural (White)
94V-0
No
None
Brass
Tin
Tin
Nylon
1
Right Angle
0.134 In
3.40 mm
No
None
0.062 In
1.60 mm
Bag
0.098 In
2.50 mm
200
5
200
5
No
No
No
Yes
-40°C to +105°C
Through Hole
Search Parts in this Series
3094Series
Mates With
5051 , 7534
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
