36718-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 36718-0001

Preview

36718-0001: Description2.54mm; File Size153KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

36718-0001 Overview

2.54mm

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0367180001

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Receptacle, Style R, Female, Right Angle,Through

Hole, 0.60µm (24µ") Selective Gold (Au), PC Tail Length 3.00mm (.118"), 64 Circuits

Documents:

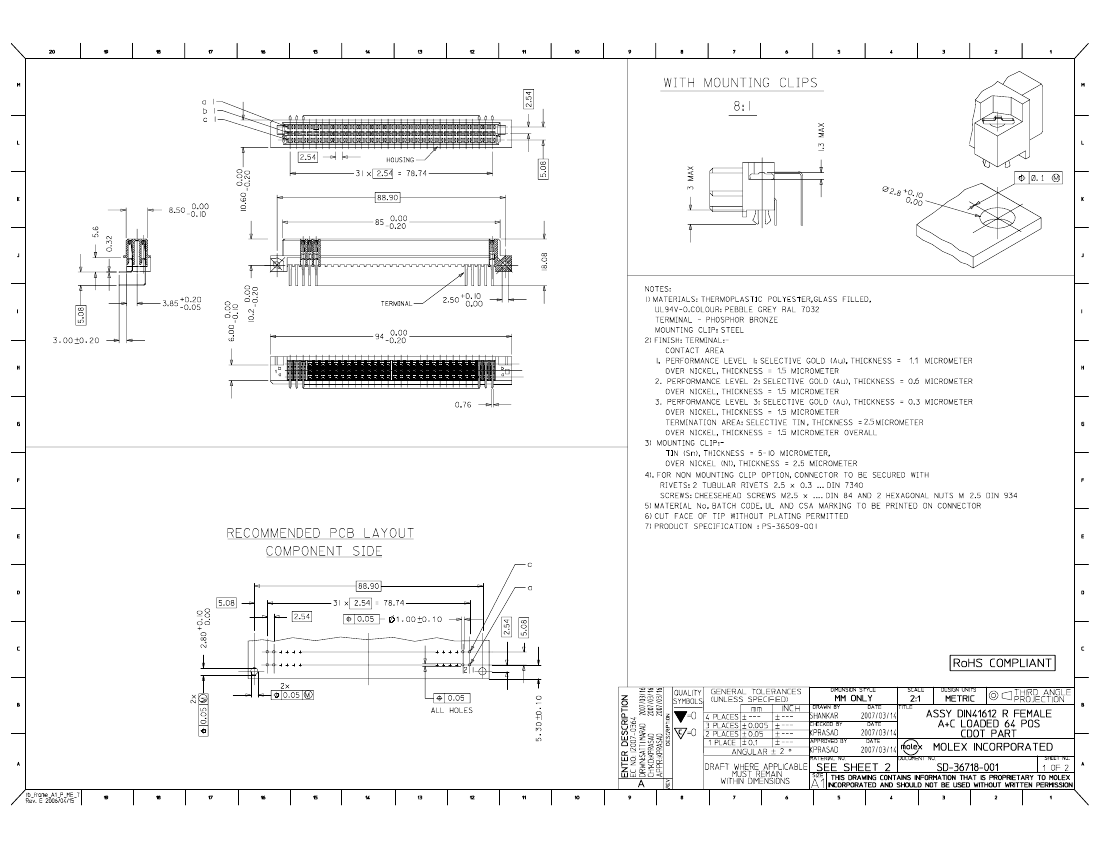

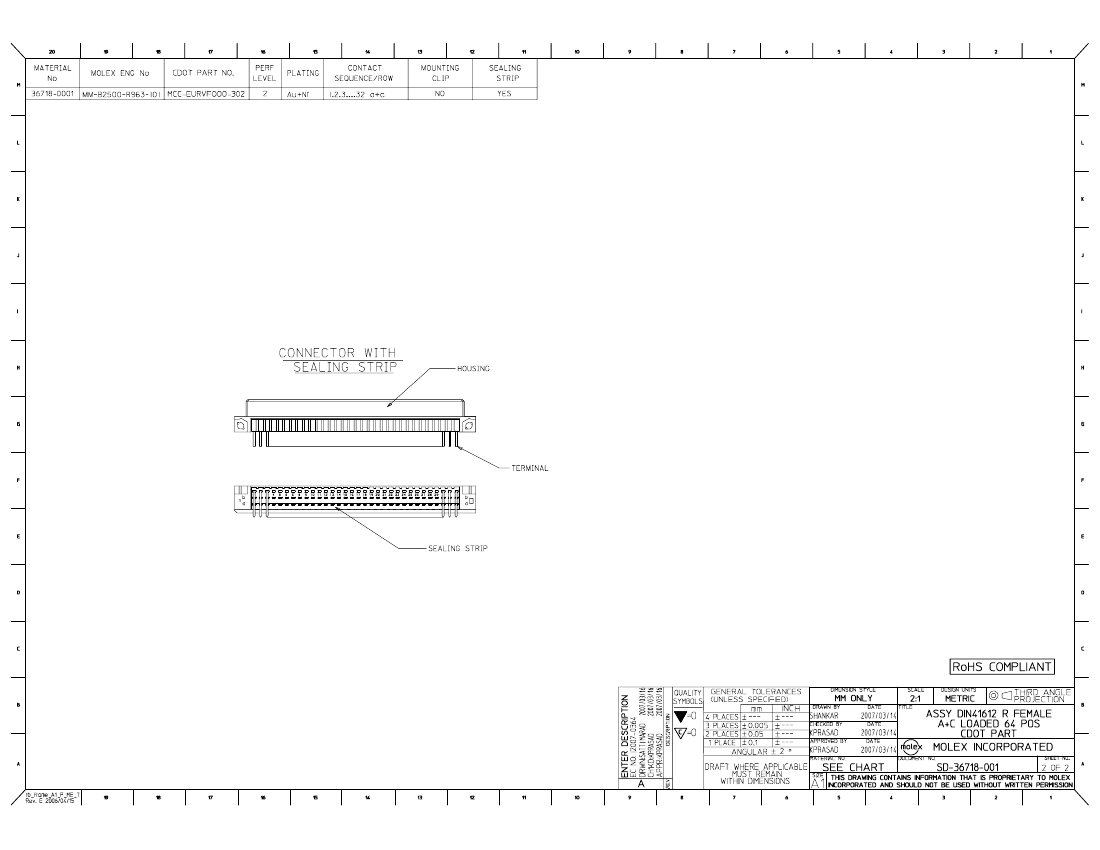

Drawing (PDF)

Product Specification PS-36509-001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36718

Daughtercard

No Mounting Clip. With Sealing Strip

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

1,2,3,...32; a+c

Gray

400

Yes

Phosphor Bronze

Gold

Tin

Polyester

Open Pin Field

Right Angle

0.118 In

3.00 mm

Yes

0.063 In

1.60 mm

Carton

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

Yes

-55°C to +125°C

Through Hole

Search Parts in this Series

36718Series

36718-0001 Related Products

	36718-0001	MM-B2500-R963-101	MMB2500R963-101	0367180001
Description	2.54mm	2.54mm	2.54mm	2.54mm
