395040007

Description
3.50mm
CategoryThe connector    terminals
File Size179KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

395040007 Overview

3.50mm

395040007 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresNYLON 66
Fastening methodSCREW
Manufacturer's serial number39504
Number of layers1
Rows1
Number of channels7
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Wire gauge16 AWG
Base Number Matches1
This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model

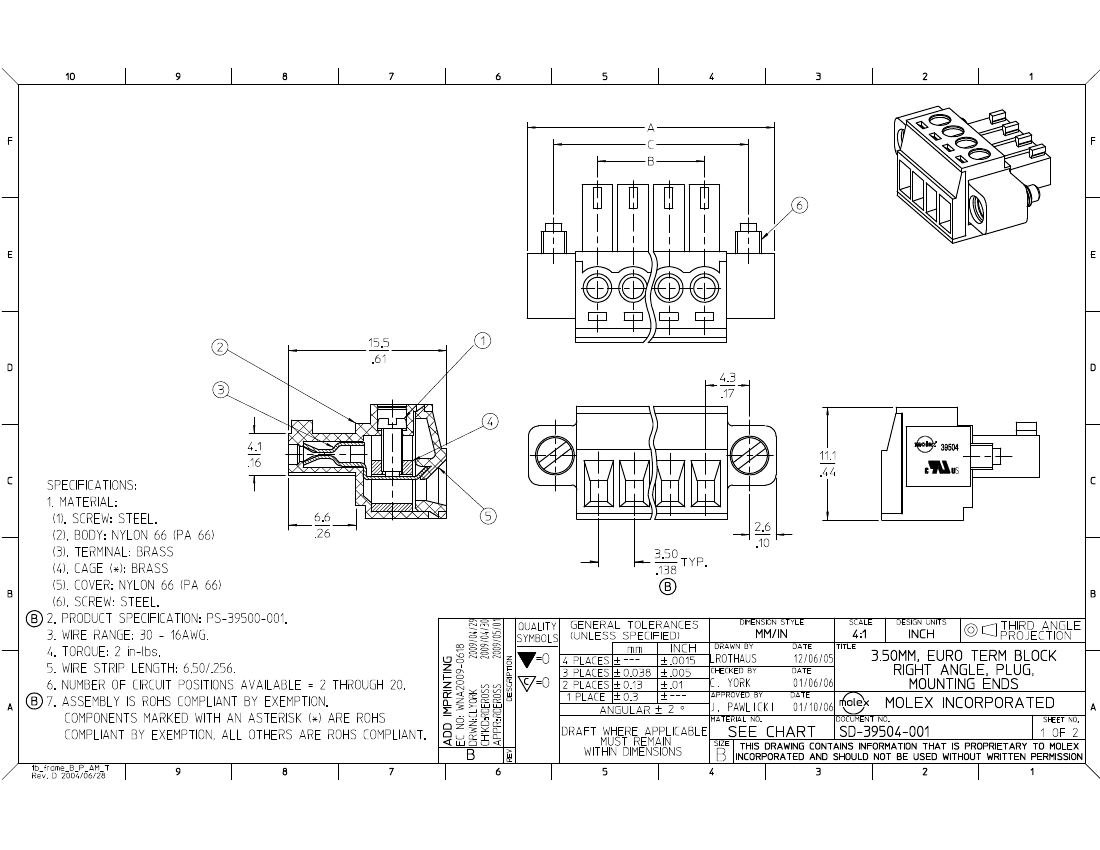

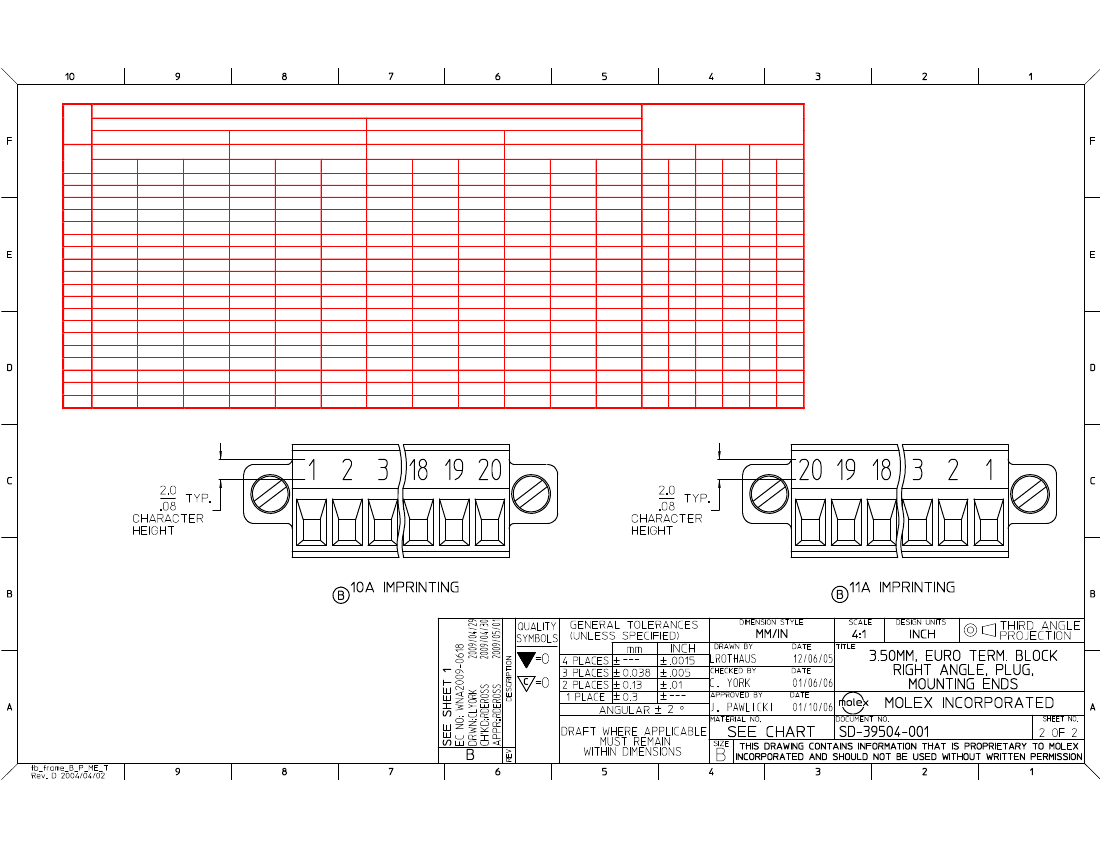

Drawing (PDF)
0395040007
Active

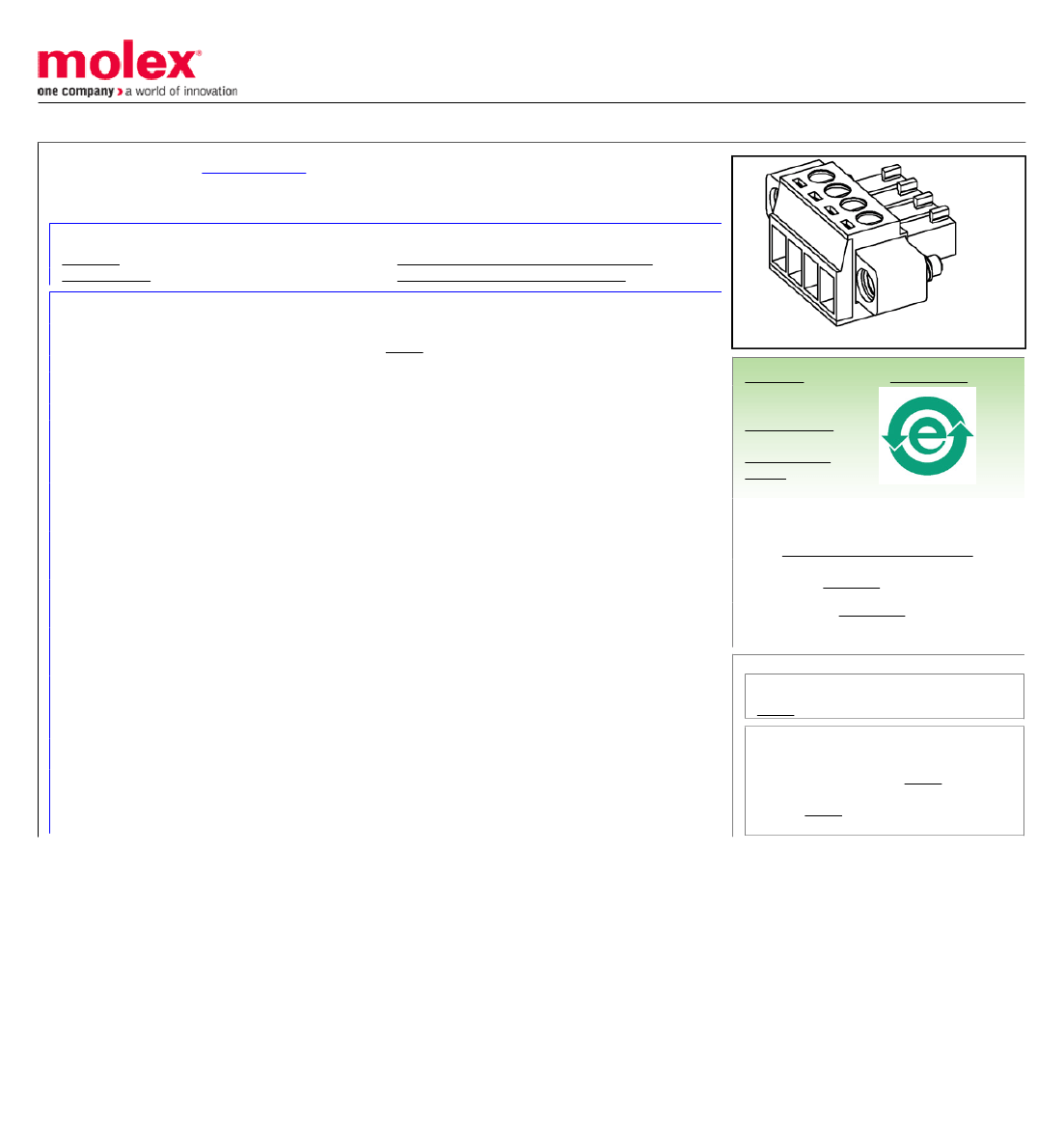

3.50mm (.138") Pitch Eurostyle™ Horizontal Plug, with Retention Screws, 7 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39504
Wire-to-Board
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
7
Vertical
Yes
1
Horizontal
No
0.138 In
3.50 mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24, 26, 28, 30
0.05 - 1.31
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Search Parts in this Series
39504Series
Mates With
Most 3.50mm (.138") Pitch Industry
Standard PCB Headers, 39505 Vertical
PCB Header with Threaded Retention
Inserts, 39506 Horizontal PCB Header with
Threaded Retention Inserts
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39504-001
This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
